Planet - KVM-210-08M - 17" 8-Port Combo VGA LCD KVM Switch, 1280 x 1024 video quality, Up to 64 Computers

Product Overview

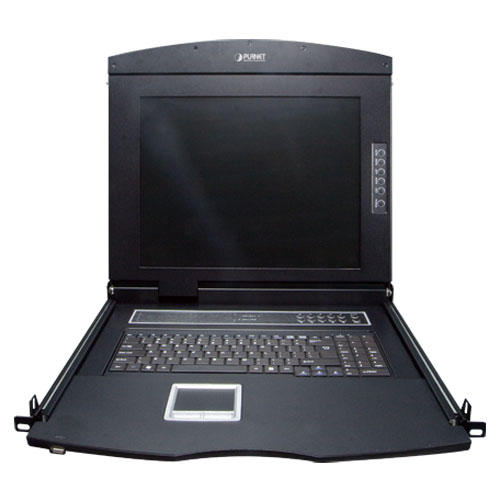

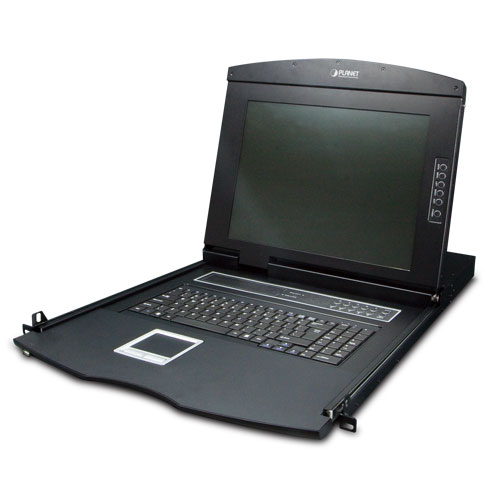

Planet KVM-210-08M is a 17" LCD KVM switch with integrated SXGA TFT-LCD monitor, 100-key keyboard, and touchpad in a 1U rackmount chassis. Supports 8 direct computer connections (expandable to 64 via cascading), 1280x1024 video resolution, and multiplatform compatibility (Windows, Linux, Mac, Sun).

Key Configuration

• • Ports: 8 × HDB-15 female (VGA) with PS/2 + USB Type A combo keyboard/mouse
• • Maximum capacity: 64 computers (8 units cascaded)
• • LCD: 17" SXGA TFT-LCD, 1280x1024 resolution, 1000:1 contrast, LED backlight
• • Console: 3 × USB 2.0 Type A hub ports
• • Dimensions: 445 × 611 × 44.5 mm (1U); weight: 17.52 kg

Key Features

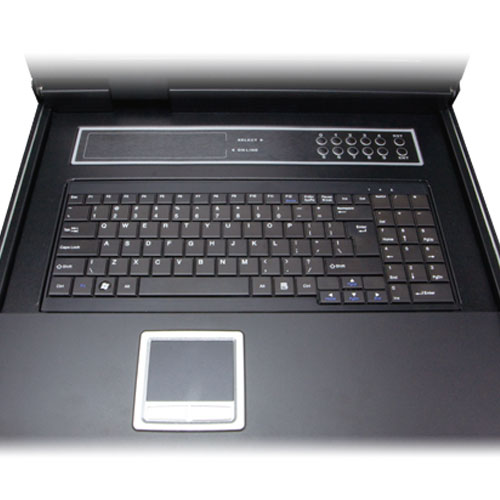

Integrated 17" LCD, 100-key keyboard with number pad, and touchpad with two function buttons. Port Select Panel with 10 keys, reset, enter, 8 LEDs, and segment display. Front panel lock prevents accidental damage. Auto scan (5-60 sec intervals). Hot pluggable – no power-down required. QVS (Quick View Setting) for selection by name or serial number. Two-layer password security. Multiplatform: Windows, Linux, Mac, Sun. USB hub for shared peripherals. Operating temperature: 0-50°C. Certifications: CE, FCC.

Technical Context

The KVM-210-08M consolidates rack management by integrating display, keyboard, and touchpad into 1U. Cascading enables centralized control of up to 64 servers. PS/2 + USB combo supports legacy and modern hardware. OSD, hotkeys, and front panel buttons provide flexible switching. The USB hub allows shared peripheral access across connected computers.

Installation Notes

1U rackmount: 445 × 611 × 44.5 mm, 17.52 kg. Power: 12V DC, 4A. Operating: 0-50°C, 0-80% RH. KVM cable kit required (sold separately). Cascading: up to 8 units for 64 computers. LCD: 17" SXGA, 1280x1024, LED backlight, 1000:1 contrast. Scan interval: 5-60 sec. Two-layer password protection.
