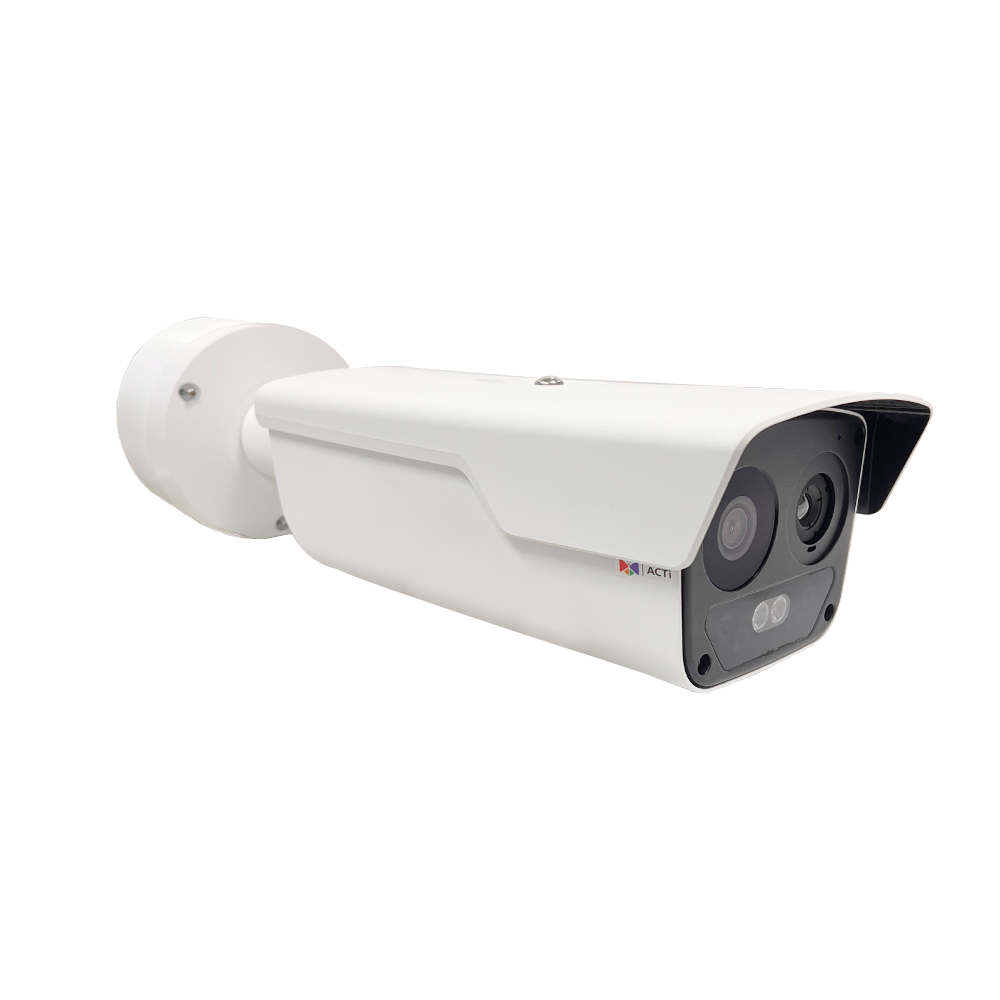

ACTi - A372 - 4MP f1.35mm Thermal Bullet with White LED 30m, WDR 120dB
Product Overview
This 4MP thermal bullet camera is designed for outdoor surveillance where thermal monitoring, low-light color imaging, and rugged environmental protection are required. It combines a f1.35mm thermal bullet configuration with a 1/1.8 in. sensor, 30m white LED illumination, 120 dB Superior WDR, and IP68/IK10-rated protection.
Key Configuration
4 Megapixel thermal bullet camera; f1.35mm lens with F1.0 aperture; 1/1.8 in. sensor; white LED range up to 30m; Superior WDR rated at 120 dB; NETD sensitivity of less than 55mK.
Key Features
• Thermal surveillance supports heat-based monitoring in difficult visibility conditions
• 0.0005 lux color minimum illumination supports ultra-low-light color imaging
• 30m white LED illumination provides visible-light support at night
• 120 dB Superior WDR helps balance high-contrast scenes
• IP68 and IK10 ratings support outdoor and vandal-resistant deployment
Technical Context
The camera uses thermal surveillance with NETD <55mK to detect heat differences in a monitored scene. Its large 1/1.8 in. sensor, F1.0 aperture, and 0.0005 lux color minimum illumination support strong low-light performance alongside thermal detection.
Installation Notes
The camera is built for outdoor use with IP68 weatherproof and IK10 vandal-proof ratings. Position the camera according to the required thermal monitoring area and visible-light coverage from the 30m white LED illumination.
| Product Profile | |
| Product Type | Thermal Bullet |
| Product Application | Thermal Surveillance |
| Application Environment | Outdoor |
| Maximum Resolution | 4MP |
| Image Sensor | Progressive Scan CMOS + Thermal sensor |
| Sensor Size | Optical: 1/1.8" |
| Effective Pixels | Thermal: 96(H) X 72(V) Optical: 2688(H) X 1520(V) |
| Pixel Interval | 12 μm |
| Spectral Range | 8-14 μm |
| Thermal Sensitivity | NETD <55mK at F1.0 |
| Spatial Resolution | 8.89 mrad |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.0005 lux at F1.0 (AGC on); B/W: 0 lux (Light on) |
| Mechanical IR Cut Filter | Yes |
| White LED | Yes |
| White LED Working Distance | 30m |
| S/N Ratio | 75 dB |
| Lens | |
| Number of Lenses | 2 Lenses |
| Focal Length | Fixed focal, f1.35mm (Thermal camera) Fixed focal, f4.0mm (Visual camera) |
| Aperture | Thermal camera: F1.0 Visual camera: F1.0 |
| Horizontal Viewing Angle | Thermal camera: 50° Visual camera: 94° |
| Vertical Viewing Angle | Thermal camera: 37.5° Visual camera: 50° |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | Visual camera (60Hz): 30 fps at 2688 x 1520; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 704 x 480; 30 fps at 352 x 240 Visual camera (50Hz): 25 fps at 2688 x 1520; 25 fps at 1920 x 1080; 25 fps at 1280 x 720; 25 fps at 704 x 576; 25 fps at 352 x 288 Thermal camera: 25 fps at 1280 x 720; 25 fps at 704 x 576; 25 fps at 640 x 512; 25 fps at 320 x 240 |
| Multi-Streaming | Simultaneous dual streams |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Built-in Analytics | People Detection, Vehicle Detection, Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection, Intrusion Detection (Forbidden Area Detection) |
| Network | |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Temperature Measurement | |
| Detection Range | |
| Triggering Analytics Event Notification | People (1.8 x 0.5m): 11m Vehicle (1.4 x 4.0m): 33m |
| Observation Range | Detection: People 56m; Vehicle 173m Recognition: People 14m; Vehicle 43m Identification: People 7m; Vehicle 22m People: 1.8 x 0.5m Vehicle: 1.4 x 4.0m |
| Integration | |
| ONVIF Compliant | Yes, Profile G |
| Interface | |
| Digital Input/Output | 2/2 |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 8.5 W (DC), 8.5 W (PoE) |
| Weight | 869.2g (1.92lb) |
| Dimensions (L x W x H) | 211.5mm x 105mm x 105mm (8.32" x 4.13" x 4.13") |
| Environmental Casing | Weatherproof (IP68), Vandal proof metal casing (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 3 years. |
| Bundled Accessories | Junction Box |
| Operating Temperature | -40°C ~ 65°C (-40°F ~ 149°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
