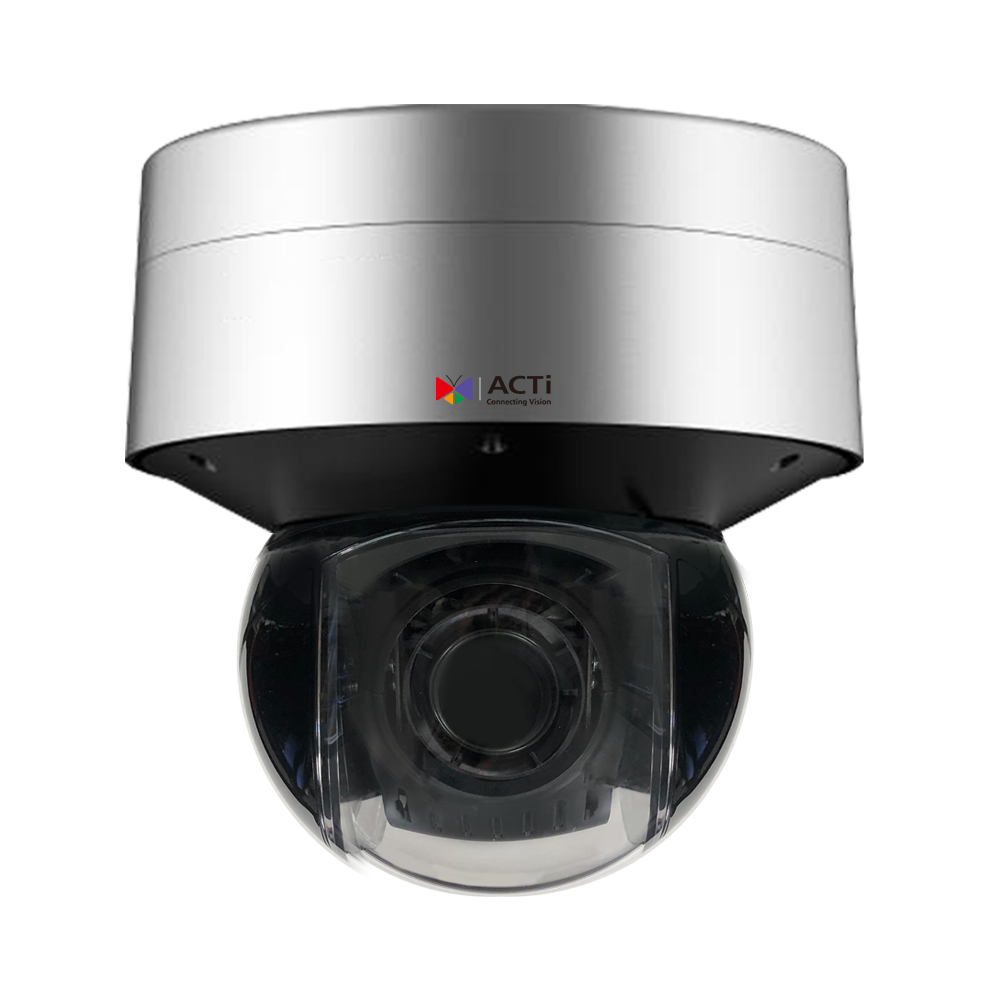

ACTi - A962 - 8MP Deep Learning AI LightGuard 36x Outdoor PTZ with IR LED 300m, WDR 140dB
Product Overview
This 8MP deep learning AI LightGuard outdoor PTZ camera is designed for long-range surveillance applications that require high-resolution imaging, fast frame rates, and wide-area coverage. It combines 36x zoom, 360-degree endless pan movement, 300m IR illumination, Automatic License Plate Recognition, 140 dB Extreme WDR, and built-in TPM 2.0 security for advanced monitoring in demanding outdoor environments.
Key Configuration
8 Megapixel outdoor PTZ camera; 36x zoom with Deep Learning AI and LightGuard; 1/1.8 in. sensor with F1.2 aperture; IR LED range up to 300m and 140 dB Extreme WDR; DORI range of 120 / 48.4 / 24 / 12m.
Key Features
• 8MP resolution and 36x zoom support detailed long-range surveillance
• Deep Learning AI and Automatic License Plate Recognition support advanced video analysis
• 300m IR illumination supports extended nighttime monitoring
• 360-degree endless PTZ movement supports wide-area coverage
• IP68 weatherproof, IK10 vandal-proof, NEMA 4X, and built-in TPM 2.0 security support demanding outdoor deployment
Technical Context
The camera combines an 8MP sensor, F1.2 aperture, 0.0005 lux minimum color illumination, and 140 dB Extreme WDR to support detailed imaging in challenging lighting conditions. Deep Learning AI, Automatic License Plate Recognition, high frame-rate operation, and TPM 2.0 security provide additional capability for high-security surveillance environments.
Installation Notes
The IP68, IK10, and NEMA 4X ratings support installation in exposed outdoor, public-facing, or harsh environmental locations. DORI planning values of 120 / 48.4 / 24 / 12m can be used to estimate detection, observation, recognition, and identification coverage during camera placement.
| Product Profile | |
| Product Type | PTZ |
| Product Application | ALPR |
| Application Environment | Outdoor |
| Maximum Resolution | 8MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.8 " |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| LightGuard | Yes |
| Minimum Illumination | Color: 0.0005 lux at F1.2 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 300m |
| Electronic Shutter | 1/30-1/30000 second (manual mode); 1/30-1/30000 second (auto mode) |
| S/N Ratio | 75 dB |
| Number of Traffic Lanes | 1 |
| Lens | |
| Focal Length | Zoom, f6.0-216mm |
| Aperture | F1.2 |
| Zoom Ratio | 36x optical zoom, 16x digital zoom |
| Zoom Speed | 4.5 second (wide to tele) |
| Focus | Auto focus |
| Horizontal Viewing Angle | 28.5° - 2.94° |
| Vertical Viewing Angle | 35° - 1.7° |
| PTZ | |
| Preset Panning / Tilting Speed | 0.1° - 550°/second, 0.1° - 300°/second |
| Panning Range | 360° endless |
| Tilting Range | -20°~90° (with E-flip) |
| PTZ Control | 300 preset points |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 120 fps at 1920 x 1080 60 fps at 3840 x 2160 60 fps at 3072 x 1728 60 fps at 2560 x 1440 60 fps at 1280 x 720 30 fps at 1920 x 1080 30 fps at 1280 x 960 30 fps at 1280 x 720 30 fps at 704 x 480 30 fps at 640 x 480 30 fps at 352 x 240 |
| High Frame Mode | Support |
| Bit Rate | 32Kbps - 16Mbps |
| Multi-Streaming | Simultaneous triple streams |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | Extreme WDR (140 dB) |
| Image Enhancement | Backlight compensation (BLC), Gyro-based Image Stabilizer, Defogging |
| Privacy Mask | 24 configurable regions |
| Built-in Analytics | Deep Learning: Automatic License Plate Recognition, Vehicle Detection, Face Detection, Face Tracking |
| Analytics | |
| Deep Learning AI | 2.0 |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711, G.722.1, G.726, PCM, AAC |
| Network | |
| Network Protocol & Service | IPv4, IPv6, ICMP, TCP, DHCP, UDP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ARP, UPnP, Bonjour, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Maximum User Connections | 32 |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control, Support Trusted Platform Module 2.0 (TPM 2.0) |
| Detection Range | |
| Observation Range | Detection: 120m Observation: 48.4m Recognition: 24m Identification: 12m |
| Event | |
| Event Trigger | Video motion detection, Tampering detection, IP address conflict, Intelligent event detection, External device through digital input |
| Integration | |
| ONVIF Compliant | Profile S, Profile G, Profile T, Profile M |
| Web Browser | IE 11, Google Chrome, Firefox, Apple Safari |
| Storage | |
| Blocklist/Allowlist | Up to 10000 records |
| Interface | |
| Serial Port | 1 x RS-485 |
| Analog Video Output | 1 x CVBS, BNC connector |
| Digital Input/Output | 7/2 |
| Installation | |
| Vehicle Capture Speed | Front-Installation: 180 km/h Side-Installation: 180 km/h |
| General | |
| Power Source | DC 36V, High PoE (IEEE802.3bt) |
| Power Consumption | 90 W (PoE), 90 W (DC) |
| Dimensions | (Ø x H): 214.95mm x 297.1mm (8.46" x 11.7") |
| Environmental Casing | Vandal proof (IK10), Weatherproof (IP68), NEMA 4X |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 3 years. |
| Heater | Yes |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Approvals | CE Class A, FCC Class A, IP68, IK10, NEMA 4X (NEMA 250-2018 Type 4X) |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
