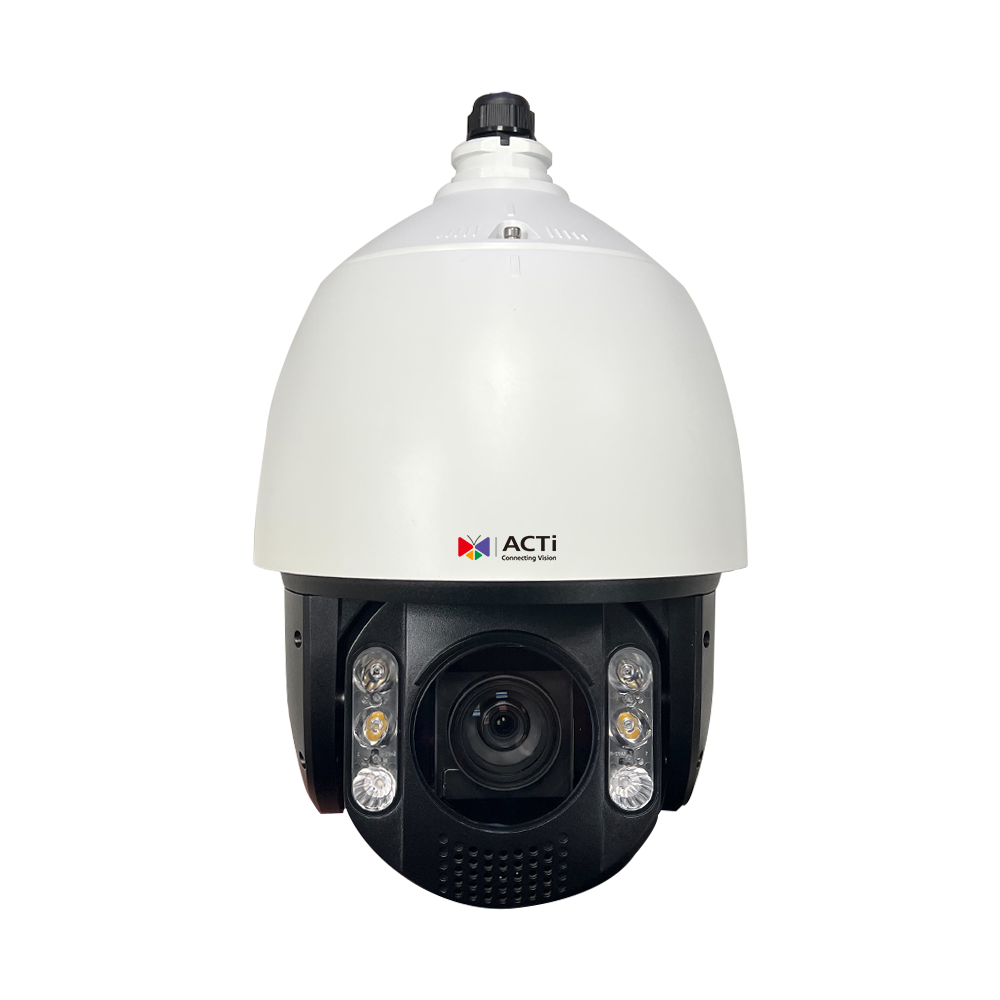

ACTi - A966 - 2MP Deep Learning AI ColorGuard 33x Outdoor PTZ with IR LED 250m, White LED 100m, Smart Dual Light, WDR 150dB
Product Overview
This 2MP deep learning AI ColorGuard outdoor PTZ camera is designed for long-range perimeter and wide-area surveillance. It combines 33x zoom, PTZ Auto Tracking, 360-degree endless movement, Smart Intrusion Protection, 250m IR illumination, 100m White LED lighting, Smart Dual Light, and 150 dB Extreme WDR for advanced monitoring in outdoor environments.
Key Configuration
2 Megapixel outdoor PTZ camera; 33x zoom with Deep Learning AI and ColorGuard; IR LED range up to 250m and White LED range up to 100m with Smart Dual Light; Extreme WDR rated at 150 dB; DORI range of 3060 / 1214.3 / 612 / 306m.
Key Features
• 33x zoom and 360-degree endless PTZ movement support long-range area coverage
• Deep Learning AI supports PTZ Auto Tracking and Smart Intrusion Protection
• ColorGuard and 0.002 lux minimum color illumination support low-light color visibility
• Smart Dual Light combines 250m IR and 100m White LED illumination for flexible nighttime monitoring
• IP66 weatherproof, IK10 vandal-proof, and Taiwan IoT Cybersecurity certified design supports secure outdoor deployment
Technical Context
The camera uses Deep Learning AI to support automated tracking and intrusion-focused event detection across large outdoor scenes. Its 150 dB Extreme WDR helps maintain detail in difficult lighting, while ColorGuard, Smart Dual Light, and long-range illumination improve visibility during nighttime or low-light surveillance.
Installation Notes
The IP66 weatherproof and IK10 vandal-proof ratings support installation in outdoor or public-facing locations. DORI planning values of 3060 / 1214.3 / 612 / 306m can be used to estimate detection, observation, recognition, and identification coverage during long-range camera placement.
| Product Profile | |
| Product Type | PTZ |
| Application Environment | Outdoor |
| Maximum Resolution | 2MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Effective Pixels | 2608(H) X 1964(V) (5.1 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| ColorGuard | Yes |
| Minimum Illumination | Color: 0.002 lux at F1.5 (AGC on); B/W: 1 lux at F1.5 (AGC on); 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 250m |
| White LED | Yes |
| White LED Working Distance | 100m |
| Smart Dual Light | Yes. Default IR; White Light can be enabled through configuration. |
| Electronic Shutter | 1-1/30000 second (manual mode); 1-1/30000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f5.9-194.7mm |
| Aperture | F1.5-F3.4 |
| Zoom Ratio | 33x optical zoom, 16x digital zoom |
| Zoom Speed | 5.6 second (wide to tele) |
| Zoom Application | Camera Installation, Manual Operation, Auto Zoom by Event |
| Iris | Auto iris |
| Horizontal Viewing Angle | 60.2° - 2.3° |
| Vertical Viewing Angle | 35.2° - 1.3° |
| PTZ | |
| Manual Panning / Tilting Speed | 0.1° - 160°/second, 0.1° - 120°/second |
| Preset Panning / Tilting Speed | 240°/second, 200°/second |
| Panning Range | 360° endless |
| Tilting Range | -15°~90° (with E-flip) |
| PTZ Control | 300 preset points |
| Video | |
| Compression | H.265 Adaptive Stream, H.264 Adaptive Stream, MJPEG |
| Maximum Frame Rate vs. Resolution | 60 fps at 1920 x 1080 (High Frame Mode) 30 fps at 1280 x 960 60 fps at 1280 x 720 (High Frame Mode) 30 fps at 704 x 480 30 fps at 640 x 480 30 fps at 352 x 240 |
| Multi-Streaming | Simultaneous quad streams |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | Extreme WDR (150 dB) |
| Image Enhancement | White Balance, Automatic exposure, Brightness, Contrast, Sharpness, Automatic gain control (AGC), Backlight compensation (BLC), Highlight compensation (HLC), Digital Image Stabilizer (DIS, EIS), Defogging |
| Privacy Mask | 24 configurable regions |
| Built-in Analytics | Smart Intrusion Protection (People Line Crossing Detection, People Intrusion Detection, People Enter Area Detection, People Exit Area Detection, Vehicle Line Crossing Detection, Vehicle Intrusion Detection, Vehicle Enter Area Detection, Vehicle Exit Area Detection), Missing Object Detection, Unattended Object Detection, Tampering Detection, PTZ Auto Tracking (, People Tracking, Vehicle Tracking) |
| Analytics | |
| Deep Learning AI | 1.0 |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711, G.726, PCM |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SSL/TLS, SNMP, IEEE 802.1X |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Maximum User Connections | 32 |
| Security | IP address filtering, HTTPS encryption, TLS 1.2 encrypted communication, Password protected user level, IEEE 802.1X network access control |
| Detection Range | |
| Observation Range | Detection: 3060m Observation: 1214.3m Recognition: 612m Identification: 306m |
| Integration | |
| ONVIF Compliant | Profile S, Profile G, Profile T, Profile M |
| Web Browser | IE 11, Google Chrome, Firefox, Apple Safari |
| Interface | |
| Audio Interface | Built-in Speaker, 1/1, Terminal block |
| Digital Input/Output | 2/1 |
| Operating Button | Reset Button |
| Installation | |
| Installation Tool | Built-in Pixel Counter |
| General | |
| Power Source | High PoE (IEEE802.3bt), DC 36V |
| Power Consumption | 42 W (PoE, heater and IR on) |
| Weight | 5500g (12.13lb) |
| Dimensions | (Ø x H): Outdoor: 220mm x 360.2mm (8.7" x 14.2") |
| Environmental Casing | Vandal proof (IK10), Weatherproof (IP66) |
| Bundled Accessories | Power Adapter (DC 36V) |
| Heater | Yes |
| Operating Temperature | -30°C ~ 65°C (-22°F ~ 149°F) |
| Operating Humidity | ≤90% RH, non-condensing |
| Surge Protection | 6KV |
| Approvals | CE, FCC, BSMI, IP66, IK10, Taiwan IoT Cybersecurity Certification Level 1 (CNS-16120) |
| Color | White |
| Real-time Clock (RTC) | Yes |
