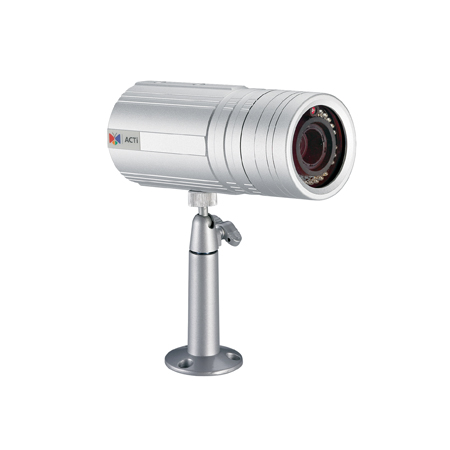

ACTi - ACM-1511 - 0.31MP with IR LED 30m (0 lux, 30IRE, Max Exposure Gain)
Product Overview
The ACTi ACM-1511 is a 0.31MP surveillance camera designed for legacy monitoring applications requiring adjustable lens coverage and infrared night visibility. It features a 3.3-12mm vari-focal lens and IR LED illumination up to 30m for low-light surveillance.
Key Configuration
Discontinued 0.31 Megapixel camera; 3.3-12mm vari-focal lens; IR LED range up to 30m; 0 lux / 30 IRE / max exposure gain reference; designed for legacy surveillance monitoring applications.
Key Features
• 0.31MP resolution supports legacy surveillance imaging
• 3.3-12mm vari-focal lens allows adjustable scene coverage
• IR LED illumination supports nighttime visibility up to 30m
• Low-light operation reference includes 0 lux at 30 IRE with max exposure gain
• Discontinued model information supports replacement or legacy system reference
Technical Context
The camera uses a vari-focal lens to allow field-of-view adjustment during installation. Its IR LED illumination supports image capture in low-light or nighttime conditions, including operation under the provided 0 lux reference condition.
Installation Notes
Because the ACM-1511 is discontinued, availability and replacement planning should be confirmed before use in new projects. The 3.3-12mm vari-focal lens should be adjusted during setup to match the required monitoring area.
| Product Profile | |
| Product Type | Fixed Bullet |
| Maximum Resolution | 0.31MP |
| Image Sensor | Progressive Scan CMOS |
| Day / Night | Yes |
| Minimum Illumination | Color: 0.5 lux at F1.0 (30 IRE, Max. AGC); B/W: 0 (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | IR LED x 24 (850 nm) |
| IR Working Distance | 30m (0 lux, 30IRE, Max Exposure Gain) |
| Color to B/W Switch | CDS sensor based switch |
| Electronic Shutter | 1/30-1/1000 second (manual mode, 60 Hz), 1/5-1/15000 second (auto mode), 1/25-1/1000 second (manual mode, 50 Hz) |
| S/N Ratio | 44 dB |
| Lens | |
| Focal Length | Vari-focal, f3.3-12mm |
| Aperture | F1.6 |
| Iris | Fixed iris |
| Focus | Manual focus |
| Video | |
| Bit Rate | 28Kbps - 3Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Multiple streams based on a single configuration |
| Image Orientation | Flip, Mirror |
| Image Enhancement | Automatic exposure, Automatic gain control (AGC), Flickerless, Sharpness, Contrast, Saturation, Brightness, White Balance |
| Privacy Mask | 1 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Face Detection, Object Based Motion Detection, Tamper, People Counting, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Crowd Detection, Appear in Area, Unattended Object Detection, Direction Detection, Vehicle Counting, Heat Map, Automatic License Plate Recognition, Vehicle Speed Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, Mono, PCM, 16 bit encoding |
| Network | |
| Network Protocol & Service | IP, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, ToS, SNMP, IEEE 802.1X |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event | |
| Event Trigger | Video motion detection (3 regions) |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| Interface | |
| Audio Interface | 3.5mm Phone Jack |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 4.8 W (PoE, IR on), 3.72 W (DC, IR on) |
| Weight | 505g (1.113lb) |
| Dimensions | (Ø x L): 68mm x 130.6mm (2.68" x 5.14") |
| Mount Type | Bracket, Pole Mount, Corner Mount |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Operating Humidity | 10% - 85% RH, non-condensing |
| Approvals | Camera: CE, FCC, Adapter: CE, TUV-GS, UL, RCM, CCC |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
