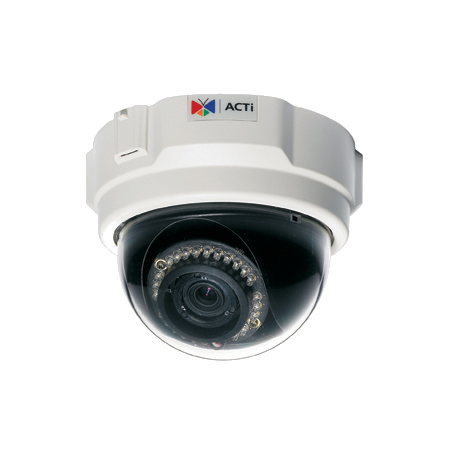

ACTi - ACM-3511 - Megapixel IP IR D/N PoE Fixed Dome with
Product Overview
The ACTi ACM-3511 is a fixed dome camera designed for legacy network surveillance applications. It supports configurable video streaming and two-way audio with line-in and line-out connectivity for monitoring and communication use.
Key Configuration
Discontinued fixed dome camera; video bit rate from 28Kbps to 3Mbps; constant and variable bit rate modes; simultaneous dual streams based on two configurations; two-way audio with line-in and line-out support.
Key Features
• Fixed dome form factor supports surveillance placement in legacy systems
• Configurable bit rate range supports video bandwidth adjustment
• Constant and variable bit rate modes provide compression flexibility
• Simultaneous dual streaming supports separate viewing or recording profiles
• Two-way audio with line-in and line-out supports audio monitoring and communication
Technical Context
The camera supports video bit rate control from 28Kbps to 3Mbps and can operate in constant or variable bit rate mode. Dual streaming allows two separate stream configurations to run at the same time, while PCM audio supports 8 kHz, 16-bit mono encoding.
Installation Notes
Because the ACM-3511 is discontinued, availability and replacement planning should be confirmed before use in new projects. Audio integration should account for the available 2-way, line-in, and line-out connections.
| Product Profile | |
| Product Type | Fixed Dome |
| Video | |
| Bit Rate | 28Kbps - 3Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, 16 bit encoding, Mono, PCM |
| Network | |
| Network Protocol & Service | IP, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, ToS, SNMP, IEEE 802.1X |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Event | |
| Event Trigger | Video motion detection (3 regions), External device through digital input |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Interface | |
| Audio Interface | Terminal block |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 6.8 W (PoE) |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
