ACTi - ACM-5001 - 0.31MP f4.2mm Fixed Box with

Product Overview

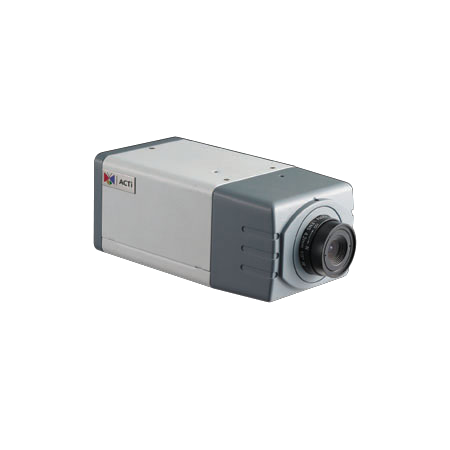

The ACTi ACM-5001 is a 0.31MP fixed box camera designed for legacy indoor and outdoor surveillance applications. It uses a progressive scan CMOS sensor, a fixed 4.2mm lens, and configurable color-to-black-and-white switching for standard monitoring use.

Key Configuration

Discontinued fixed box camera; indoor/outdoor application environment; 0.31MP maximum resolution with progressive scan CMOS image sensor; 1/3 in. sensor size; fixed 4.2mm lens.

Key Features

• 0.31MP resolution supports legacy surveillance imaging
• Progressive scan CMOS sensor supports digital video capture
• Fixed 4.2mm lens provides consistent scene coverage
• DSP-based configurable color to B/W switch supports image mode control
• Fixed box form factor supports flexible enclosure or mount-based installation

Technical Context

The camera uses a 1/3 in. progressive scan CMOS sensor with standard low-light sensitivity. Minimum illumination is listed as color 0.5 lux at F1.0 and black-and-white 0.5 lux at F1.0, while the electronic shutter supports 1/30-1/1000 second in manual mode at 60 Hz and 1/5-1/15000 second in auto mode at 60 Hz.

Installation Notes

Because the ACM-5001 is discontinued, availability and replacement planning should be confirmed before use in new projects. It is listed for indoor/outdoor application environments and does not include day/night operation or a mechanical IR cut filter.
