ACTi - ACM-5601 - 0.31 Megapixel, f4.2mm
Product Overview

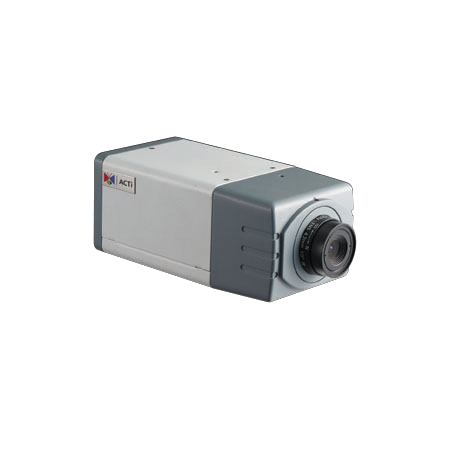

The ACTi ACM-5601 is a 0.31MP fixed box camera designed for legacy video surveillance applications. It features a progressive scan CMOS image sensor, a 1/3 in. sensor format, and a fixed f4.2mm lens configuration.
Key Configuration
Discontinued fixed box camera; 0.31MP maximum resolution; progressive scan CMOS image sensor; 1/3 in. sensor size; f4.2mm lens; no mechanical IR cut filter; DSP-based configurable color to B/W switching.
Key Features
• 0.31MP fixed box camera format for legacy surveillance systems
• Progressive scan CMOS sensor supports stable image capture
• 1/3 in. sensor size with f4.2mm lens configuration
• Minimum illumination listed at 0.5 lux in color and B/W modes
• Configurable DSP-based color to B/W switching
• Electronic shutter supports manual and automatic exposure ranges
• 44 dB signal-to-noise ratio
Technical Context
The camera uses a progressive scan CMOS sensor with 0.31MP maximum resolution. Minimum illumination is specified as color 0.5 lux at F1.0 and B/W 0.5 lux at F1.0, both at 30 IRE and 2400 K. Electronic shutter ranges include 1/30–1/1000 second in manual mode and 1/5–1/15000 second in automatic mode at 60 Hz.
Installation Notes
Because the ACTi ACM-5601 is discontinued, availability and replacement planning should be confirmed before use in new projects. It is best suited for maintaining or replacing components in existing legacy ACTi camera installations.
| Product Profile | |
| Product Type | Fixed Box |
| Maximum Resolution | 0.31MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | No |
| Minimum Illumination | Color: 0.5 lux at F1.0 (30 IRE, 2400 K); B/W: 0.5 lux at F1.0 (30 IRE, 2400 K) |
| Mechanical IR Cut Filter | No |
| Color to B/W Switch | DSP based switch, configurable |
| Electronic Shutter | 1/30-1/1000 second (manual mode, 60 Hz); 1/5-1/15000 second (auto mode, 60 Hz) |
| S/N Ratio | 44 dB |
| Lens | |
| Focal Length | Fixed focal, f4.2mm |
| Aperture | F1.8 |
| Iris | Fixed iris |
| Focus | Manual focus |
| Lens Mount | C Mount (interchangeable lens) CS Mount (interchangeable lens) |
| Video | |
| Compression | MPEG-4 SP, MJPEG |
| Maximum Frame Rate vs. Resolution | 8 fps at 1280 x 1024 10 fps at 1280 x 720 30 fps at 640 x 480 30 fps at 320 x 240 30 fps at 160 x 112 |
| Bit Rate | 28Kbps - 3Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Multiple streams based on a single configuration |
| Image Enhancement | White Balance, Brightness, Saturation, Contrast, Sharpness, Automatic gain control (AGC), Automatic exposure, Flickerless |
| Privacy Mask | 1 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Face Detection, Object Based Motion Detection, People Counting, Object Line Crossing Detection, Object Enter Area Detection, Exit Area, Appear in Area, Missing Object Detection, Unattended Object Detection, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, Automatic License Plate Recognition, Vehicle Speed Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, Mono, 16 bit encoding, PCM |
| Network | |
| Network Protocol & Service | IP, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, ToS, SNMP, IEEE 802.1X |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event | |
| Event Trigger | Video motion detection (3 regions), External device through digital input |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| Interface | |
| Audio Interface | Terminal block |
| Digital Input/Output | 1/1 (Terminal block) |
| General | |
| Power Source | PoE Class 3 (IEEE802.3af), DC 12V |
| Power Consumption | 4.3 W (PoE), 3.3 W (DC) |
| Weight | 400g (0.882lb) |
| Dimensions | (W x H x D): 67mm x 55mm x 129.5mm (2.64" x 2.17" x 5.10") |
| Mount Type | Bracket |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Operating Humidity | 10% - 85% RH, non-condensing |
| Approvals | Camera: CE, FCC, Adapter: CE, TUV-GS, UL, RCM, CCC |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
