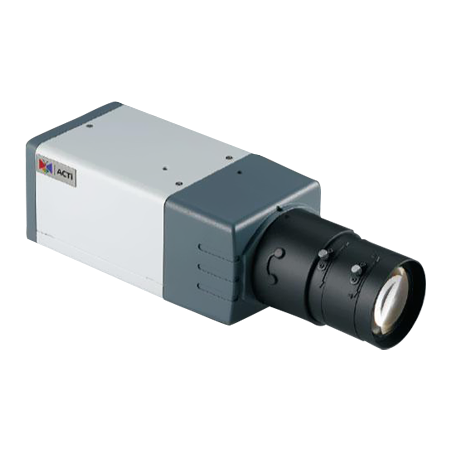

ACTi - ACM-5711 - 0.35MP Fixed Box with (Lens not included)
Product Overview
The ACTi ACM-5711 is a 0.35MP fixed box camera designed for legacy indoor and outdoor surveillance applications. It uses a CCD image sensor with a 1/3 in. sensor format and supports a vari-focal lens configuration, with the lens not included.
Key Configuration
Discontinued fixed box camera; indoor/outdoor application environment; 0.35MP maximum resolution; CCD image sensor; 1/3 in. sensor size; vari-focal lens configuration with lens not included; standard low light sensitivity; no mechanical IR cut filter.
Key Features
• 0.35MP fixed box camera format for legacy surveillance systems
• CCD image sensor with 1/3 in. sensor size
• Designed for indoor and outdoor application environments
• Vari-focal lens configuration with lens not included
• Minimum illumination listed as color 0.05 lux at F1.0
• Electronic shutter supports manual and automatic exposure ranges
• 420 TVL horizontal resolution
Technical Context
The camera uses a CCD sensor with 0.35MP maximum resolution and 1/3 in. sensor size. Minimum illumination is specified as color 0.05 lux at F1.0, 30 IRE, with maximum AGC. Electronic shutter ranges include 1/60 second in manual mode and 1/60-1/120000 second in automatic mode at 60 Hz.
Installation Notes
Because the ACTi ACM-5711 is discontinued, availability and replacement planning should be confirmed before use in new projects. The lens is not included, so compatible lens selection is required when servicing or configuring this camera.
| Product Profile | |
| Product Type | Fixed Box |
| Application Environment | Indoor/Outdoor |
| Maximum Resolution | 0.35MP |
| Image Sensor | CCD |
| Sensor Size | 1/3 " |
| Day / Night | No |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.05 lux at F1.0 (30 IRE, Max. AGC) |
| Mechanical IR Cut Filter | No |
| Electronic Shutter | 1/60 second (manual mode, 60 Hz), 1/60-1/120000 second (auto mode, 60 Hz) |
| Horizontal Resolution (TV Lines) | 420 TVL |
| Lens | |
| Focal Length | Vari-focal lens available. The lens needs to be purchased separately. |
| Video | |
| Compression | MPEG-4 SP, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 720 x 480 25 fps at 720 x 576 |
| Bit Rate | 28Kbps - 3Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Privacy Mask | 1 configurable regions |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, 16 bit encoding, Mono, PCM |
| Network | |
| Network Protocol & Service | IP, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, ToS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Event | |
| Event Trigger | Video motion detection (3 regions), External device through digital input |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| Web Browser | IE 6.0 or newer |
| Interface | |
| Audio Interface | 3.5mm Phone Jack |
| Digital Input/Output | 1/1 (Terminal block) |
| General | |
| Power Source | PoE Class 3 (IEEE802.3af) |
| Power Consumption | 3.3 W (DC), 4.3 W (PoE) |
| Dimensions | (W x H x D): 67mm x 55mm x 128.5mm (2.64" x 2.17" x 5.10") |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Approvals | CE, FCC |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
