ACTi - ACM-7511 - 0.35 Megapixel, f3.7-12mm Vari-focal
Product Overview

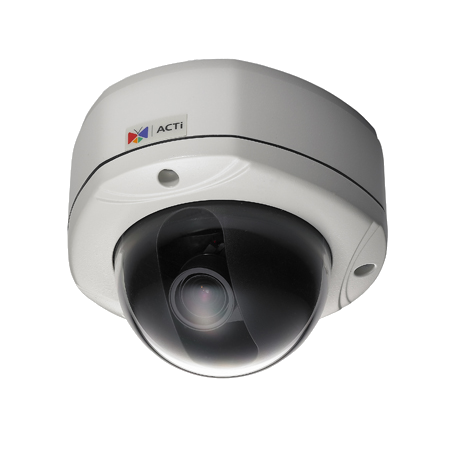

The ACTi ACM-7511 is a 0.35MP fixed dome camera designed for legacy outdoor surveillance applications. It uses a CCD image sensor, day/night operation, a 3.7-12mm vari-focal lens, and IP66 weatherproof protection.
Key Configuration
Discontinued fixed dome camera; outdoor application environment; 0.35MP maximum resolution; CCD image sensor; 1/3 in. sensor size; 3.7-12mm vari-focal lens; day/night support; IP66 weatherproof rating.
Key Features
• 0.35MP fixed dome camera format for legacy outdoor surveillance
• CCD image sensor with 1/3 in. sensor size
• 3.7-12mm vari-focal lens supports adjustable viewing coverage
• Day/night operation with mechanical IR cut filter
• Minimum illumination listed at 0.15 lux in color and 0.05 lux in B/W mode
• DSP-based configurable color to B/W switching
• IP66 weatherproof protection for outdoor installation
Technical Context
The camera uses a CCD sensor with 0.35MP maximum resolution and 700-1100nm IR sensitivity range. Minimum illumination is specified as color 0.15 lux at F1.2 and B/W 0.05 lux at F1.2, both at 30 IRE with maximum AGC. Electronic shutter ranges include 1/60-1/10000 second in manual mode and 1/60-1/100000 second in automatic mode at 60 Hz.
Installation Notes
Because the ACTi ACM-7511 is discontinued, availability and replacement planning should be confirmed before use in new projects. Its IP66 weatherproof rating supports outdoor placement when installed with appropriate sealing, cabling, and mounting practices.
| Product Profile | |
| Product Type | Fixed Dome |
| Application Environment | Outdoor |
| Maximum Resolution | 0.35MP |
| Image Sensor | CCD |
| Sensor Size | 1/3 " |
| Day / Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.15 lux at F1.2 (30 IRE, Max. AGC); B/W: 0.05 lux at F1.2 (30 IRE, Max. AGC) |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| Color to B/W Switch | DSP based switch, configurable |
| Electronic Shutter | 1/60-1/10000 second (manual mode, 60 Hz); 1/60-1/100000 second (auto mode, 60 Hz) |
| Horizontal Resolution (TV Lines) | 540 TVL |
| S/N Ratio | 50 dB |
| Lens | |
| Focal Length | Vari-focal, f3.7-12mm |
| Aperture | F1.4-F2.8 |
| Iris | DC iris |
| Focus | Manual focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 78.1° - 23.3° |
| Viewing Angle Adjustment | Pan: 0°-350°, Tilt: 0°-180°, Rotation: 0°-350° |
| Video | |
| Compression | MPEG-4 SP, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 720 x 480 30 fps at 640 x 480 30 fps at 352 x 240 30 fps at 160 x 112 25 fps at 720 x 576 25 fps at 640 x 480 25 fps at 352 x 288 25 fps at 176 x 144 |
| Bit Rate | 28Kbps - 3Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Single stream |
| Digital Noise Reduction | No |
| Image Orientation | Mirror |
| Image Enhancement | White Balance, Brightness, Saturation, Contrast, Automatic gain control (AGC), Automatic exposure, Flickerless |
| Privacy Mask | 1 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Exit Area, Appear in Area, Missing Object Detection, Direction Detection, Vehicle Speed Detection, Vehicle Counting, Crowd Detection, Heat Map, Automatic License Plate Recognition, Unattended Object Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, Mono, PCM, 16 bit encoding |
| Network | |
| Network Protocol & Service | IP, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, ToS, SNMP, IEEE 802.1X |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event | |
| Event Trigger | Video motion detection (3 regions), External device through digital input |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| Web Browser | IE 6.0 or newer |
| Interface | |
| Audio Interface | Terminal block |
| Analog Video Output | 1 x CVBS, BNC connector |
| Digital Input/Output | 1/1 (Terminal block) |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 8.16 W (PoE) |
| Weight | 1040g (2.293lb) |
| Dimensions | (Ø x H): 151.69mm x 114.9mm (6" x 4.5") |
| Environmental Casing | Weatherproof (IP66), Vandal proof up to 659.23 KgF (1453.35 lbF) |
| Mount Type | Surface, Pendant, Wall Mount, Corner Mount, Pole Mount, Flush |
| Fan | Yes |
| Heater | Yes |
| Starting Temperature | -30°C ~ 50°C (-22°F ~ 122°F) for DC 12V, -5°C ~ 50°C (7°F ~ 122°F) for PoE |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F) for DC 12V, -5°C ~ 50°C (7°F ~ 122°F) for PoE |
| Approvals | CE, FCC, IP66, UL (for optional PoE injector and power adapter) |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
