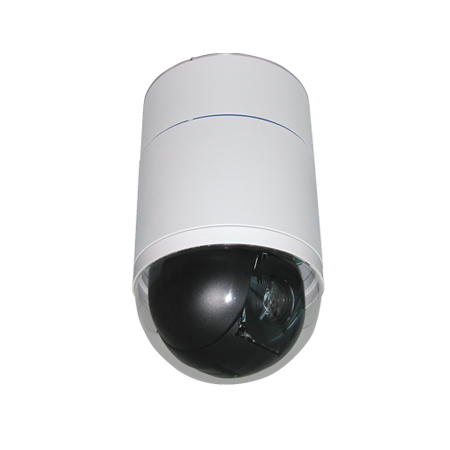

ACTi - CAM-6510 - 0.35MP 18x Indoor PTZ with
Product Overview
The ACTi CAM-6510 is a 0.35MP indoor PTZ camera designed for legacy surveillance applications. It features an 18x zoom PTZ configuration, 360-degree endless rotation, a CCD image sensor, and day/night operation with a mechanical IR cut filter.
Key Configuration
Discontinued indoor PTZ camera; 0.35MP maximum resolution; CCD image sensor; 1/4 in. sensor size; 18x zoom; 360-degree endless PTZ operation; day/night support; 480 TVL horizontal resolution; 50 dB S/N ratio.
Key Features
• 0.35MP indoor PTZ camera for legacy surveillance systems
• 18x zoom supports closer viewing of distant subjects
• 360-degree endless rotation supports continuous PTZ coverage
• CCD image sensor with 1/4 in. sensor size
• Day/night operation with mechanical IR cut filter
• Minimum illumination listed at 0.7 lux in color and 0.01 lux in B/W mode
• 480 TVL horizontal resolution with 50 dB S/N ratio
Technical Context
The camera uses a 1/4 in. CCD sensor with effective pixels listed as 768(H) x 494(V) for NTSC and 752(H) x 582(V) for PAL. Minimum illumination is specified as color 0.7 lux at F1.4 and B/W 0.01 lux at F1.4, both at 30 IRE and 2400 K. Electronic shutter is listed as 1/1-1/10000 second in automatic mode at 60 Hz.
Installation Notes
Because the ACTi CAM-6510 is discontinued, availability and replacement planning should be confirmed before use in new projects. It is intended for indoor installation and is best suited for maintaining existing legacy ACTi PTZ deployments.
| Product Profile | |
| Product Type | PTZ |
| Application Environment | Indoor |
| Maximum Resolution | 0.35MP |
| Image Sensor | CCD |
| Sensor Size | 1/4 " |
| Effective Pixels | 768(H) X 494(V) (NTSC) 752(H) X 582(V) (PAL) |
| Day / Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.7 lux at F1.4 (30 IRE, 2400 K); B/W: 0.01 lux at F1.4 (30 IRE, 2400 K) |
| Mechanical IR Cut Filter | Yes |
| Electronic Shutter | 1/1-1/10000 second (auto mode, 60 Hz) |
| Horizontal Resolution (TV Lines) | 480 TVL |
| S/N Ratio | 50 dB |
| Lens | |
| Focal Length | Zoom, f4.1-73.8mm |
| Aperture | F1.4-F3.0 |
| Zoom Ratio | 18x optical zoom |
| PTZ | |
| Manual Panning / Tilting Speed | 1° - 90°/second |
| Preset Panning / Tilting Speed | 5° - 400°/second |
| Panning Range | 360° endless |
| Tilting Range | -10°~100° |
| Preset Accuracy (Panning/Tilting) | 0.225°/0.45° |
| Absolute Position | Yes |
| Video | |
| Compression | MPEG-4 |
| Bit Rate | 28Kbps - 3Mbps |
| Bit Rate Mode | Constant |
| Multi-Streaming | Single stream based on a single configuration |
| Privacy Mask | 24 configurable regions |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, Mono, PCM |
| Network | |
| Network Protocol & Service | IP, TCP, UDP, DHCP, PPPoE, HTTP, DNS, DDNS, NTP, RTP, RTSP, IGMP, ICMP, ARP, ToS |
| Ethernet Port | 1 x RJ-45 connector |
| Security | Password protected user level |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| Web Browser | IE 6.0 or newer |
| Interface | |
| Analog Video Output | 1 x CVBS, BNC connector |
| Digital Input/Output | 8/1 (Terminal block) |
| General | |
| Power Source | AC 24V |
| Power Consumption | 20 W (AC) |
| Weight | 1600g (3.527lb) |
| Dimensions | (Ø x H): 131mm x 226mm (5.2" x 7.6") |
| Mount Type | Wall Mount, Pole Mount, Corner Mount, Flush, Surface |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Approvals | CE, FCC |
| Real-time Clock (RTC) | No |
