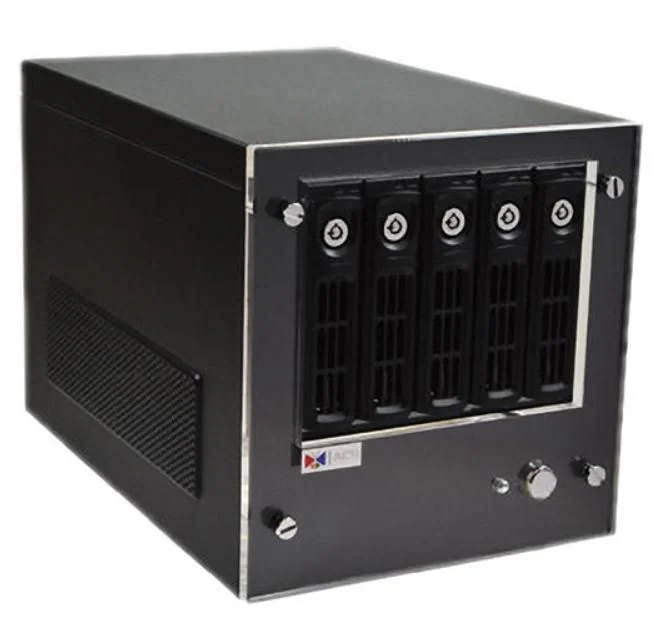

ACTi - GNR-3000 - 64-Channel 5-Bay Desktop Standalone NVR
Product Overview
The ACTi GNR-3000 is a 64-channel desktop standalone NVR designed for large-scale IP video surveillance systems. It supports management of up to 64 IP cameras or video encoders, multiple compression formats, synchronized playback, PTZ control, and advanced search functions.
Key Configuration
64-channel desktop standalone NVR; supports up to 64 IP cameras or video encoders; maximum resolution support up to 5MP with H.264, MPEG-4, and MJPEG compression formats.
Key Features
• Up to 64-channel synchronized playback for multi-camera review
• Instant playback directly in the live view window
• Continuous, scheduled, and manual recording modes
• Time-based and event-based search for efficient footage retrieval
• PTZ and speed control with two-way audio and multi-channel audio broadcast support
Technical Context
The GNR-3000 is built for surveillance environments that require centralized monitoring across many cameras. Its synchronized playback and instant live-view playback functions help operators quickly compare footage across channels, while multiple compression formats provide flexibility for different camera streams and storage requirements.
Installation Notes
The desktop standalone design is suitable for dedicated security workstations or equipment rooms. The customizable user interface supports operator-focused monitoring layouts for large surveillance deployments.
| Product Profile | |
| Product Type | Standalone NVR |
| Maximum Resolution | Support all ACTi cameras in all resolutions |
| Maximum Number of Cameras | 64 |
| Maximum Number of Video Devices | 64 |
| Maximum Number of POS devices | 64 (requires additional license) |
| Maximum Number of Access Control and Network I/O devices | 64 (requires additional license) |
| Maximum Number of Clients | Local: 1, Remote: 4 |
| License | |
| License required | Yes |
| Free License | 32 (32 channels for ACTiand 1 channel for third-party video device) |
| Live View | |
| Display Layout Mode | Local:1, 3, 4, 5, 6, 8, 9, 10, 12, 16 Remote:1, 3, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64, Custom |
| Fisheye Dewarping | Yes (Live View, Playback, Export) |
| Local Live View performance | Please check "Standalone NVR Performance Validator" (http://www.acti.com/SANVRPerformance) |
| Digital Zoom | Yes |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full |
| Instant Playback | Instant Playback in live view window |
| Embedded websites in Live View | Display and connect to pre-configured embedded website |
| Map | |
| e-Map | Yes |
| Layout | Area maps with camera icons, small live view windows, hyperlinked |
| Setup | e-Map image upload, camera positioning, vision angle and pointed direction of camera, view positioning, source positioning, extended devices for Point-of-sale (POS), Access Control, Network I/O, Car Park |
| PTZ Mode | Mouse PTZ mode to control e-Map video streams |
| PTZ | |
| PTZ Control | PTZ Control, Speed Control, 32 preset points |
| Joystick | USB based joystick supported |
| Video | |
| Compression | H.265, H.264, MPEG-4, MJPEG |
| Audio | |
| Audio Type | 2-way |
| Network | |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP Client, HTTP, DNS, NTP, RTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, LDAP (client), iSCSi |
| Ethernet Port | Total ports: 2 port(s) Non-PoE: 2 port(s), Ethernet (1000 Base-T), RJ-45 connector |
| Recording | |
| Scheduled Recording | Yes |
| Event Recording | Yes |
| Manual Recording | Yes |
| Event Speed-up Recording | Yes |
| Dual Stream Management | Yes |
| Maximum Recording Throughput | 300 Mbps |
| Search & Playback | |
| Playback Control | Continuous forward and backward playback with speeds 1x/2x/4x/8x/16x or frame-by-frame, pause, stop |
| Synchronized Playback | 9 channels (Local), 64 channels (Remote) |
| Recording Search | Search video recordings by time, events, channels, bookmarks, notifications and listed as clickable time-based thumbnails for full-size view and snapshot download |
| Video Export | RAW, AVI, EXE |
| Redundancy Server | |
| Redundancy Service | Yes, N+1 (With limited functions when NVR 3 server acts as Redundancy server) |
| System | |
| Permission control | Unlimited number of users, Active Directory, Customizable permissions for user groups, Account lockout, Automatic logout after idle, Playback password protected, Password validity period |
| Server Operating System | Windows 7 Embedded |
| Client PC Operating System | Windows 10, Windows 8.1, Windows 7 SP1, Windows Server 2012 R2, Windows Server 2008 R2 SP1 |
| Mobile Client Program | Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Video Push, Event/time based search and playback, Supported device(s) iPhone, iPad, Android device |
| USB | 4-Port USB 2.0 |
| Language | Multi-Language |
| Integration | |
| Unified Solution | Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software |
| GPS Position | Manual setting |
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.) |
| Third-party Integration | Point of Sale (POS), Access Control, Network I/O, Parking Management Station (PMS), (Various optional integrations requiring additional license) |
| Storage | |
| Storage Bay | SATA, Max. 5 Disk(s) (1 bay is occupied by system HDD) |
| HDD Size | 3.5" |
| Maximum Recording Capacity | 5TB x4 |
| Supported Storage | Video Recording: SATA disk, iSCSI Video Exporting: iSCSI, USB |
| Interface | |
| External Storage Interface | eSATA, iSCSI, USB |
| Local Access | VGA port for monitor, USB joystick, keyboard & mouse |
| General | |
| Power Source | AC 110-220V |
| Weight | 6050g (13.338lb) |
| Dimensions | (W x H x D): 200mm x 215mm x 313.5mm (7.9" x 8" x 12") |
| Fan | Yes |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 10% - 85% RH, non-condensing |
| Remote Access | Workstation, Web Client, Mobile Client |
| Approvals | CE, FCC, UL (for built-in power adapter) |
| Availability | ACTi : Now Distributor : Now |
