Product Overview

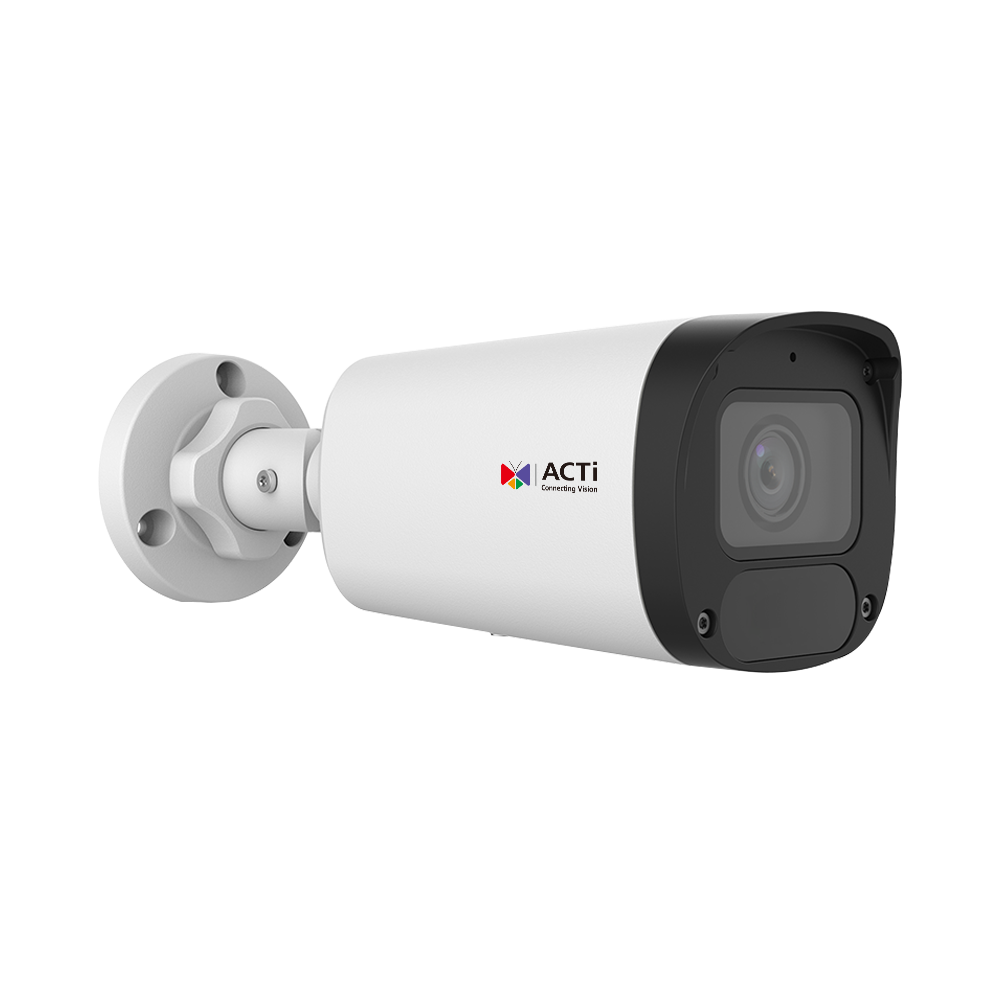

This 4MP deep learning AI zoom bullet camera is designed for outdoor surveillance where adjustable field of view, detailed imaging, and intelligent event detection are needed. It features 4.3x zoom, 60m IR illumination, 130 dB Extreme WDR, Smart Motion Detection, and rugged IP68/IK10-rated protection.
Key Configuration
4 Megapixel zoom bullet camera; 4.3x optical zoom; Deep Learning AI support; IR LED range up to 60m; Extreme WDR rated at 130 dB; DORI range of 42-180 / 21-90 / 10.1-43.2 / 6.3-27m.
Key Features
• Deep Learning AI supports intelligent surveillance and event analysis
• 4.3x zoom allows the field of view to be adjusted for the target scene
• 60m IR illumination supports nighttime monitoring
• Smart Motion Detection helps identify relevant movement events
• IP68, IK10, and UL Listed ratings support rugged outdoor security deployment
Technical Context
The camera combines 4MP imaging with Deep Learning AI and Smart Motion Detection for detailed and focused event monitoring. Its 4.3x zoom lens supports flexible coverage across different scene widths, while 130 dB Extreme WDR helps preserve detail in scenes with strong backlighting or high contrast.
Installation Notes
The camera is designed for outdoor use with IP68 weatherproof and IK10 vandal-proof protection. Use the DORI range of 42-180 / 21-90 / 10.1-43.2 / 6.3-27m when planning detection, observation, recognition, and identification coverage across the zoom range.
| Product Profile | |
| Product Type | Zoom Bullet |
| Application Environment | Outdoor |
| Maximum Resolution | 4MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7" |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.003 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED (850 nm) |
| IR Working Distance | 60m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Optical zoom, f2.8-12mm |
| Aperture | F1.6-F3.3 |
| Maximum Optical Zoom | 4.3x optical zoom |
| Iris | Fixed iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 95.6° - 30.9° |
| Vertical Viewing Angle | 52° - 17.6° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360° |
| Video | |
| Compression | H.265 Adaptive Stream, H.264 Adaptive Stream, MJPEG |
| Maximum Frame Rate vs. Resolution | 25 fps at 2688 x 1520 25 fps at 2560 x 1440 30 fps at 2304 x 1296 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360 30 fps at 704 x 288 30 fps at 352 x 288 |
| Bit Rate | 128Kbps - 6Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode)(±90⁰, 180⁰) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Highlight compensation (HLC), Brightness, Contrast, Saturation, Sharpness, Automatic exposure, Automatic gain control (AGC), Defogging |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | People Line Crossing Detection, People Intrusion Detection, Tampering Detection |
| Analytics | |
| Deep Learning AI | 1.0 |
| Audio | |
| Audio Type | 1-way, Built-in Microphone |
| Audio Compression | G.711 |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, SSL, QoS, TLS 1.2 |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Maximum User Connections | 32 |
| Security | IP address filtering, HTTPS encryption, TLS 1.2 encrypted communication, Password protected user level, Password Strength Indicator |
| Detection Range | |
| Observation Range | Detection: 42m-180m Observation: 21m-90m Recognition: 10.1m-43.2m Identification: 6.3m-27m |
| Event | |
| Event Trigger | Video motion detection (4 regions), Sound detection, Intelligent event detection |
| Event Response | E-mail notification with snapshots, Upload snapshot to FTP server, Save video or snapshot to local storage |
| Integration | |
| Edge Recording | Support (integration with NVR by ONVIF Profile G) |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| SD Card Backup and Recovery | Automatically back up the video recordings from the memory card of camera to Server via ONVIF (Profile G) integration with recovering lost videos after network connection recovery. * |
| Interface | |
| Operating Button | Reset Button |
| General | |
| Power Source | DC 12V, PoE (IEEE802.3af) |
| Power Consumption | 8.1 W (PoE) |
| Environmental Casing | Weatherproof (IP68), Vandal proof metal casing (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 3 years. |
| Mount Type | Pole Mount |
| Starting Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Approvals | CE Class A, FCC Class A, IP68, IK10 (metal casing), UL Listed, BSMI |
| Color | White |
| Real-time Clock (RTC) | Yes |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | * Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series. |
