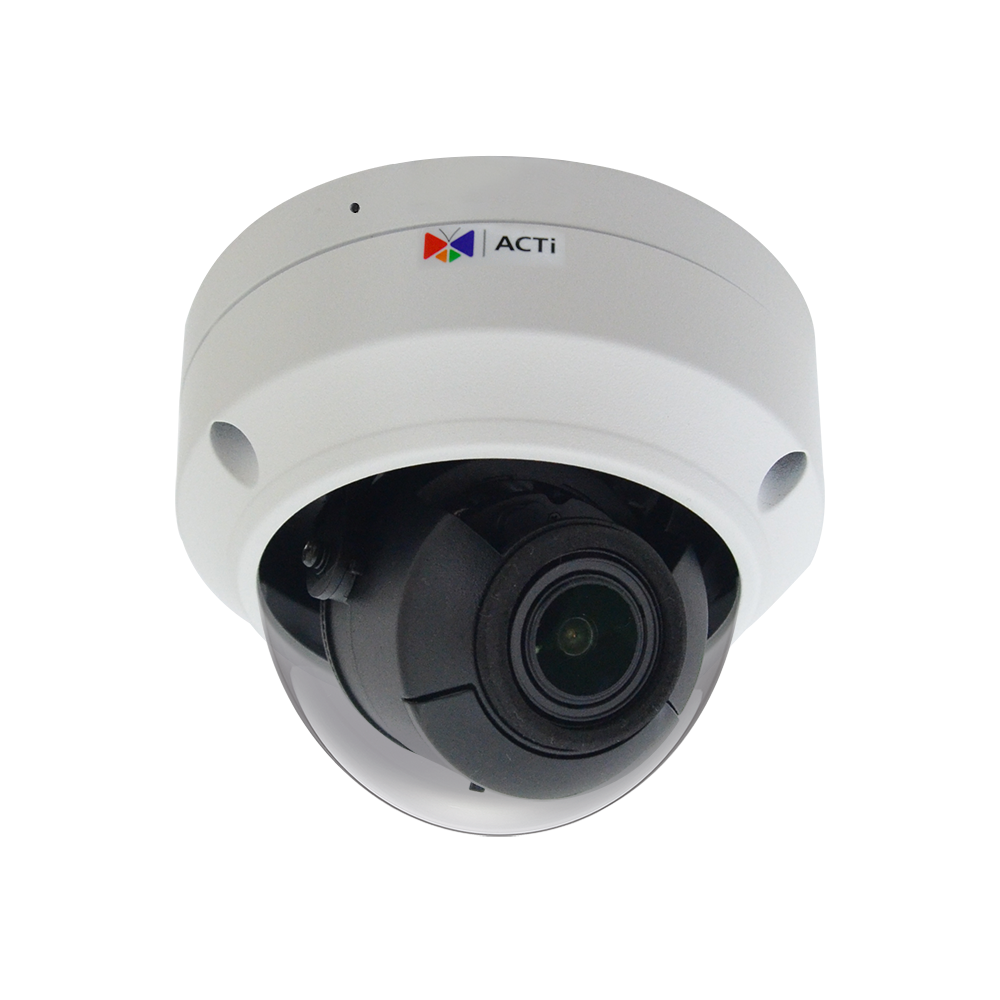

ACTi - K81 - 2MP Deep Learning AI 4.3x Outdoor Zoom Dome with IR LED 60m, WDR 130dB
Product Overview
This 2MP deep learning AI outdoor zoom dome camera is designed for flexible surveillance in exposed or vandal-prone environments. It combines 4.3x zoom, 60m IR illumination, Smart Motion Detection, 130 dB Extreme WDR, and rugged IP68/IK10-rated protection for reliable day and night monitoring.
Key Configuration
2 Megapixel zoom dome camera; 4.3x optical zoom; Deep Learning AI support; IR LED range up to 60m; Extreme WDR rated at 130 dB; DORI range of 29-124.1 / 14.5-62.1 / 7-29.8 / 4.3-18.6m.
Key Features
• Deep Learning AI supports intelligent surveillance and event analysis
• 4.3x zoom allows the field of view to be adjusted for the target scene
• 60m IR illumination supports nighttime monitoring
• Smart Motion Detection helps identify relevant movement events
• IP68, IK10, and UL Listed ratings support rugged outdoor security deployment
Technical Context
The camera combines 2MP imaging with Deep Learning AI and Smart Motion Detection for focused event monitoring. Its 4.3x zoom lens supports flexible coverage across different scene widths, while 130 dB Extreme WDR helps preserve detail in scenes with strong backlighting or high contrast.
Installation Notes
The camera is designed for outdoor installation with IP68 weatherproof and IK10 vandal-proof protection. Use the DORI range of 29-124.1 / 14.5-62.1 / 7-29.8 / 4.3-18.6m when planning detection, observation, recognition, and identification coverage across the zoom range.
| Product Profile | |
| Product Type | Zoom Dome |
| Application Environment | Outdoor |
| Maximum Resolution | 2MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.003 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED (850 nm) |
| IR Working Distance | 60m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f2.8-12mm |
| Aperture | F1.6-F3.3 |
| Zoom Ratio | 4.3x optical zoom |
| Iris | Fixed iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 111° - 36.6° |
| Vertical Viewing Angle | 59.4° - 20.6° |
| Viewing Angle Adjustment | Pan: 3°-360°, Tilt: 0°-70°, Rotation: 3°-360° |
| Video | |
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.265, H.264 Adaptive Stream (equivalent to Zip or Smart Stream or H.264+), H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360 30 fps at 704 x 288 30 fps at 352 x 288 |
| Bit Rate | 128Kbps - 6Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode)(±90⁰, 180⁰) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Highlight compensation (HLC), Brightness, Contrast, Saturation, Sharpness, Automatic exposure, Automatic gain control (AGC), Defogging |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), People Line Crossing Detection, People Intrusion Detection, Tampering Detection |
| Analytics | |
| Deep Learning AI | 1.0 |
| Audio | |
| Audio Type | 1-way, Built-in Microphone |
| Audio Compression | G.711 |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, SSL, QoS, TLS 1.2 |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Maximum User Connections | 32 |
| Security | IP address filtering, HTTPS encryption, TLS 1.2 encrypted communication, Password protected user level, Password Strength Indicator |
| Detection Range | |
| Observation Range | Detection: 29m-124.1m Observation: 14.5m-62.1m Recognition: 7m-29.8m Identification: 4.3m-18.6m |
| Event | |
| Event Trigger | Video motion detection (4 regions), Sound detection, Intelligent event detection |
| Event Response | E-mail notification with snapshots, Upload snapshot to FTP server, Save video or snapshot to storage |
| Integration | |
| Edge Recording | Support (integration with NVR by ONVIF Profile G) |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| SD Card Backup and Recovery | Automatically back up the video recordings from the memory card of camera to Server via ONVIF (Profile G) integration with recovering lost videos after network connection recovery. * |
| Interface | |
| Operating Button | Reset Button |
| General | |
| Power Source | DC 12V, PoE (IEEE802.3af) |
| Power Consumption | 6.7 W (PoE) |
| Environmental Casing | Weatherproof (IP68), Vandal proof (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 3 years. |
| Mount Type | Pole Mount |
| Starting Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Approvals | CE Class A, FCC Class A, IP68, IK10, UL Listed, BSMI |
| Color | White |
| Real-time Clock (RTC) | Yes |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | * Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series. |
