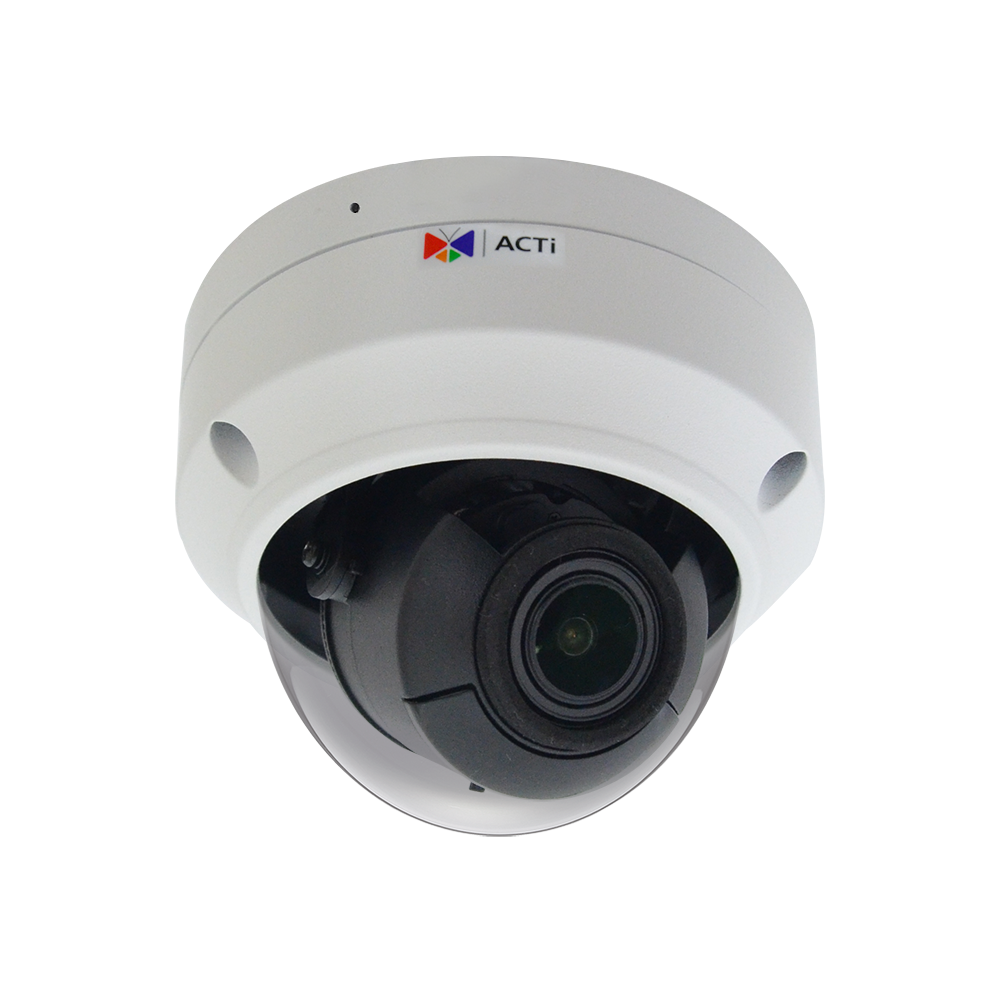

ACTi - K82 - 4MP Deep Learning AI 4.3x Outdoor Zoom Dome with IR LED 60m, WDR 130dB
Product Overview
This 4MP deep learning AI outdoor zoom dome camera is designed for high-performance video surveillance in demanding outdoor environments. It combines a 4.3x zoom lens, 60m IR illumination, Smart Motion Detection, and 130 dB Extreme WDR to support clear monitoring across varied lighting conditions.
Key Configuration
4 Megapixel outdoor zoom dome camera; 4.3x zoom lens with Deep Learning AI; IR LED range up to 60m; Extreme WDR rated at 130 dB; DORI range of 42-180 / 21-90 / 10.1-43.2 / 6.3-27m.
Key Features
• Deep Learning AI supports intelligent video analysis
• 4.3x zoom lens provides flexible scene coverage
• IR LED illumination supports nighttime visibility up to 60m
• Extreme WDR helps maintain image detail in high-contrast lighting
• IP68 weatherproof, IK10 vandal-proof, and UL Listed construction supports outdoor deployment
Technical Context
The camera combines 4MP resolution with Deep Learning AI and Smart Motion Detection to improve event detection accuracy. Extreme WDR helps balance bright and dark areas in the same scene, while IR illumination enables surveillance in low-light or nighttime environments.
Installation Notes
The IP68 weatherproof and IK10 vandal-proof ratings support outdoor installation in exposed or public areas. DORI planning values of 42-180 / 21-90 / 10.1-43.2 / 6.3-27m can be used to estimate detection, observation, recognition, and identification coverage during camera placement.
| Product Profile | |
| Product Type | Zoom Dome |
| Application Environment | Outdoor |
| Maximum Resolution | 4MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.003 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED (850 nm) |
| IR Working Distance | 60m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f2.8-12mm |
| Aperture | F1.6-F3.3 |
| Zoom Ratio | 4.3x optical zoom |
| Iris | Fixed iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 95.6° - 30.9° |
| Vertical Viewing Angle | 52° - 17.6° |
| Viewing Angle Adjustment | Pan: 3°-360°, Tilt: 0°-70°, Rotation: 3°-360° |
| Video | |
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.265, H.264 Adaptive Stream (equivalent to Zip or Smart Stream or H.264+), H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 25 fps at 2688 x 1520 25 fps at 2560 x 1440 30 fps at 2304 x 1296 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360 30 fps at 704 x 288 30 fps at 352 x 288 |
| Bit Rate | 128Kbps - 6Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode)(±90⁰, 180⁰) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Highlight compensation (HLC), Brightness, Contrast, Saturation, Sharpness, Automatic exposure, Automatic gain control (AGC), Defogging |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), People Line Crossing Detection, People Intrusion Detection, Tampering Detection |
| Analytics | |
| Deep Learning AI | 1.0 |
| Audio | |
| Audio Type | 1-way, Built-in Microphone |
| Audio Compression | G.711 |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, SSL, QoS, TLS 1.2 |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Maximum User Connections | 32 |
| Security | IP address filtering, HTTPS encryption, Password protected user level, Password Strength Indicator |
| Detection Range | |
| Observation Range | Detection: 42m-180m Observation: 21m-90m Recognition: 10.1m-43.2m Identification: 6.3m-27m |
| Event | |
| Event Trigger | Video motion detection (4 regions), Sound detection, Intelligent event detection |
| Event Response | E-mail notification with snapshots, Upload snapshot to FTP server, Save video or snapshot to storage |
| Integration | |
| Edge Recording | Support (integration with NVR by ONVIF Profile G) |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| SD Card Backup and Recovery | Automatically back up the video recordings from the memory card of camera to Server via ONVIF (Profile G) integration with recovering lost videos after network connection recovery. * |
| Interface | |
| Operating Button | Reset Button |
| General | |
| Power Source | DC 12V, PoE (IEEE802.3af) |
| Power Consumption | 6.7 W (PoE) |
| Environmental Casing | Weatherproof (IP68), Vandal proof (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 3 years. |
| Mount Type | Pole Mount |
| Starting Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Approvals | CE Class A, FCC Class A, IP68, IK10, UL Listed, BSMI |
| Color | White |
| Real-time Clock (RTC) | Yes |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | * Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series. |
