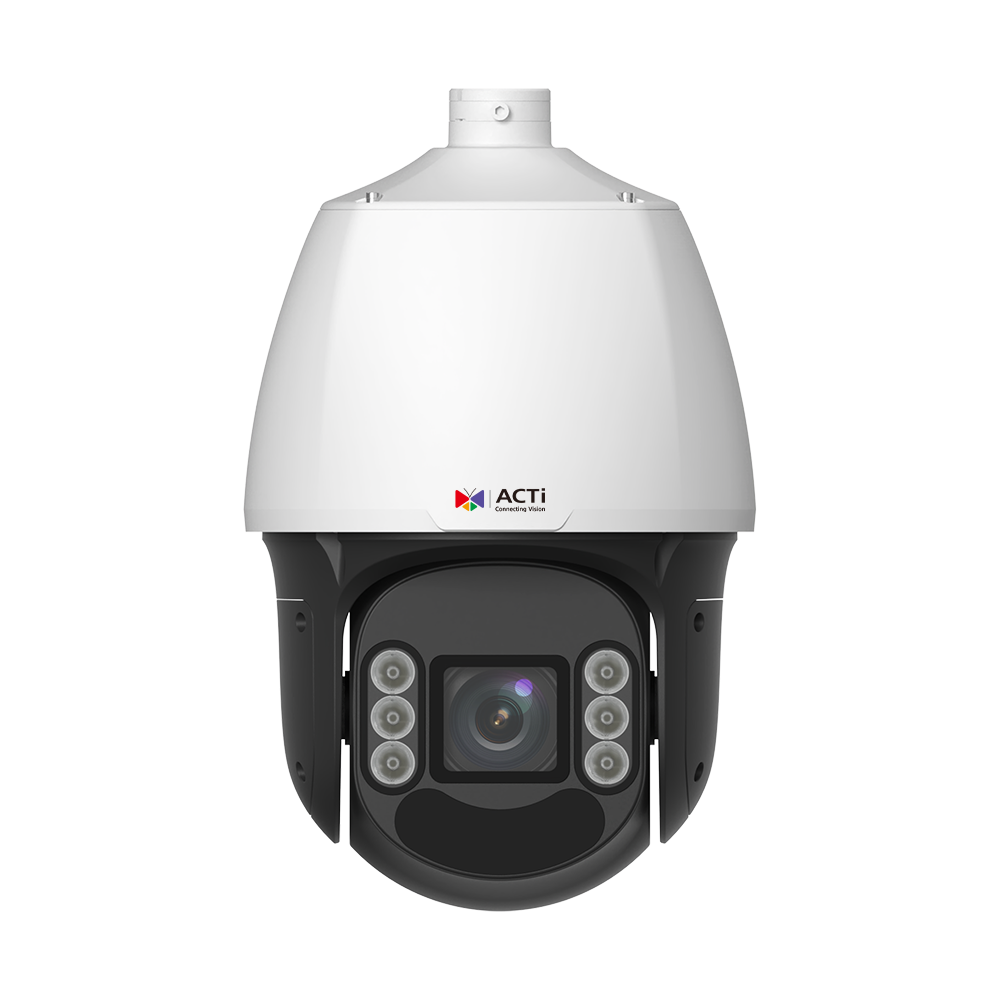

ACTi - K953 - 5MP Deep Learning AI ColorGuard LightGuard 33x Outdoor PTZ with IR LED 250m, ColorVizion, WDR 145dB
Product Overview
This 5MP deep learning AI ColorGuard LightGuard outdoor PTZ camera is designed for advanced long-range surveillance and intelligent wide-area monitoring. It combines 33x zoom, PTZ Auto Tracking, Smart Motion Detection, Smart Intrusion Protection, Face Recognition, Counting, 250m IR illumination, ColorVizion, and 145 dB Extreme WDR for detailed outdoor security coverage.
Key Configuration
5 Megapixel outdoor PTZ camera; 33x zoom with Deep Learning AI, LightGuard, and ColorGuard; IR LED range up to 250m with ColorVizion and 0.003 lux minimum color illumination; Extreme WDR rated at 145 dB; DORI range of 105.8-3172.5 / 42.3-1269 / 21.2-634.5 / 10.6-317.3m.
Key Features
• 5MP resolution and 33x zoom support detailed long-range surveillance
• Deep Learning AI supports PTZ Auto Tracking, Face Recognition, and Counting
• Smart Motion Detection and Smart Intrusion Protection support intelligent event monitoring
• ColorGuard, LightGuard, and ColorVizion support enhanced visibility in low-light scenes
• IP68 weatherproof, IK10 vandal-proof, and UL Listed construction supports outdoor deployment
Technical Context
The camera uses Deep Learning AI to support automated tracking, face recognition, counting, motion detection, and intrusion-focused event analysis across large outdoor areas. Its 145 dB Extreme WDR helps maintain detail in high-contrast scenes, while ColorGuard, LightGuard, ColorVizion, and long-range IR illumination improve visibility in low-light and nighttime conditions.
Installation Notes
The IP68 weatherproof and IK10 vandal-proof ratings support installation in exposed outdoor or public-facing locations. DORI planning values of 105.8-3172.5 / 42.3-1269 / 21.2-634.5 / 10.6-317.3m can be used to estimate detection, observation, recognition, and identification coverage during long-range camera placement.
| Product Profile | |
| Product Type | PTZ |
| Application Environment | Outdoor |
| Maximum Resolution | 5MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| ColorGuard | Yes |
| LightGuard | Yes |
| ColorVizion | Yes |
| Minimum Illumination | Color: 0.003 lux; B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 250m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f4.5-148.5mm |
| Aperture | F1.5-F4.0 |
| Zoom Ratio | 33x optical zoom, 16x digital zoom |
| Iris | Auto iris |
| Focus | Auto focus |
| Horizontal Viewing Angle | 53.9° - 3.0° |
| Vertical Viewing Angle | 31.92° - 1.69° |
| PTZ | |
| Panning Range | 0°~360° (endless) |
| Tilting Range | -15°~90° (with E-flip) |
| Preset Panning Speed | 0.1° - 288°/second |
| Preset Tilting Speed | 0.1° - 288°/second |
| PTZ Control | Remote manual control, Speed Control, 1024 preset points, 16 preset tours |
| Video | |
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.265, H.264 Adaptive Stream (equivalent to Zip or Smart Stream or H.264+), H.264, MJPEG |
| Smart ROI | Yes, supports up to 8 configurable regions per supported stream |
| Maximum Frame Rate vs. Resolution | 60 fps at 2880 x 1620 60 fps at 2688 x 1520 60 fps at 2560 x 1440 60 fps at 1920 x 1080 60 fps at 720 x 576 |
| Bit Rate | 128Kbps - 16Mbps |
| Multi-Streaming | Simultaneous triple streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (145 dB) |
| Image Orientation | Flip, Mirror |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Backlight compensation (BLC), Highlight compensation (HLC), Automatic gain control (AGC), Gyro-based Image Stabilizer, Digital Image Stabilizer (DIS, EIS), Defogging |
| Privacy Mask | 24 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), Smart Intrusion Protection (, People Line Crossing Detection, People Intrusion Detection, People Enter Area Detection, People Exit Area Detection, Vehicle Line Crossing Detection, Vehicle Intrusion Detection, Vehicle Enter Area Detection, Vehicle Exit Area Detection), Missing Object Detection, Unattended Object Detection, Face Detection, Face Capture, Face Recognition, People Flow Counting, People Density Counting, PTZ Auto Tracking (, People Tracking, Vehicle Tracking) |
| Analytics | |
| Camera Object Metadata | Age, Gender, Glasses, Mask, Vehicle type |
| Deep Learning AI | 2.0 |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711 |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, TLS 1.2, TLS 1.3, SSH, SNMP, IEEE 802.1X, NFS |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, TLS v1.2, TLS v1.3 encrypted communication, Digest Authentication (HTTP/RTSP/ONVIF(WSSE)), Password protected user level, Password Strength Indicator, IEEE 802.1X network access control |
| Detection Range | |
| Observation Range | Detection: 105.8m-3172.5m Observation: 42.3m-1269m Recognition: 21.2m-634.5m Identification: 10.6m-317.3m |
| Event | |
| Event Trigger | External device through digital input, Intelligent event detection |
| Event Response | E-mail notification with snapshots, Save video or snapshot to storage, Upload video or snapshot to FTP server, Save video to NAS storage via NFS, Activate external device through digital output |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T, Profile M |
| Web Browser | IE 11, Microsoft Edge, Google Chrome, Firefox |
| Storage | |
| User Database | Face Picture Capacity: 100000 |
| Blocklist/Allowlist | People: up to 32 records |
| Interface | |
| Serial Port | 1 x RS-485 |
| Digital Input/Output | 2/1 |
| Operating Button | Reset Button |
| General | |
| Power Source | AC 24V, DC 24V, High PoE (IEEE802.3at) |
| Power Consumption | 25 W (PoE) |
| Weight | 5300g(11.68lb) |
| Dimensions | (Ø x H): 227mm x 390mm (8.9" x 15.4") |
| Environmental Casing | Weatherproof (IP68), Vandal proof (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 3 years. |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Storage Temperature | -40 °C ~ 70 °C (-40 °F ~ 158 °F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 6KV |
| Approvals | CE Class A, FCC Class A, IP68, IK10, BSMI, UL Listed |
| Color | White |
| Real-time Clock (RTC) | Yes |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
