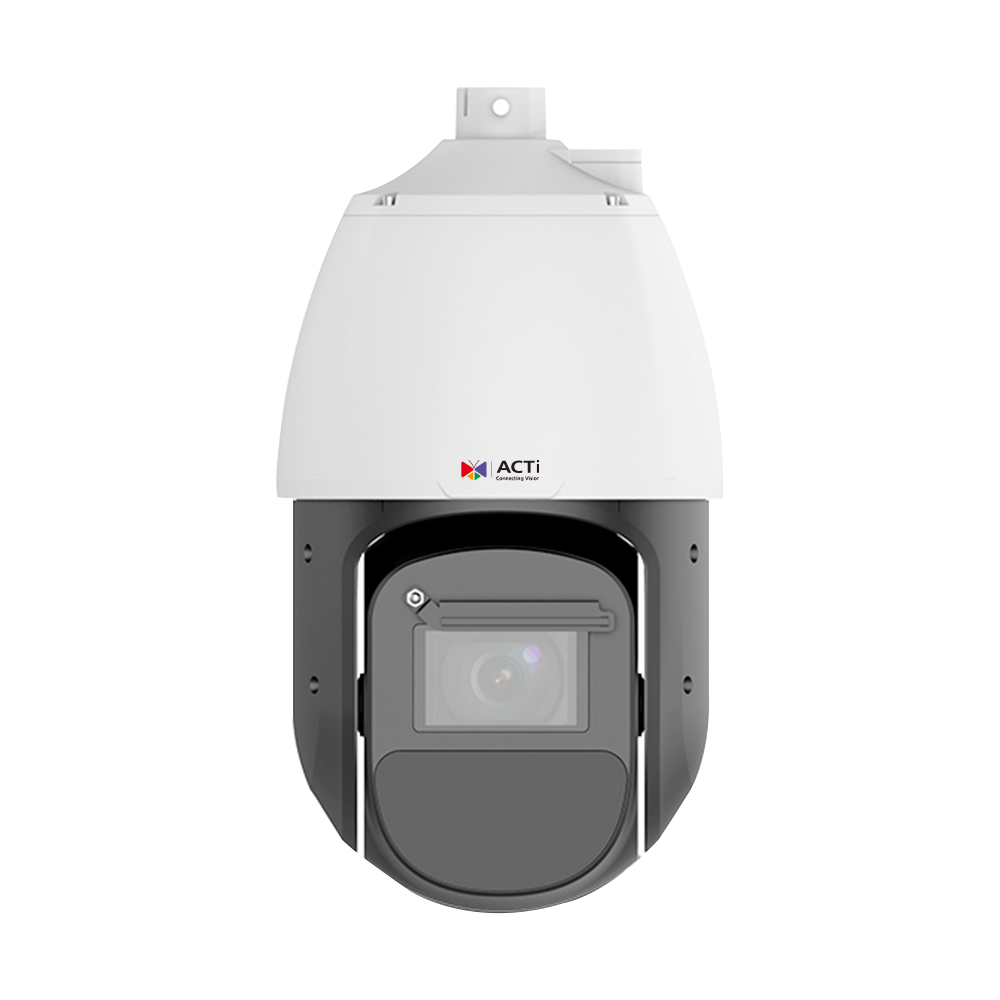

ACTi - K954 - 5MP Deep Learning AI 42x Outdoor PTZ with IR LED 500m, ColorVizion, WDR 150dB
Product Overview
This 5MP deep learning AI outdoor PTZ camera is designed for long-range surveillance and wide-area security monitoring. It combines 42x zoom, PTZ Auto Tracking, Smart Motion Detection, Smart Intrusion Protection, Face Recognition, Counting, 500m IR illumination, ColorVizion, and 150 dB Extreme WDR for detailed monitoring in demanding outdoor environments.
Key Configuration
5 Megapixel outdoor PTZ camera; 42x zoom with Deep Learning AI; 1/1.8 in. sensor with ColorVizion and 0.0003 lux minimum color illumination; IR LED range up to 500m and 150 dB Extreme WDR; DORI range of 93.1-4310.3 / 37.2-1564.1 / 18.6-782.1 / 9.3-391.0m.
Key Features
• 5MP resolution and 42x zoom support detailed long-range surveillance
• Deep Learning AI supports PTZ Auto Tracking, Face Recognition, and Counting
• Smart Motion Detection and Smart Intrusion Protection support intelligent event monitoring
• 500m IR illumination and ColorVizion support extended low-light and nighttime visibility
• IP68 weatherproof, IK10 vandal-proof, and UL Listed construction supports outdoor deployment
Technical Context
The camera uses a 1/1.8 in. sensor with Deep Learning AI to support high-detail monitoring, automated tracking, face recognition, counting, and intrusion-focused analysis. Its 150 dB Extreme WDR helps maintain image detail in difficult lighting, while 0.0003 lux color sensitivity, ColorVizion, and 500m IR illumination improve visibility across very low-light and long-range scenes.
Installation Notes
The IP68 weatherproof and IK10 vandal-proof ratings support installation in exposed outdoor or public-facing locations. DORI planning values of 93.1-4310.3 / 37.2-1564.1 / 18.6-782.1 / 9.3-391.0m can be used to estimate detection, observation, recognition, and identification coverage during long-range PTZ placement.
| Product Profile | |
| Product Type | PTZ |
| Application Environment | Outdoor |
| Maximum Resolution | 5MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.8 " |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| ColorVizion | Yes |
| Minimum Illumination | Color: 0.0003 lux; B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 500m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f6.0-252mm |
| Aperture | F1.2-F4.6 |
| Zoom Ratio | 42x optical zoom |
| Iris | Auto iris |
| Focus | Auto focus |
| Horizontal Viewing Angle | 59.47° - 2.20° |
| PTZ | |
| Panning Range | 0°~360° (endless) |
| Tilting Range | -15°~90° (with E-flip) |
| Preset Panning Speed | 0.1° - 300°/second |
| Preset Tilting Speed | 0.1° - 180°/second |
| PTZ Control | Remote manual control, Speed Control, 1024 preset points, 16 preset tours |
| Video | |
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.265, H.264 Adaptive Stream (equivalent to Zip or Smart Stream or H.264+), H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 60 fps at 2880 x 1620 60 fps at 2688 x 1520 60 fps at 2560 x 1440 60 fps at 1920 x 1080 60 fps at 720 x 576 |
| Bit Rate | 128Kbps - 16Mbps |
| Multi-Streaming | Simultaneous triple streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (150 dB) |
| Image Orientation | Flip, Mirror |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Backlight compensation (BLC), Highlight compensation (HLC), Automatic gain control (AGC), Gyro-based Image Stabilizer, Digital Image Stabilizer (DIS, EIS), Defogging |
| Privacy Mask | 24 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), Smart Intrusion Protection (, People Line Crossing Detection, People Intrusion Detection, People Enter Area Detection, People Exit Area Detection, Vehicle Line Crossing Detection, Vehicle Intrusion Detection, Vehicle Enter Area Detection, Vehicle Exit Area Detection), Missing Object Detection, Unattended Object Detection, Face Detection, Face Capture, Face Recognition, People Flow Counting, People Density Counting, PTZ Auto Tracking (, People Tracking, Vehicle Tracking) |
| Analytics | |
| Deep Learning AI | 2.0 |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711 |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, TLS 1.2, TLS 1.3, SSH, SNMP, IEEE 802.1X, NFS |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, TLS v1.2, TLS v1.3 encrypted communication, Digest Authentication (HTTP/RTSP/ONVIF(WSSE)), Password protected user level, Password Strength Indicator, IEEE 802.1X network access control |
| Detection Range | |
| Observation Range | Detection: 93.1m-4310.3m Observation: 37.2m-1564.1m Recognition: 18.6m-782.1m Identification: 9.3m-391.0m |
| Event | |
| Event Trigger | Video motion detection, External device through digital input, Sound detection, Tampering detection, Intelligent event detection |
| Event Response | Save video to storage, Save video to NAS storage via NFS, Activate external device through digital output |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T, Profile M |
| Web Browser | IE 11, Microsoft Edge, Google Chrome, Firefox |
| Storage | |
| User Database | Face Picture Capacity: 100000 |
| Blocklist/Allowlist | People: up to 32 records |
| Interface | |
| Serial Port | 1 x RS-485 |
| Digital Input/Output | 7/2 |
| Operating Button | Reset Button |
| General | |
| Power Source | AC 24V, DC 24V, High PoE (IEEE802.3bt) |
| Power Consumption | 67 W (PoE) |
| Weight | 6900g(15.21lb) |
| Dimensions | (Ø x H): 227mm x 414mm (8.9" x 16.3") |
| Environmental Casing | Weatherproof (IP68), Vandal proof (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 3 years. |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Storage Temperature | -40 °C ~ 70 °C (-40 °F ~ 158 °F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 6KV |
| Approvals | CE Class A, FCC Class A, IP68, IK10, BSMI, UL Listed |
| Color | White |
| Real-time Clock (RTC) | Yes |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
