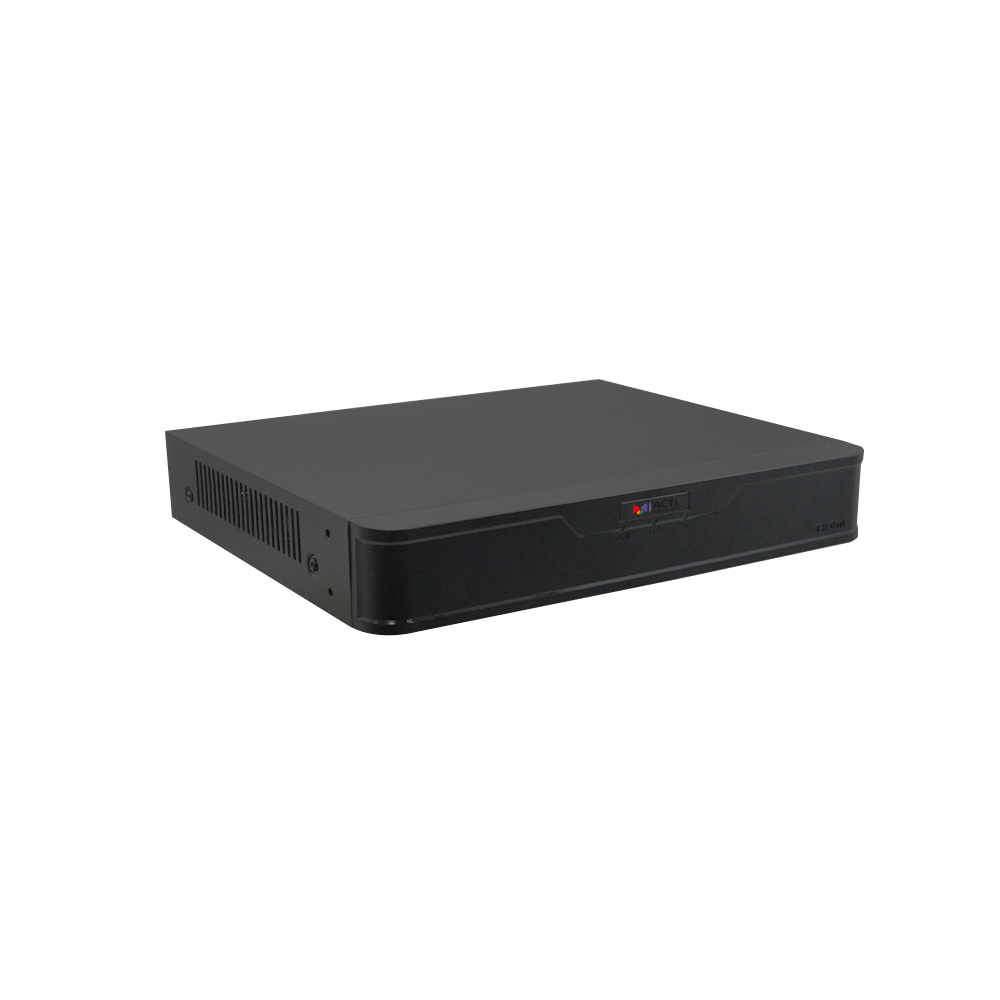

ACTi - KNR-120 - 8-Channel 1-Bay Mini Standalone NVR
Product Overview
This 8-channel 1-bay mini standalone NVR is designed for compact video surveillance recording and management. It runs on Embedded Linux with an ARM-based embedded SoC and supports web-based access, multi-browser compatibility, and local display output through HDMI and VGA.
Key Configuration
8-channel mini standalone NVR with 8 free licenses; 1 storage bay for local video recording; Embedded Linux operating system; ARM-based embedded SoC platform; HDMI x 1 and VGA x 1 display outputs.
Key Features
• Supports up to 8 video channels with 8 free licenses included
• Single storage bay provides local recording capacity in a compact NVR form factor
• Embedded Linux platform supports standalone operation
• HDMI and VGA outputs support local monitor connection
• Web Client and multi-browser support enable browser-based system access
Technical Context
The NVR uses an ARM-based embedded SoC and Embedded Linux to provide a compact standalone recording platform. Browser-based access allows users to manage or review surveillance video through supported web clients without relying only on local display operation.
Installation Notes
The mini standalone form factor is suitable for small surveillance installations where space is limited. HDMI and VGA outputs allow connection to a local monitor for setup, live view, or system operation.
| Product Profile | |
| Product Type | Standalone NVR |
| Maximum Resolution | 8MP |
| Maximum Number of Video Devices | 8 |
| Maximum Number of Clients | Local: 1, Remote: 2 |
| Supported Screen Resolution | HDMI: 3840x2160 (30Hz), 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) VGA: 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) |
| Hardware | |
| System Architecture | Embedded SoC-based (ARM platform) |
| CPU | ARM-based embedded SoC |
| License | |
| License Required | No |
| Free License | 8 |
| Live View | |
| Display Layout Mode | 1, 4, 6, 8, 9 |
| Fisheye Dewarping | Yes (Live View, Playback) |
| Local Live View Performance | 1ch (up to 30 fps at 4K 3840 x 2160) 2ch (up to 30 fps at 4MP) 4ch (up to 30 fps at 2MP) 8ch (up to 30 fps at 720P) |
| Digital Zoom | Yes |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client |
| PTZ | |
| PTZ Control | PTZ Control, Speed Control |
| Video | |
| Compression | H.265, H.264 |
| Audio | |
| Audio Type | 1-way, Line-out |
| Audio Compression | G.711 A-law, G.711 u-law |
| Network | |
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTSP, SMTP, UPnP, TLS 1.2, TLS 1.3 |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Maximum Outgoing Throughput | 48 Mbps |
| Security | TLS v1.2, TLS v1.3 encrypted communication |
| Recording | |
| Scheduled Recording | Yes |
| Event Recording | Yes |
| Manual Recording | Yes |
| Maximum Recording Throughput | 64 Mbps |
| Search & Playback | |
| Playback Control | Continuous forward and backward playback with speeds 1x/2x/4x/8x/16x, pause, stop, frame-by-frame |
| Synchronized Playback | 8 channels |
| Video Export | MP4 |
| Snapshot Export | JPEG |
| Event | |
| Event Trigger | [NVR]: Low disk space, Disk full, Disk not found, Failed to write storage, IP address conflict, Network loss. [Video Device]: Video motion detection, Tampering detection, Sound detection |
| Event Response | Play alert sound, E-mail notification with snapshots |
| System | |
| Permission Control | 128 Remote users, Customizable permissions for user groups |
| Server Operating System | Embedded Linux |
| Client PC Operating System | Windows 7, Windows 8, Windows 10 |
| USB | 2-Port USB 2.0 |
| Language | English, Traditional Chinese |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 10 or newer, Google Chrome, Microsoft Edge, Firefox |
| Storage | |
| Storage Bay | SATA, Max. 1 Disk(s) (without storage disks) |
| HDD Size | 3.5" |
| Maximum Recording Capacity | 24TB x1 |
| RAID Level | No |
| Interface | |
| Audio Interface | 3.5mm Phone Jack |
| Local Access | USB Mouse |
| Local Display Interface | HDMI x 1, VGA x 1 |
| General | |
| Power Source | DC 12V |
| Power Consumption | 5 W (DC, without HDD) |
| Weight | 1290g (2.84lb) |
| Dimensions | (W x H x D): 260mm x 46mm x 240mm (10.24" x 1.81" x 9.45") |
| Bundled Accessories | Power Adapter, USB Mouse |
| Fan | No |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Operating Humidity | 10% - 90% RH, non-condensing |
| Remote Access | Web Client |
| Approvals | CE Class A, FCC Class A, BSMI, UL Listed |
| Color | Black |
| Material | Iron |
| Real-time Clock (RTC) | Yes |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
