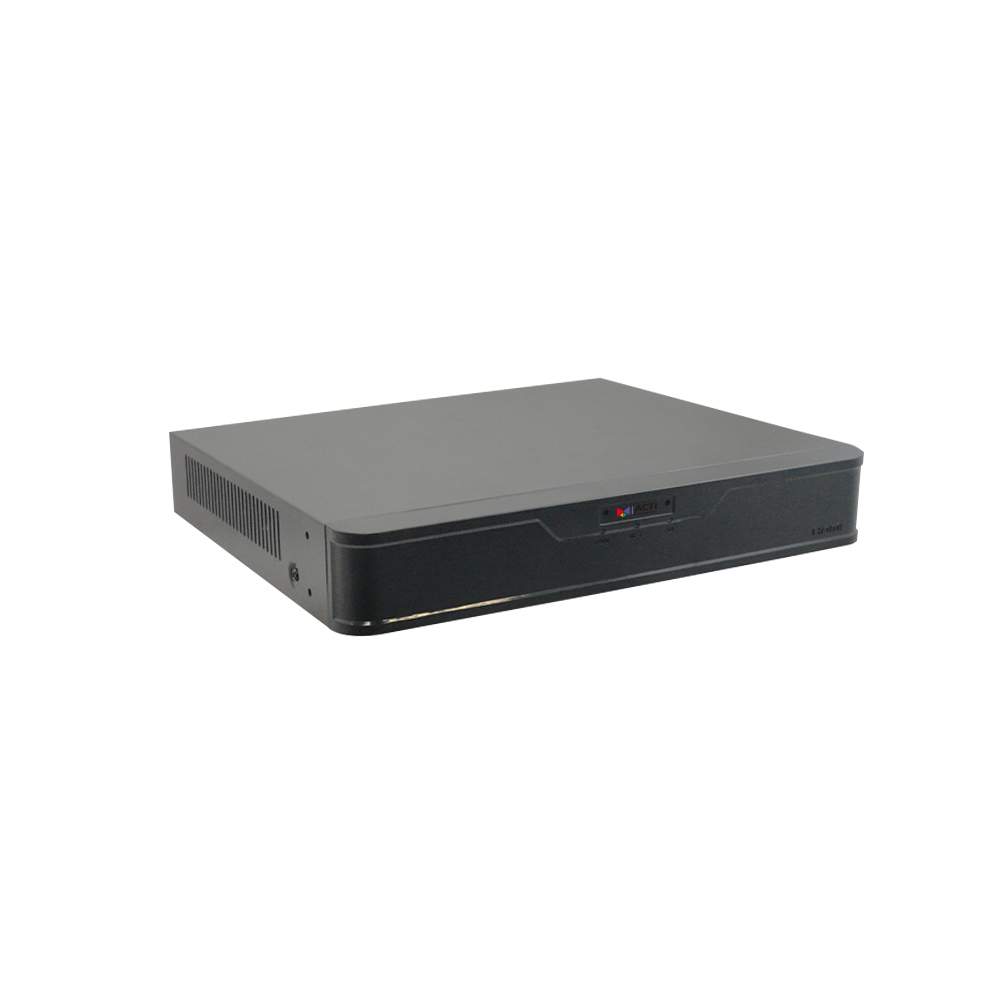

ACTi - KNR-121 - Deep Learning AI 16-Channel 1-Bay Mini Standalone NVR
Product Overview
This Deep Learning AI 16-channel 1-bay mini standalone NVR is designed for compact surveillance recording with built-in analytics support. It runs on Embedded Linux with an ARM-based embedded SoC and includes forensic search, smart search, object visual tracking, web client access, and local display outputs.
Key Configuration
16-channel mini standalone NVR with 16 free licenses; 1 storage bay for local recording; Embedded Linux operating system with ARM-based embedded SoC; audio support with HDMI x 1 and VGA x 1 outputs; built-in Core Analytics and Deep Learning AI.
Key Features
• Supports up to 16 video channels with 16 free licenses included
• Built-in Core Analytics and Deep Learning AI support intelligent video analysis
• Forensic Search and Smart Search help streamline video investigation workflows
• Object Visual Tracking supports easier review of movement across recorded scenes
• Web Client and multi-browser support enable browser-based system access
Technical Context
The NVR combines embedded standalone recording with built-in AI analytics to support more efficient monitoring and investigation. Forensic Search, Smart Search, and Object Visual Tracking help operators locate relevant events faster within recorded surveillance footage.
Installation Notes
The mini standalone form factor is suitable for compact surveillance installations with limited equipment space. HDMI and VGA outputs allow connection to a local monitor, while the Web Client provides browser-based access for system operation and review.
| Product Profile | |
| Product Type | Standalone NVR |
| Maximum Resolution | 12MP |
| Maximum Number of Video Devices | 16 |
| Maximum Number of Clients | Local: 1, Remote: 128 |
| Supported Screen Resolution | HDMI: 3840x2160 (30Hz), 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) VGA: 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) |
| Hardware | |
| System Architecture | Embedded SoC-based (ARM platform) |
| CPU | ARM-based embedded SoC |
| License | |
| License Required | No |
| Free License | 16 |
| Live View | |
| Display Layout Mode | 1, 4, 6, 8, 9, 16 |
| Fisheye Dewarping | Yes (Live View, Playback) |
| Local Live View Performance | [Smart IVA Off] 2ch (up to 30 fps at 12MP) 2ch (up to 30 fps at 4K 3840 x 2160) 4ch (up to 30 fps at 4MP) 10ch (up to 30 fps at 2MP 1920 x 1080) 16ch (up to 30 fps at 720p) [Smart IVA On] 2ch (up to 30 fps at 4K 3840 x 2160) 4ch (up to 30 fps at 4MP) 8ch (up to 30 fps at 2MP 1920 x 1080) 16ch (up to 30 fps at 720p) |
| Digital Zoom | Yes |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client |
| Instant Playback | Instant Playback in live view window |
| PTZ | |
| PTZ Control | PTZ Control, Speed Control |
| Video | |
| Compression | H.265, H.264 |
| Analytics | |
| NVR Built-in Analytics | Smart Motion Detection (detect when the people, vehicles or other objects move in the predefined area), Face Comparison, Face Detection |
| NVR Analytics Maximum Channels | Smart Intrusion Protection: 2 channels Smart Motion Detection: 4 channels |
| Deep Learning AI | 2.0 |
| Object Recognition Database | Face Picture Capacity: 50,000 Vehicle Picture Capacity: 25,000 |
| Maximum Snapshot Capacity | Captured Face Snapshots: 500000 Captured Vehicle Snapshots: 500000 Captured Object Snapshots via Smart Intrusion Protection: 500000 |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711 A-law, G.711 u-law |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTSP, SMTP, UPnP, TLS 1.2, TLS 1.3, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Maximum Outgoing Throughput | 80 Mbps |
| Security | TLS v1.2, TLS v1.3 encrypted communication |
| Recording | |
| Scheduled Recording | Yes |
| Event Recording | Yes |
| Manual Recording | Yes |
| Maximum Recording Throughput | 80 Mbps |
| Search & Playback | |
| Playback Control | Continuous forward and backward playback with speeds 1x/2x/4x/8x/16x, pause, stop, frame-by-frame |
| Synchronized Playback | 16 channels |
| Smart Search | Set ROI and look for the people and vehicles appearing in the ROI in the past recordings (requires cameras with Smart Motion Detection feature) |
| Forensic Search | Support, Select target object (people, vehicle) and search for the similar object through all the channels |
| Object Visual Tracking | Support, View thumbnails generated by Forensic Search and playback by time sequence |
| Video Export | MP4 |
| Snapshot Export | JPEG |
| Event | |
| Event Trigger | [NVR]: Low disk space, Disk full, Disk not found, Failed to write storage, IP address conflict, Network loss. [Video Device]: Video motion detection, Tampering detection, Sound detection |
| Event Response | Play alert sound, E-mail notification with snapshots |
| System | |
| Permission Control | 128 Remote users, Customizable permissions for user groups |
| Server Operating System | Embedded Linux |
| Client PC Operating System | Windows 7, Windows 8, Windows 10 |
| USB | 1-Port USB 2.0, 1-Port USB 3.0 |
| Language | English, Traditional Chinese |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 10 or newer, Google Chrome, Microsoft Edge, Firefox |
| Storage | |
| Storage Bay | SATA, Max. 1 Disk(s) (without storage disks) |
| HDD Size | 3.5" |
| Maximum Recording Capacity | 24TB x1 |
| RAID Level | No |
| Interface | |
| Audio Interface | 1/1, RCA Jack |
| Local Access | USB Mouse |
| Local Display Interface | HDMI x 1, VGA x 1 |
| General | |
| Power Source | DC 12V |
| Power Consumption | 12 W (DC, without HDD) |
| Dimensions | (W x H x D): 260mm x 47mm x 222mm (10.2" x 1.8" x 8.7") |
| Bundled Accessories | USB Mouse, Power Adapter |
| Fan | No |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Operating Humidity | 10% - 90% RH, non-condensing |
| Remote Access | Web Client |
| Approvals | CE Class A, FCC Class A, BSMI, UL Listed |
| Color | Black |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
