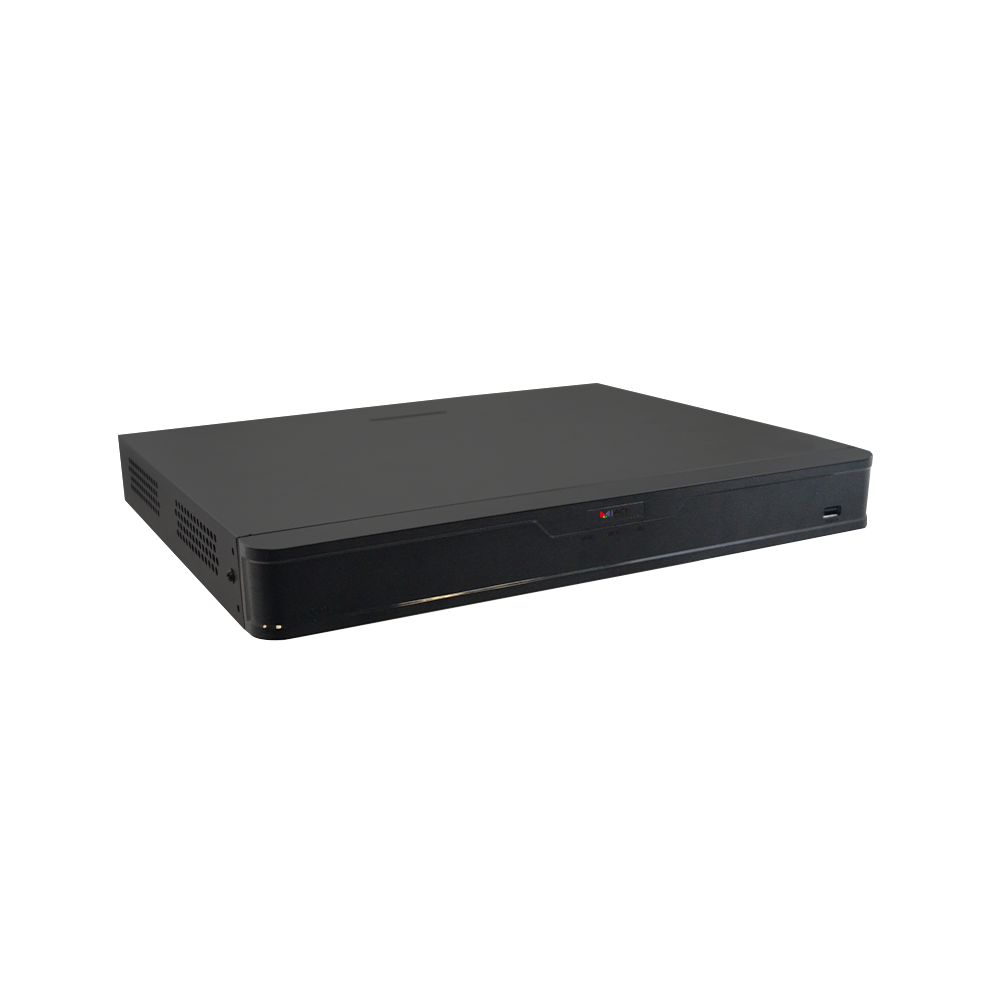

ACTi - KNR-220P - Deep Learning AI 16-Channel 2-Bay RAID 1U Rackmount Standalone NVR with 16-Port PoE Connectors
Product Overview
This Deep Learning AI 16-channel 2-bay RAID 1U rackmount standalone NVR is designed for compact surveillance recording with integrated PoE connectivity. It supports 16 channels, onboard RAID 0/1, built-in Core Analytics, forensic search, smart search, and object visual tracking for efficient video management and investigation.
Key Configuration
16-channel rackmount standalone NVR with 16 free licenses; 2 storage bays with onboard hardware RAID 0 and 1; 1U rackmount form factor with 16-port PoE; Embedded Linux with ARM-based embedded SoC; audio, digital input/output, HDMI x 1, and VGA x 1 interfaces.
Key Features
• Supports up to 16 video channels with 16 free licenses included
• 16-port PoE connectivity supports direct camera connection and power delivery
• Two storage bays with onboard RAID 0/1 support recording capacity or redundancy options
• Built-in Core Analytics and Deep Learning AI support intelligent video analysis
• Forensic Search, Smart Search, and Object Visual Tracking support efficient investigation workflows
Technical Context
The NVR combines embedded standalone recording, integrated PoE ports, and onboard RAID support in a 1U rackmount platform. Built-in Deep Learning AI and Core Analytics help operators search, classify, and review video events more efficiently across connected surveillance cameras.
Installation Notes
The 1U rackmount design is intended for installation in standard equipment racks. The integrated 16-port PoE interface can simplify camera deployment by carrying network connectivity and power from the NVR to compatible PoE cameras.
| Product Profile | |
| Product Type | Standalone NVR |
| Maximum Resolution | 12MP |
| Maximum Number of Video Devices | 16 |
| Maximum Number of Clients | Local: 1, Remote: 128 |
| Supported Screen Resolution | HDMI: 3840x2160 (30Hz), 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) VGA: 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) |
| Hardware | |
| System Architecture | Embedded SoC-based (ARM platform) |
| CPU | ARM-based embedded SoC |
| License | |
| License Required | No |
| Free License | 16 |
| Live View | |
| Display Layout Mode | 1, 4, 6, 8, 9, 16 |
| Fisheye Dewarping | Yes (Live View, Playback) |
| Local Live View Performance | [Smart IVA Off] 2ch (up to 30 fps at 12MP) 2ch (up to 30 fps at 4K 3840 x 2160) 4ch (up to 30 fps at 4MP) 10ch (up to 30 fps at 3MP) 16ch (up to 30 fps at 720p) [Smart IVA On] 2ch (up to 30 fps at 4K 3840 x 2160) 4ch (up to 30 fps at 4MP) 8ch (up to 30 fps at 2MP 1920 x 1080) 16ch (up to 30 fps at 720p) |
| Digital Zoom | Yes |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client |
| PTZ | |
| PTZ Control | PTZ Control, Speed Control |
| Video | |
| Compression | H.265, H.264 |
| Text Overlay | Yes |
| Analytics | |
| NVR Built-in Analytics | Smart Intrusion Protection (detect people, vehicles entering/exiting area or crossing the line), Smart Motion Detection (detect when the people, vehicles or other objects move in the predefined area), Face Comparison, Face Detection |
| NVR Analytics Maximum Channels | Smart Intrusion Protection: 2 channels |
| Deep Learning AI | 2.0 |
| Object Recognition Database | Vehicle Picture Capacity: 25,000 |
| Analytics from Camera | Receive analytics based events from the cameras and respond to the events: Face Detection; Smart Motion Detection (People Detection, Vehicle Detection); Smart Intrusion Protection (Intrusion Detection, Line Crossing Detection, Enter Area Detection, Exit Area Detection); People Counting (People Line Counting, People Area Counting, People Flow Counting, Crowd Detection); Object Recognition; Traffic Monitoring |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTSP, SMTP, UPnP, TLS 1.2, TLS 1.3, SNMP, IEEE 802.1X |
| Ethernet Port | Total ports: 17 port(s) Non-PoE: 1 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector PoE: 16 port(s), Ethernet (10/100 Base-T), RJ-45 connector |
| Maximum Outgoing Throughput | 128 Mbps |
| Security | TLS v1.2, TLS v1.3 encrypted communication |
| Recording | |
| Maximum Recording Throughput | 160 Mbps |
| Search & Playback | |
| Synchronized Playback | 16 channels |
| Smart Search | Set ROI and look for the people and vehicles appearing in the ROI in the past recordings (requires cameras with Smart Motion Detection feature) |
| Forensic Search | Select target object (people, vehicle) and search for the similar object through all the channels |
| Object Visual Tracking | Support, View thumbnails generated by Forensic Search and playback by time sequence |
| System | |
| Server Operating System | Embedded Linux |
| USB | 1-Port USB 2.0, 1-Port USB 3.0 |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Storage | |
| Storage Bay | SATA, Max. 2 Disk(s) (without storage disks) |
| HDD Size | 3.5" |
| Maximum Recording Capacity | 24TB x2 |
| RAID Level | Hardware RAID (on Board) 0, 1 |
| Interface | |
| Serial Port | 1 x RS-485 |
| Audio Interface | 1/1, RCA Jack |
| Digital Input/Output | 8/2 |
| Local Display Interface | HDMI x 1, VGA x 1 |
| General | |
| PoE Output | Maximum 30 Watts per port |
| PoE Power Budget | Maximum 240 W |
| Power Source | AC 100-240V |
| Dimensions | (W x H x D): 380mm x 53mm x 322mm (15.0" x 2.09" x 12.7") Rack Space: 1U |
| Bundled Accessories | USB Mouse |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Operating Humidity | 10% - 90% RH, non-condensing |
| Approvals | CE Class A, FCC Class A, BSMI, UL Listed |
| Color | Black |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
