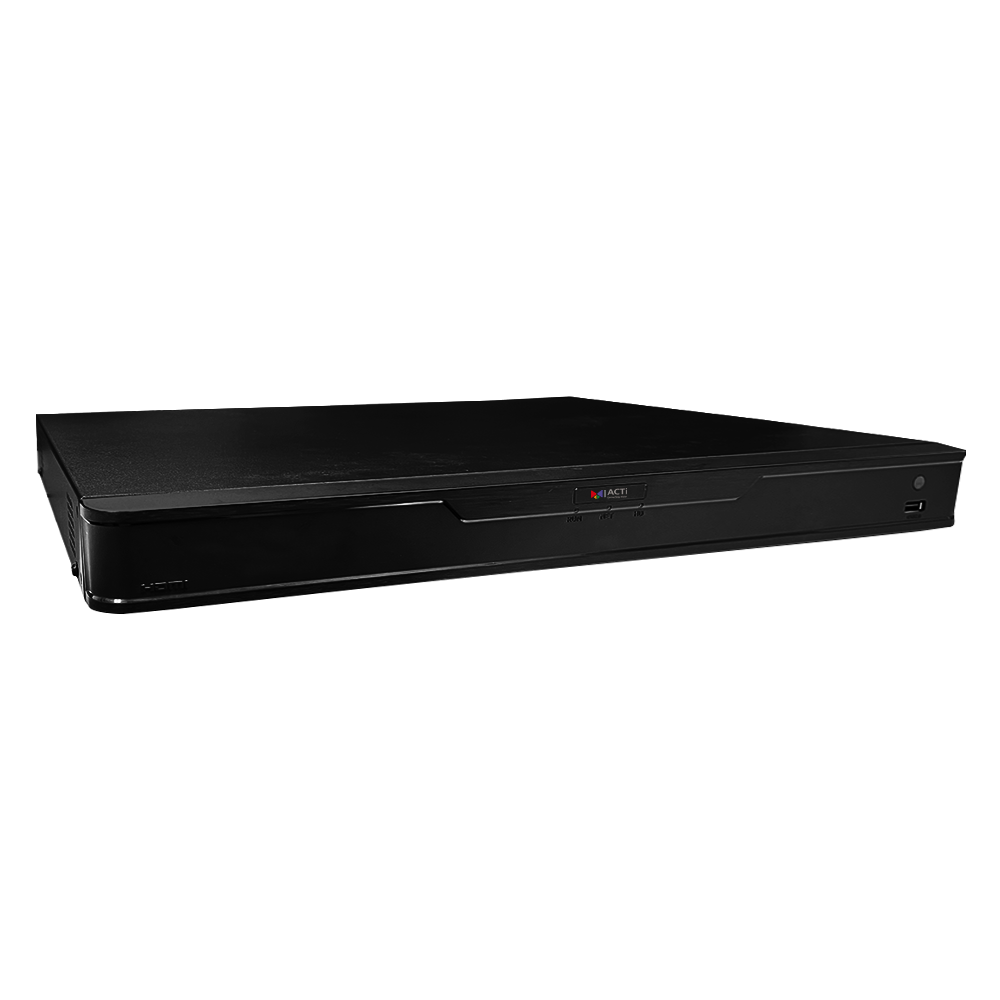

ACTi - KNR-420 - 32-Channel 4-Bay RAID 1U Rackmount Standalone NVR
Product Overview
This 32-channel 4-bay RAID 1U rackmount standalone NVR is designed for centralized surveillance recording and video management. It supports onboard hardware RAID, built-in Core Analytics, forensic search, smart search, object visual tracking, and multi-browser access for efficient security operations.
Key Configuration
32-channel rackmount standalone NVR with 32 free licenses; 4 storage bays with onboard hardware RAID 0, 1, 5, 6, and 10; 1U rackmount form factor; Embedded Linux with ARM-based embedded SoC; audio, HDMI x 1, and VGA x 1 interfaces.
Key Features
• Supports up to 32 video channels with 32 free licenses included
• Four storage bays support scalable recording capacity
• Onboard hardware RAID supports RAID 0, 1, 5, 6, and 10 configurations
• Built-in Core Analytics, Forensic Search, and Smart Search support efficient video review
• Object Visual Tracking and multi-browser support improve investigation and access workflows
Technical Context
The NVR combines embedded standalone recording with RAID-based storage options and analytics-assisted search tools. Forensic Search, Smart Search, and Object Visual Tracking help operators locate relevant activity more efficiently across recorded surveillance footage.
Installation Notes
The 1U rackmount design is intended for installation in standard equipment racks. HDMI and VGA outputs allow local monitor connection for setup, live viewing, or system operation.
| Product Profile | |
| Product Type | Standalone NVR |
| Maximum Number of Video Devices | 32 |
| Maximum Number of Clients | Local: 1, Remote: 128 |
| Supported Screen Resolution | HDMI: 3840x2160 (30Hz), 1920x1080 (60Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) VGA: 1920x1080 (60Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) |
| Hardware | |
| System Architecture | Embedded SoC-based (ARM platform) |
| CPU | ARM-based embedded SoC |
| License | |
| License Required | No |
| Free License | 32 |
| Live View | |
| Display Layout Mode | 1, 4, 6, 8, 9, 16, 25, 32 |
| Fisheye Dewarping | Yes (Live View, Playback) |
| Local Live View Performance | [Smart IVA On] 2ch (up to 30 fps at 4K 3840 x 2160) 4ch (up to 30 fps at 4MP) 8ch (up to 30 fps at 2MP 1920 x 1080) 16ch (up to 30 fps at 720p) 32ch (up to 30 fps at D1) [Smart IVA Off] 2ch (up to 30 fps at 12MP) 2ch (up to 30 fps at 4K 3840 x 2160) 4ch (up to 30 fps at 4MP) 10ch (up to 30 fps at 2MP 1920 x 1080) 20ch (up to 30 fps at 720p) 32ch (up to 30 fps at D1) |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client |
| Instant Playback | Instant Playback in live view window |
| Analytics | |
| NVR Built-in Analytics | Smart Motion Detection (detect when the people, vehicles or other objects move in the predefined area), Face Comparison, Face Detection |
| NVR Analytics Maximum Channels | Smart Intrusion Protection: 2 channels Smart Motion Detection: 4 channels |
| Object Recognition Database | Face Picture Capacity: 50,000 Vehicle Picture Capacity: 25,000 |
| Maximum Snapshot Capacity | Captured Face Snapshots: 500,000 Captured Vehicle Snapshots: 500,000 Captured Object Snapshots via Smart Intrusion Protection: 500,000 |
| Analytics from Camera | Receive analytics based events from the cameras and respond to the events: Face Detection; Face Comparison; Smart Motion Detection (People Detection, Vehicle Detection); Smart Intrusion Protection (Intrusion Detection, Line Crossing Detection, Enter Area Detection, Exit Area Detection); Vehicle Detection (LPR); Traffic Monitoring |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711 A-law, G.711 u-law |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTSP, SMTP, UPnP, TLS 1.2, TLS 1.3, SNMP, IEEE 802.1X |
| Ethernet Port | 2 x Ethernet (1000 Base-T), RJ-45 connector |
| Maximum Outgoing Throughput | 128 Mbps |
| Security | TLS v1.2, TLS v1.3 encrypted communication |
| Recording | |
| Maximum Recording Throughput | 160 Mbps |
| Search & Playback | |
| Playback Control | Continuous forward and backward playback with speeds 1/8x, 1/4x, 1/2x, 1x, 2x, 4x, 8x, 16x, 32x, 64x, 128x, play, pause, stop |
| Synchronized Playback | 16 channels |
| Smart Search | Set ROI and look for the people and vehicles appearing in the ROI in the past recordings (requires cameras with Smart Motion Detection feature) |
| Forensic Search | Select target object (people, vehicle) and search for the similar object through all the channels |
| Object Visual Tracking | Support, View thumbnails generated by Forensic Search and playback by time sequence |
| System | |
| Server Operating System | Embedded Linux |
| USB | 2-Port USB 2.0, 1-Port USB 3.0 |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 10 or newer, Google Chrome, Firefox, Microsoft Edge |
| Storage | |
| Storage Bay | SATA, Max. 4 Disk(s) (without storage disks) |
| HDD Size | 3.5" |
| Maximum Recording Capacity | 24TB x4 |
| RAID Level | Hardware RAID (on Board) 0, 1, 5, 6, 10 |
| Interface | |
| Audio Interface | 1/1, RCA Jack |
| Local Access | USB Mouse |
| Local Display Interface | HDMI x 1, VGA x 1 |
| General | |
| Power Source | DC 12V |
| Dimensions | (W x H x D): 440mm x 48mm x 350mm (17.3" x 1.9" x 13.8") Rack Space: 1U |
| Bundled Accessories | USB Mouse, Power Adapter |
| Fan | Yes |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Operating Humidity | 10% - 90% RH, non-condensing |
| Approvals | CE, FCC, BSMI, UL Listed |
| Color | Black |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
