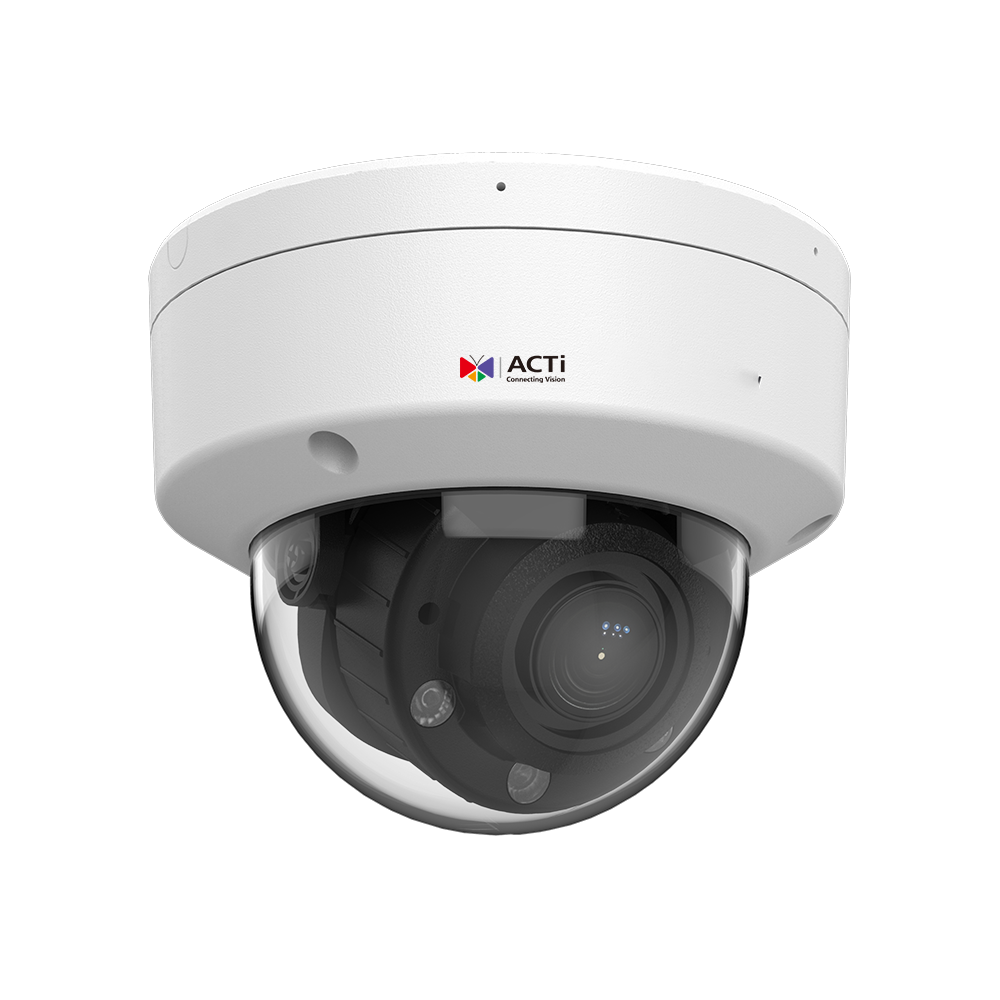

ACTi - L83 - 6MP Deep Learning AI 4.3x Outdoor Zoom Dome with IR LED 65m, White LED 55m, Smart Dual Light, WDR 140dB
Product Overview
This 6MP deep learning AI outdoor zoom dome camera is designed for advanced surveillance applications that require high-resolution video, flexible zoom coverage, and reliable outdoor performance. It combines a 4.3x zoom lens, Smart Motion Detection, 65m IR illumination, 55m White LED lighting, Smart Dual Light, and 140 dB Extreme WDR for clear monitoring in demanding lighting conditions.
Key Configuration
6 Megapixel outdoor zoom dome camera; 4.3x zoom lens with Deep Learning AI; IR LED range up to 65m and White LED range up to 55m with Smart Dual Light; Extreme WDR rated at 140 dB; DORI range of 68-200 / 27-79 / 13.6-40 / 6.8-20m.
Key Features
• Deep Learning AI supports intelligent surveillance analysis
• Smart Dual Light combines IR and White LED illumination for flexible low-light operation
• 4.3x zoom lens supports adaptable scene framing and monitoring
• Smart Motion Detection helps identify relevant movement events
• IP68 weatherproof, IK10 vandal-proof, UL Listed, and Taiwan IoT Cybersecurity certified design supports secure outdoor deployment
Technical Context
The camera uses 6MP resolution with Deep Learning AI and Smart Motion Detection to improve event accuracy and scene detail. Extreme WDR helps preserve visibility across bright and shadowed areas, while Smart Dual Light combines infrared and white illumination to support monitoring in low-light or nighttime conditions.
Installation Notes
The IP68 weatherproof and IK10 vandal-proof ratings support installation in exposed outdoor or public-facing locations. DORI planning values of 68-200 / 27-79 / 13.6-40 / 6.8-20m can be used to estimate detection, observation, recognition, and identification coverage during camera placement.
| Product Profile | |
| Product Type | Zoom Dome |
| Application Environment | Outdoor |
| Maximum Resolution | 6MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.4 " |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.003 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED (850 nm) |
| IR Working Distance | 65m |
| White LED | Yes |
| White LED Working Distance | 55m |
| Smart Dual Light | Yes. Default IR; White Light can be enabled through configuration. |
| Electronic Shutter | 1/3-1/100000 second (manual mode); 1/3-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f2.8-12mm |
| Aperture | F1.6 |
| Zoom Ratio | 4.3x optical zoom |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Horizontal Viewing Angle | 106° - 35.6° |
| Vertical Viewing Angle | 55.9° - 20° |
| Viewing Angle Adjustment | Pan: 0°-355°, Tilt: 0°-70°, Rotation: 0°-355° |
| Video | |
| Compression | H.265 Adaptive Stream, H.264 Adaptive Stream, MJPEG |
| Maximum Frame Rate vs. Resolution | 20 fps at 3200 x 1800 20 fps at 3072 x 2048 20 fps at 2592 x 1944 20 fps at 2688 x 1520 20 fps at 2560 x 1920 30 fps at 2560 x 1440 30 fps at 1920 x 1080 30 fps at 1280 x 960 30 fps at 1280 x 720 30 fps at 640 x 480 30 fps at 640 x 360 30 fps at 352 x 240 |
| Bit Rate | 32Kbps - 8Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous triple streams |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | Extreme WDR (140 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Highlight compensation (HLC), Brightness, Contrast, Sharpness, Saturation, Automatic gain control (AGC) |
| Privacy Mask | 4 configurable regions |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), Tampering Detection |
| Analytics | |
| Deep Learning AI | 1.0 |
| Audio | |
| Audio Type | 2-way, Built-in Microphone, Line-in, Line-out |
| Audio Compression | G.711, G.726, PCM |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTCP, RTSP, NTP, IGMP, ICMP, SMTP, FTP, QoS, SSL/TLS |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Maximum User Connections | 32 |
| Security | IP address filtering, HTTPS encryption, TLS 1.2 encrypted communication, Password protected user level |
| Detection Range | |
| Observation Range | Detection: 68m-200m Observation: 27m-79m Recognition: 13.6m-40m Identification: 6.8m-20m |
| Event | |
| Event Trigger | Video motion detection, Sound detection, Tampering detection |
| Event Response | Notify control center, E-mail notification with snapshots, Upload snapshot to FTP server, Save video or snapshot to storage |
| System | |
| System Log | Support |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile T, Profile G, Profile M |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| Interface | |
| Digital Input/Output | 1/1 |
| Operating Button | Reset Button |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 9.6 W (DC), 12 W (PoE) |
| Weight | 540g (1.2lb) |
| Dimensions | (Ø x H): 121.5mm x 97.6mm (4.78" x 3.84") |
| Environmental Casing | Weatherproof (IP68), Vandal proof (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 3 years. |
| Starting Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Storage Temperature | -40 °C ~ 60 °C (-40 °F ~ 140 °F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Approvals | CE Class A, FCC Class A, IP68, IK10, UL Listed, Taiwan IoT Cybersecurity Certification Level 1 (CNS-16120) |
| Color | White |
| Material | Base Plate: Metal Dome Cover: Plastic |
| Real-time Clock (RTC) | No |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
