ACTi - PLOC-2005 - Magnet Lock + Bracket

Product Overview

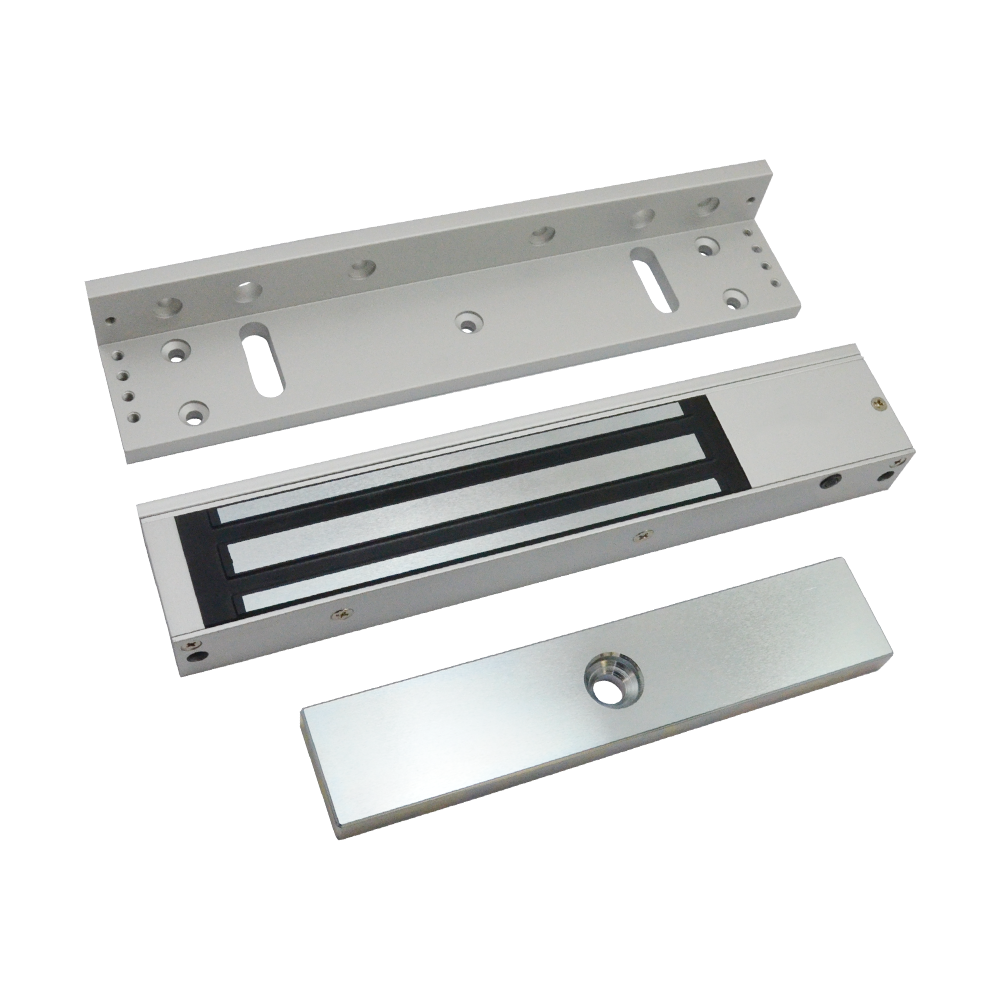

The PLOC-2005 is a magnet lock and bracket set designed for access control door locking applications. Based on the Soyal AR-1200M with AR-1200MZL bracket configuration, it provides 1200 lb holding force, door monitoring output, and LED status indication.

Key Configuration

Magnet lock and bracket product type; original manufacturer Soyal; original model AR-1200M + AR-1200MZL; 1200 lb / 500 kg holding force; door monitoring output with LED indicator.

Key Features

• Magnet lock and bracket set supports secured door locking applications
• 1200 lb / 500 kg holding force provides strong electromagnetic locking performance
• Door monitoring output supports lock or door status supervision
• LED indicator provides visual status feedback
• Bracket configuration supports installation with compatible door and frame setups

Technical Context

The electromagnetic lock provides holding force by securing the door with a magnetic locking mechanism. Door monitoring output allows the access control system to receive status feedback, while the LED indicator provides local visual confirmation of operating state.

Installation Notes

The PLOC-2005 includes a magnet lock and bracket configuration intended for access control door installation. The bracket should be matched to the door and frame arrangement to support proper alignment and holding force performance.
