ACTi - Q170 - 4MP f2.1mm Thermal Cube with Basic WDR
Product Overview

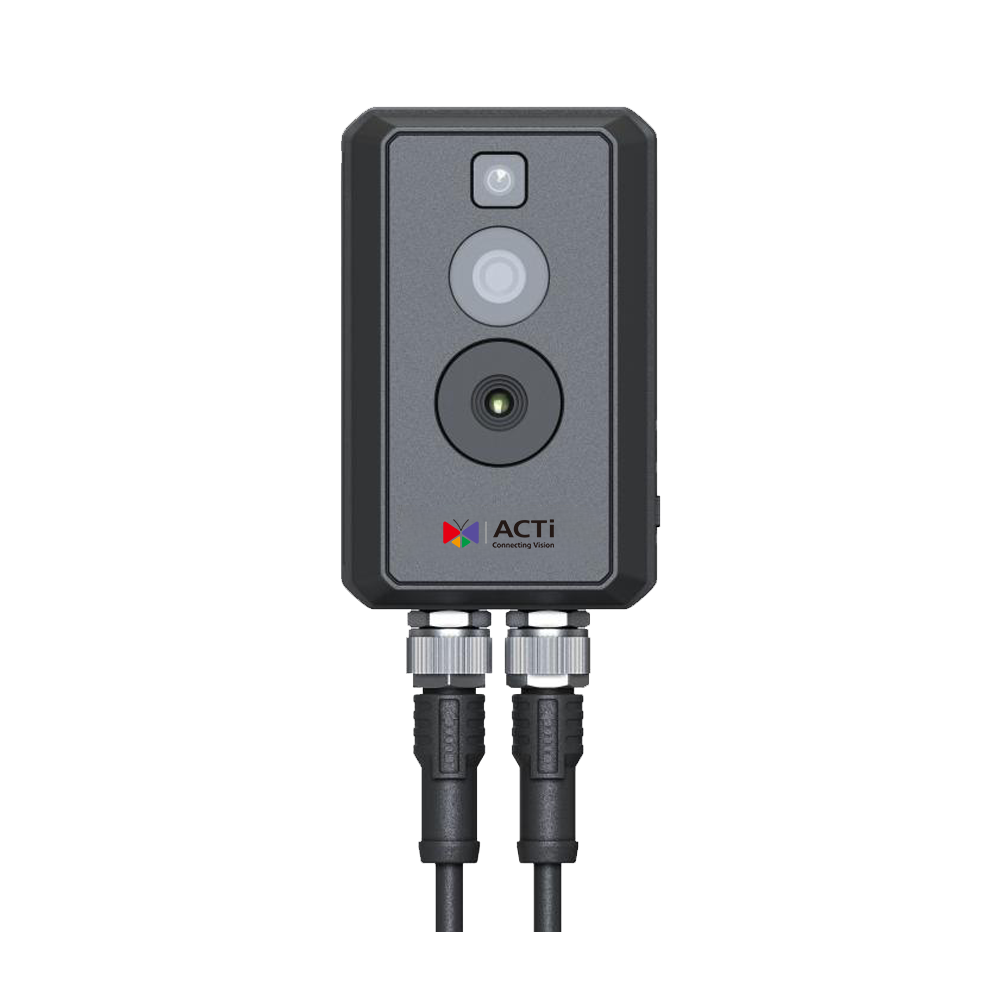

The ACTi Q170 is a rugged outdoor 4MP thermal cube camera designed for specialized surveillance in harsh environments. It combines thermal surveillance capabilities with overheating detection, IP68 weatherproof protection, and IK10 vandal resistance for security and industrial monitoring applications.
Key Configuration
4 Megapixel thermal cube camera; f2.1mm lens with F2.2 aperture; DORI range of 28 / 11.3 / 5.6 / 2.8m; IP68 weatherproof and IK10 vandal-proof housing; NETD sensitivity of less than 40mK.
Key Features
• Thermal surveillance supports detection in darkness, smoke, or difficult visibility conditions
• Overheating detection supports industrial and fire hazard monitoring applications
• 4MP imaging provides detailed surveillance coverage
• Basic WDR helps improve image balance in challenging lighting conditions
• IP68 and IK10 ratings support outdoor and vandal-prone installations
Technical Context
The Q170 uses thermal sensitivity with NETD <40mK to detect small temperature differences in a scene. This makes it suitable for identifying heat signatures, overheating equipment, and fire-related risks where standard visible-light cameras may be limited.
Installation Notes
The camera is built for outdoor deployment with IP68 weatherproofing and IK10 vandal resistance. Its listed DORI values are 28 / 11.3 / 5.6 / 2.8m, which should be considered when positioning the camera for detection, observation, recognition, or identification coverage.
| Product Profile | |
| Product Type | Thermal Cube |
| Product Application | Overheating Detection, Thermal Surveillance |
| Application Environment | Outdoor |
| Maximum Resolution | 4MP |
| Image Sensor | Progressive Scan CMOS + Thermal sensor |
| Sensor Size | Optical: 1/5" |
| Effective Pixels | Thermal: 256(H) X 192(V) Optical: 2688(H) X 1520(V) |
| Pixel Interval | 12 μm |
| Spectral Range | 8-14 μm |
| Thermal Sensitivity | NETD <40mK at F1.0 |
| Spatial Resolution | 5.71 mrad |
| Day / Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.06 lux at F2.2 (AGC on); B/W: 0 lux (Light on) |
| Mechanical IR Cut Filter | Yes |
| S/N Ratio | 75 dB |
| Live View | |
| Digital Zoom | Yes |
| Lens | |
| Number of Lenses | 2 Lenses |
| Focal Length | Fixed focal, f2.1mm (Thermal camera) Fixed focal, f1.4mm (Visual camera) |
| Aperture | Thermal camera: F1.0 Visual camera: F2.2 |
| Horizontal Viewing Angle | Thermal camera: 90° Visual camera: 96.9° |
| Vertical Viewing Angle | Thermal camera: 64.2° Visual camera: 77.2° |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | Visual camera: 25 fps at 2688 x 1520; 25 fps at 704 x 576 Thermal camera: 25 fps at 1280 x 960; 25 fps at 704 x 576 |
| Multi-Streaming | Simultaneous dual streams |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | Basic WDR |
| Image Orientation | Mirror, Rotation (Corridor mode) (90⁰) |
| Image Enhancement | Brightness, Contrast, Automatic gain control (AGC) |
| Built-in Analytics | Tampering Detection, Temperature Detection |
| Network | |
| Ethernet Port | 1 x Ethernet (10/100/1000 Base-T), RJ-45 connector |
| Temperature Measurement | |
| Temperature Measurement Rules | 3 types (point, area, line), up to 21 rules in total (10 points, 10 areas, 1 line) |
| Temperature Range | -20°C ~ 150°C (-4°F ~ 302°F), 0°C ~ 550°C (32°F ~ 1022°F) |
| Temperature Accuracy | ±2°C, ±2% |
| Detection Range | |
| Triggering Temperature Notification | Object 0.2 x 0.2m: 7m Object 0.5 x 0.5m: 17.5m |
| Observation Range | Detection: 28m Observation: 11.3m Recognition: 5.6m Identification: 2.8m |
| Interface | |
| Serial Port | 1 x RS-485 |
| General | |
| Power Source | DC 12V, PoE Class 2 (IEEE802.3af) |
| Power Consumption | 5 W (DC) |
| Weight | 300g (0.66lb) |
| Dimensions (W x H x D) | 56mm x 38.9mm x 111.2mm (2.20" x 1.53" x 4.38") |
| Environmental Casing | Weatherproof (IP68), Vandal proof (IK10) |
| Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Real-time Clock (RTC) | Yes |
