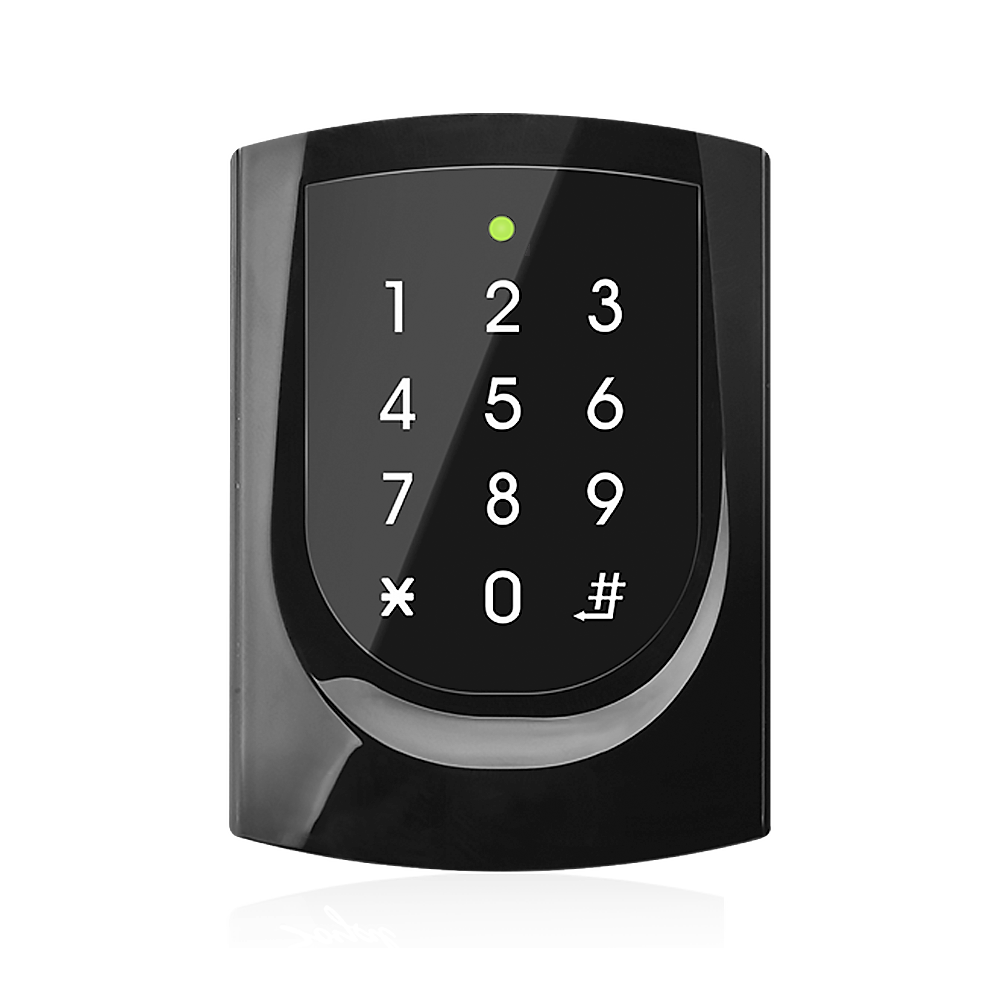

ACTi - R11C-310 - RFID Reader and Controller with Bundled 16000 Card Database
Product Overview
This RFID reader and controller is designed for indoor access control applications using RFID card detection. It combines reader and access controller functions and includes a bundled 16,000-card database for managing authorized credentials.
Key Configuration
Reader and controller product type; access controller and RFID reader device functions; bundled database capacity for up to 16,000 cards; designed for RFID card detection; intended for indoor application environments.
Key Features
• Combines RFID reader and access controller functions
• Bundled 16,000-card database supports large credential capacity
• Designed for RFID card detection applications
• Supports access control use at secured entry points
• Indoor application design suits controlled building environments
Technical Context
The device integrates RFID reading and access controller functionality, allowing card credentials to be detected and managed through the same access control unit. The bundled card database supports local credential management for indoor security deployments.
Installation Notes
This reader and controller is intended for indoor installation environments where RFID card detection is required for access control.
| Product Profile | |
| Product Type | Reader and Controller |
| Device Type | Access Controller RFID Reader |
| Product Application | RFID Card Detection |
| Application Environment | Indoor |
| Video | |
| Built-in Analytics | RFID Recognition |
| Network | |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Event | |
| Event Log | 32,000 |
| Access Control Functionality | |
| Access Mode | Card only, Card or Password, Card and Password |
| Wiegand Format | Wiegand 26-64 |
| Wiegand Output | Wiegand Data 0, Data 1 and Arming Output, Duress Output share the same terminal. |
| RFID Card | |
| RFID Frequency | 125 KHz, 13.56 MHz |
| RFID Standard | [125 kHz] ISO 18000-2: EM4001 and EM4095 compatible [13.56 Mhz] ISO 14443 Mifare DESFire EV1, EV2 ISO 15693 FeliCa |
| Reading Range | 2-15cm |
| RFID Options | EM, Mifare |
| Storage | |
| User Database | Card Capacity: 16000 |
| Interface | |
| Button | Illuminated touch-panel keypad |
| Serial Port | 1 x RS-485 |
| Digital Input | Egress x 2, Door contact x 2 |
| Relay Output | Door lock x 1 |
| Alarm Output | Open Collector x 1 |
| Wiegand Port | Wiegand Data 0 Input x 1, Wiegand Data 1 Input x 1, Red LED Output x 1, Green LED Output x 1, Beeper Output x 1 |
| Open Collect Output | Arming Output x 1, Security Trigger Signal x 1, Duress Output x 1 |
| Tamper Switch | 1 Form C/ 1000mA / 30VDC |
| Indicator | LED, Buzzer |
| General | |
| Power Source | DC 9-24V (adapter not included) |
| Power Consumption | 5 W (DC) |
| Dimensions | (W x H x D): 110mm x 79mm x 26mm (4.33" x 3.11" x 1.02") |
| Operating Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Operating Humidity | 0% - 90% RH, non-condensing |
| Color | Black |
| Material | Plastic (PC) |
| Real-time Clock (RTC) | Yes |
| Warranty | 1 Year(s) |
