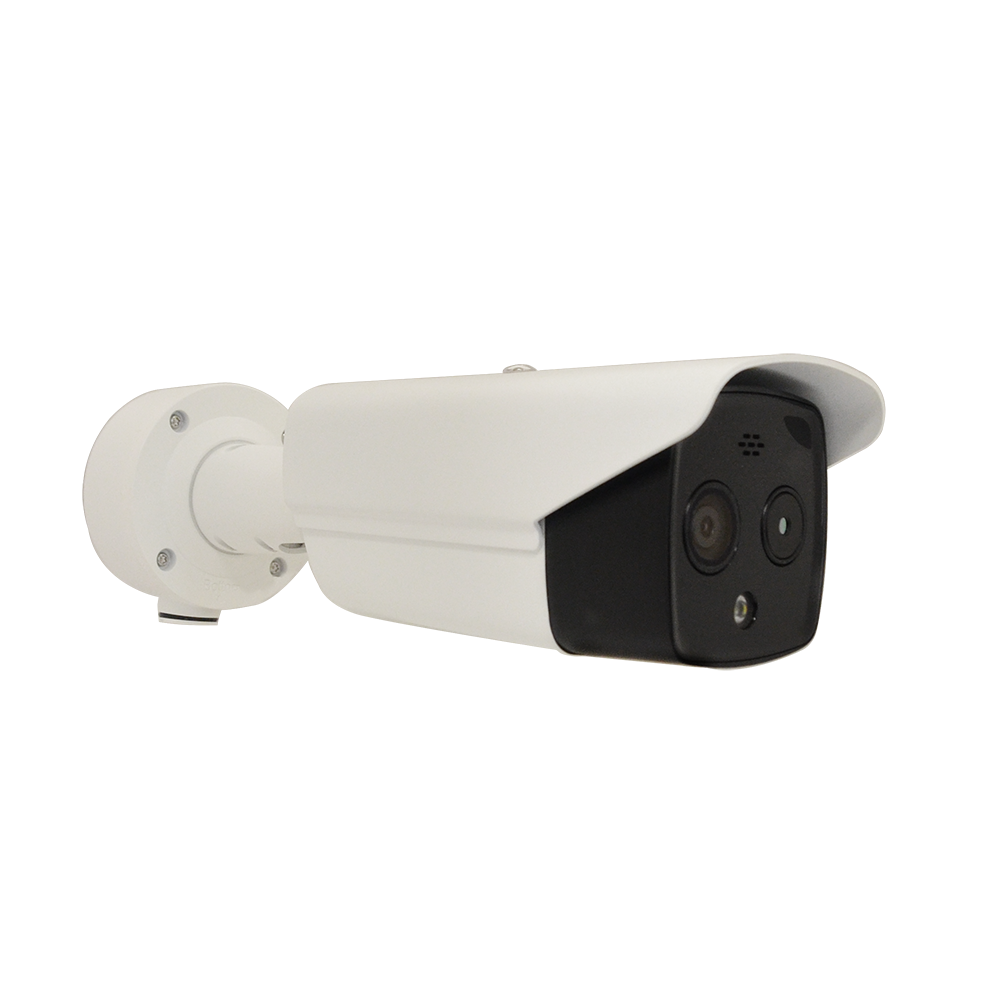

ACTi - VMGB-359-P1 - 4MP f3.1mm Thermal Bullet with IR LED 40m, White LED 40m, WDR 120dB
Product Overview
This 4MP thermal network bullet camera is designed for outdoor perimeter defense, thermal surveillance, and hazard detection. It combines a 4MP H.265 optical module with thermal monitoring, behavior analysis functions, 40m IR and white LED illumination, and rugged IP68/IK10-rated protection.
Key Configuration
4 Megapixel thermal bullet camera; f3.1mm lens with F1.6 aperture; IR LED and white LED ranges up to 40m; Superior WDR rated at 120 dB; NETD sensitivity of less than 40mK; fire detection range up to 31m.
Key Features
• Thermal surveillance supports heat-based monitoring in difficult visibility conditions
• Behavior analysis supports line crossing, intrusion, area enter, and area exit detection
• Overheating Detection and Fire Detection support safety and hazard monitoring
• 40m IR and white LED illumination support nighttime visible-image monitoring
• IP68 and IK10 ratings support outdoor and vandal-resistant deployment
Technical Context
The camera uses thermal surveillance with NETD <40mK to detect temperature differences in a monitored scene. Its behavior analysis functions support perimeter defense applications, while overheating and fire detection help identify equipment or environmental hazards, with fire detection specified up to 31m.
Installation Notes
The camera is designed for outdoor installation with IP68 weatherproof and IK10 vandal-proof protection. Position the camera according to the target perimeter zone and thermal detection area, considering the 31m listed fire detection range.
| Product Profile | |
| Product Type | Thermal Bullet |
| Product Application | Overheating Detection, Fire Detection, Thermal Surveillance |
| Application Environment | Outdoor |
| Maximum Resolution | 4MP |
| Description | Thermal network Bullet camera with 4MP H.265 optical module, for behavior analysis functions as Line crossing, Intrusion and area enter and exit that are for perimeter defense purpose. |
| Image Sensor | Progressive Scan CMOS + Thermal sensor |
| Sensor Size | Optical: 1/2.7" |
| Effective Pixels | Thermal: 160(H) X 120(V) Optical: 2688(H) X 1520(V) |
| Pixel Interval | 17 μm |
| Spectral Range | 8-14 μm |
| Thermal Sensitivity | NETD <40mK at F1.1 |
| Spatial Resolution | 5.48 mrad |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.0089 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 40m |
| White LED | Yes |
| White LED Working Distance | 40m |
| Electronic Shutter | 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Number of Lenses | 2 Lenses |
| Focal Length | Fixed focal, f3.1mm (Thermal camera) Fixed focal, f4.0mm (Visual camera) |
| Aperture | (Thermal camera) F1.1 (Visual camera) F1.6 |
| Focus | Fixed focus |
| Horizontal Viewing Angle | (Thermal camera) 50° (Visual camera) 84° |
| Vertical Viewing Angle | (Thermal camera) 37.2° (Visual camera) 44.8° |
| Video | |
| Compression | H.265 Adaptive Stream, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | (Visual camera) 30 fps at 2688 x 1520 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 704 x 480 (Thermal camera) 25 fps at 1280 x 720 25 fps at 704 x 576 25 fps at 640 x 480 25 fps at 352 x 288 25 fps at 320 x 240 |
| Multi-Streaming | Simultaneous dual streams |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Built-in Analytics | People Detection, Vehicle Detection, Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection, People Line Crossing Detection, People Enter Area Detection, People Exit Area Detection, Vehicle Line Crossing Detection, Vehicle Enter Area Detection, Vehicle Exit Area Detection, Intrusion Detection (Forbidden Area Detection), Temperature Detection, Smoking Detection, Sun-reflection Filter, Fire Detection (Temperature-based with threshold setup) |
| Audio | |
| Audio Type | 2-way, Mic-in, Stereo Line-in, Built-in Speaker, Line-out |
| Audio Compression | G.711, G.722.1, G.726, PCM, MP2L2 |
| Network | |
| Network Protocol & Service | IPv4/v6, TCP, UDP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SNMP, TLS 1.2, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Temperature Measurement | |
| Temperature Measurement Rules | 3 types (point, area, line), up to 21 rules in total (10 points, 10 areas, 1 line) |
| Temperature Range | -20°C ~ 150°C (-4°F ~ 302°F) |
| Temperature Accuracy | ±8°C (14.4°F) |
| Detection Range | |
| Triggering Analytics Event Notification | (People 1.8x0.5m) 15m (Vehicle 1.4x4.0m) 43m |
| Triggering Temperature Notification | (Object 0.2x0.2m) 6.82m (Object 1x1m) 34.1m |
| Triggering Fire Detection Event Notification | (Object 0.2x0.2m) 31m |
| Triggering Smoking Detection Event Notification | 3.1m |
| Observation Range | Detection: People 91m; Vehicle 280m Recognition: People 23m; Vehicle 70m Identification: People 11m; Vehicle 35m (People: 1.8 x 0.5m) (Vehicle: 1.4 x 4.0m) |
| Event | |
| Event Trigger | External device through digital input, Sound detection, Temperature Exception Detection (up to 10 points, 10 areas and 1 line), Intelligent event detection |
| Event Response | Send E-mail Notification, Flashing alarm light, Play alert sound, Save video to storage, Activate external device through digital output |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Interface | |
| Serial Port | 1 x RS-485 |
| Audio Interface | 1/1, 3.5mm Phone Jack |
| Analog Video Output | 1 x BNC connector, for installation only |
| Digital Input/Output | 2/2 |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 6 W (DC), 6.5 W (PoE) |
| Weight | 1760g (3.88lb) |
| Dimensions | (L x W x H): 358.3mm x 113.5mm x 115.2mm (14.10" x 4.47" x 4.53") |
| Environmental Casing | Weatherproof (IP68), Vandal proof metal casing (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 3 years. |
| Operating Temperature | -40°C ~ 65°C (-40°F ~ 149°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Approvals | CE Class B, FCC Class B, IP68, IK10 (metal casing) |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
