ACTi - XNR-4200 - 64-Channel 6-Bay Rackmount Standalone NVR
Product Overview

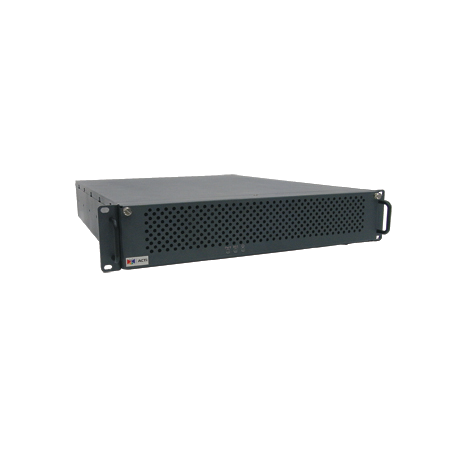

The ACTi XNR-4200 is a 64-channel, 6-bay rackmount standalone NVR for managing and recording ACTi camera systems. It runs Embedded Linux and supports ACTi cameras in all resolutions, with 16 free licenses included.
Key Configuration
64-channel standalone NVR; 6 storage bays; 16 free licenses; RAID 0, 1, 5, and 10 support; Embedded Linux operating system; Intel Core2 Quad Q9400 CPU; Web Client access; unlimited remote clients recommended up to 5.
Key Features
• Supports up to 64 cameras and 64 video devices
• 6-bay rackmount storage design
• RAID 0, 1, 5, and 10 support
• Embedded Linux platform with Intel Core2 Quad Q9400 processor
• Web Client access for remote system operation
Technical Context
The XNR-4200 supports all ACTi cameras in all resolutions, allowing mixed-resolution camera deployments within a 64-device system. RAID 0, 1, 5, and 10 support gives installers multiple storage configuration options depending on the required balance of capacity, redundancy, and performance.
Installation Notes
The rackmount standalone form factor is designed for equipment rack installation. The 6-bay storage layout supports centralized video recording, while Web Client access enables remote operation from supported client systems.
| Product Profile | |
| Product Type | Standalone NVR |
| Maximum Resolution | Support all ACTi cameras in all resolutions |
| Maximum Number of Cameras | 64 |
| Maximum Number of Video Devices | 64 |
| Maximum Number of Clients | unlimited remote (recommended up to 5) |
| Hardware | |
| CPU | Intel Core2 Quad Q9400 |
| License | |
| License required | No |
| Free License | 16 |
| Live View | |
| Digital Zoom | Yes |
| PTZ | |
| PTZ Control | 32 preset points |
| Joystick | USB based joystick supported |
| Video | |
| Compression | H.264, MPEG-4, MJPEG |
| Network | |
| Ethernet Port | 1 x RJ-45 connector |
| Recording | |
| Scheduled Recording | Yes |
| Event Recording | Yes |
| Manual Recording | Yes |
| Maximum Recording Throughput | 320 Mbps |
| Search & Playback | |
| Playback Control | Continuous forward and backward playback with speeds 1x-500x or frame-by-frame, pause, stop |
| Synchronized Playback | 4 channels |
| Event | |
| Event Trigger | External device through digital input, Video loss, Video Recovery |
| Event Response | Activate external device through digital output, Upload video or snapshot to FTP server, E-mail notification with snapshots, Go to PTZ preset point or preset tour, Play alert sound |
| System | |
| Permission control | Unlimited number of users, Multi-level permission, Camera group permission for different users |
| Server Operating System | Embedded Linux |
| Client PC Operating System | Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP |
| Mobile Client Program | Mobile device application (ACTi Mobile Client) supports Live View, Mobile device application (ACTi Mobile Client) supports PTZ Control, Mobile device application (ACTi Mobile Client) supports Event/time based search and playback, Supported device(s) iPhone |
| USB | 6-Port USB 2.0 |
| Language | Multi-Language |
| Integration | |
| Web Browser | IE 8.0 or newer |
| Storage | |
| Storage Bay | SAS/SATA, Max. 6 Disk(s) |
| RAID Level | RAID 0, 1, 5, 10 |
| Interface | |
| External Storage Interface | USB |
| General | |
| Weight | 11200g (24.69lb) |
| Operating Humidity | 10% - 85% RH, non-condensing |
| Remote Access | Web Client |
