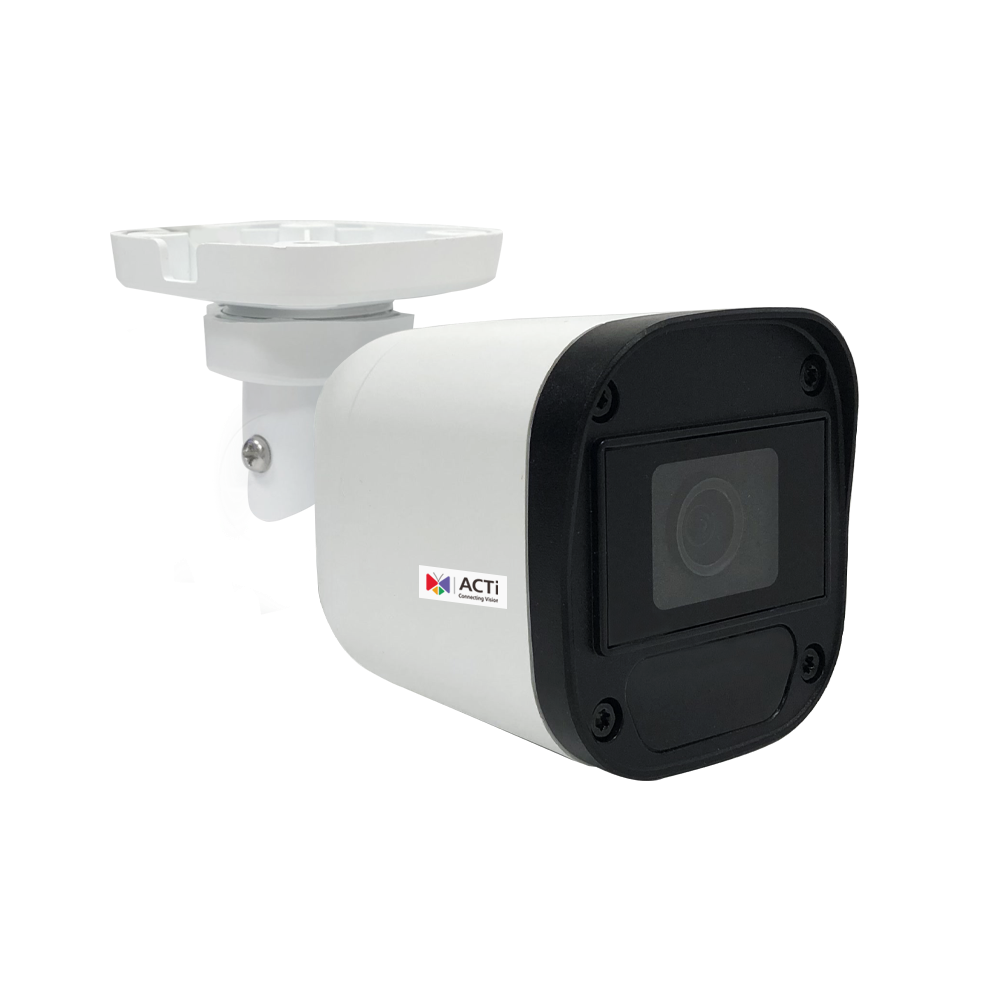

ACTi - Y35 - 2MP f2.8mm Analog Bullet with IR LED 30m, WDR 130dB
Product Overview
This 2MP analog bullet camera is designed for outdoor surveillance applications requiring fixed-lens coverage and reliable night visibility. It features a 2.8mm lens, 30m IR illumination, 130 dB Extreme WDR, and IP68 weatherproof protection for exterior installations.
Key Configuration
2 Megapixel analog bullet camera; f2.8mm fixed lens; IR LED range up to 30m; Extreme WDR rated at 130 dB; IP68 weatherproof housing.
Key Features
• 2MP analog video supports standard surveillance applications
• 2.8mm fixed lens provides broad scene coverage
• 30m IR LED illumination supports nighttime monitoring
• 130 dB Extreme WDR helps preserve image detail in high-contrast lighting
• IP68 weatherproof rating supports outdoor deployment
Technical Context
The camera combines analog video output with a fixed 2.8mm lens for straightforward surveillance coverage. Extreme WDR helps improve visibility in scenes with strong backlight or mixed lighting, while IR illumination enables monitoring in low-light or dark conditions.
Installation Notes
The camera is suitable for outdoor installation with IP68 weatherproof protection. Position the camera according to the desired fixed field of view and the listed 30m IR illumination range.
| Product Profile | |
| Product Type | Analog Bullet |
| Application Environment | Outdoor |
| Maximum Resolution | 2MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.02 lux at F2.0 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | IR LED |
| IR Working Distance | 30m |
| Electronic Shutter | 1/30-1/50000 second (NTSC), 1/25-1/50000 second (PAL) |
| Lens | |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F2.0 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount (M12) |
| Horizontal Viewing Angle | 90.5° |
| Vertical Viewing Angle | 49.6° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360° |
| Video | |
| Maximum Frame Rate vs. Resolution | (TVI/AHD/CVI) 30 fps at 1920 x 1080 25 fps at 1920 x 1080 30 fps at 1280 x 720 25 fps at 1280 x 720 (CVBS) NTSC, PAL |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Orientation | Flip, Mirror |
| Image Enhancement | White Balance, Automatic gain control (AGC) |
| Network | |
| Ethernet Port | No |
| Interface | |
| Analog Video Output | 1 x BNC connector, TVI/AHD/CVI/CVBS |
| General | |
| Power Source | DC 12V (adapter not included), Power Jack 2.1x5.5mm |
| Power Consumption | 2 W (DC) |
| Dimensions | (L x W x H): 139.7mm x 62.7mm x 65.4mm (5.5" x 2.5" x 2.6") |
| Environmental Casing | Weatherproof (IP68) |
| Mount Type | Pole Mount, Pendant |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 4KV |
| Approvals | CE, FCC, IP68 |
| Material | Plastic |
| Real-time Clock (RTC) | No |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
