ACTi - Z325 - 8MP Deep Learning AI ColorGuard f2.8mm Fixed Bullet with IR LED 50m, White LED 50m, Smart Dual Light, WDR 130dB
Product Overview

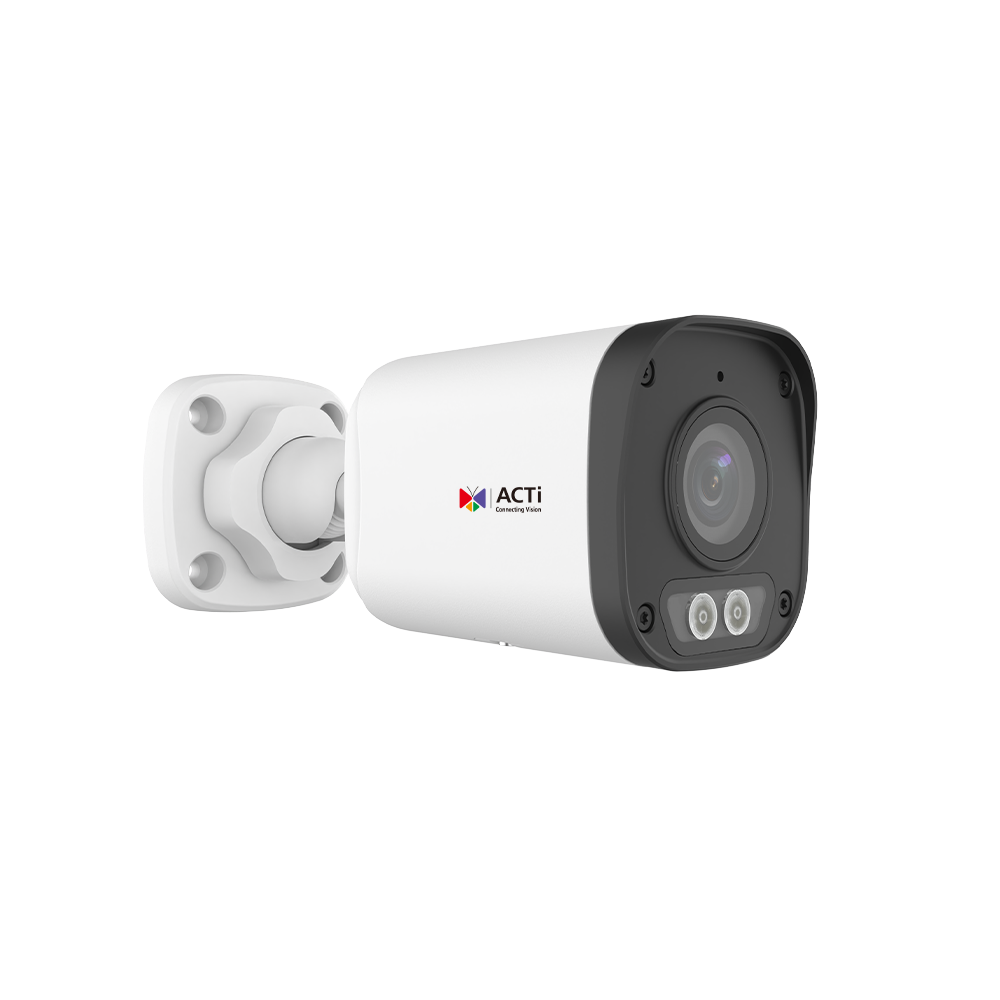

This 8MP deep learning AI ColorGuard fixed bullet camera is designed for high-resolution outdoor surveillance with intelligent detection and flexible nighttime illumination. It combines a 2.8mm fixed lens, 50m IR LED range, 50m white LED range, Smart Dual Light, and 130 dB Extreme WDR for detailed monitoring in challenging lighting conditions.
Key Configuration
8 Megapixel fixed bullet camera; f2.8mm fixed lens; Deep Learning AI with ColorGuard; IR LED range up to 50m and white LED range up to 50m; Extreme WDR rated at 130 dB; DORI range of 84.0 / 33.6 / 16.8 / 8.4m.
Key Features
• Deep Learning AI supports intelligent surveillance and event analysis
• ColorGuard supports enhanced color-focused monitoring in low-light scenes
• Smart Dual Light combines IR and white LED illumination for flexible nighttime visibility
• Smart Motion Detection helps identify relevant movement events
• IP68 weatherproof rating and UL Listing support outdoor security deployment
Technical Context
The camera combines 8MP resolution with Deep Learning AI, ColorGuard, and Smart Motion Detection to support detailed and intelligent surveillance. Its dual IR and white LED lighting supports both discreet infrared monitoring and visible-light color viewing, while 130 dB Extreme WDR helps maintain image detail in high-contrast scenes.
Installation Notes
The camera is intended for outdoor installation with IP68 weatherproof protection. Use the DORI values of 84.0 / 33.6 / 16.8 / 8.4m when planning detection, observation, recognition, and identification coverage.
| Product Profile | |
| Product Type | Fixed Bullet |
| Application Environment | Outdoor |
| Maximum Resolution | 8MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7" |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| ColorGuard | Yes |
| Minimum Illumination | Color: 0.005 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED (850 nm) |
| IR Working Distance | 50m |
| White LED | Yes |
| White LED Working Distance | 50m |
| Smart Dual Light | Yes. Default IR; White Light can be enabled through configuration. |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F1.6 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Horizontal Viewing Angle | 100.8° |
| Vertical Viewing Angle | 55.8° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360° |
| Video | |
| Compression | H.265 Adaptive Stream, H.264 Adaptive Stream, MJPEG |
| Maximum Frame Rate vs. Resolution | 20 fps at 3840 x 2160 30 fps at 2560 x 1440 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360 30 fps at 704 x 288 30 fps at 352 x 288 |
| Multi-Streaming | Simultaneous dual streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode)(±90⁰, 180⁰) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Highlight compensation (HLC), Defogging |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), Tampering Detection |
| Analytics | |
| Deep Learning AI | 1.0 |
| Audio | |
| Audio Type | 1-way, Built-in Microphone |
| Audio Compression | G.711 |
| Network | |
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, SSL, QoS, TLS 1.2 |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Detection Range | |
| Observation Range | Detection: 84.0m Observation: 33.6m Recognition: 16.8m Identification: 8.4m |
| Event | |
| Event Trigger | Video motion detection, Tampering detection, Sound detection |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| Interface | |
| Operating Button | No |
| General | |
| Power Source | DC 12V, PoE (IEEE802.3af) |
| Power Consumption | 5.3 W (PoE) |
| Weight | 250g (0.55lb) |
| Dimensions (L x W x H) | 167mm x 67mm x 67mm (6.6" x 2.6" x 2.6") |
| Environmental Casing | Weatherproof (IP68) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 4KV |
| Approvals | CE Class B, FCC Class B, IP68, UL Listed |
| Material | Metal Plastic |
| Real-time Clock (RTC) | No |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
