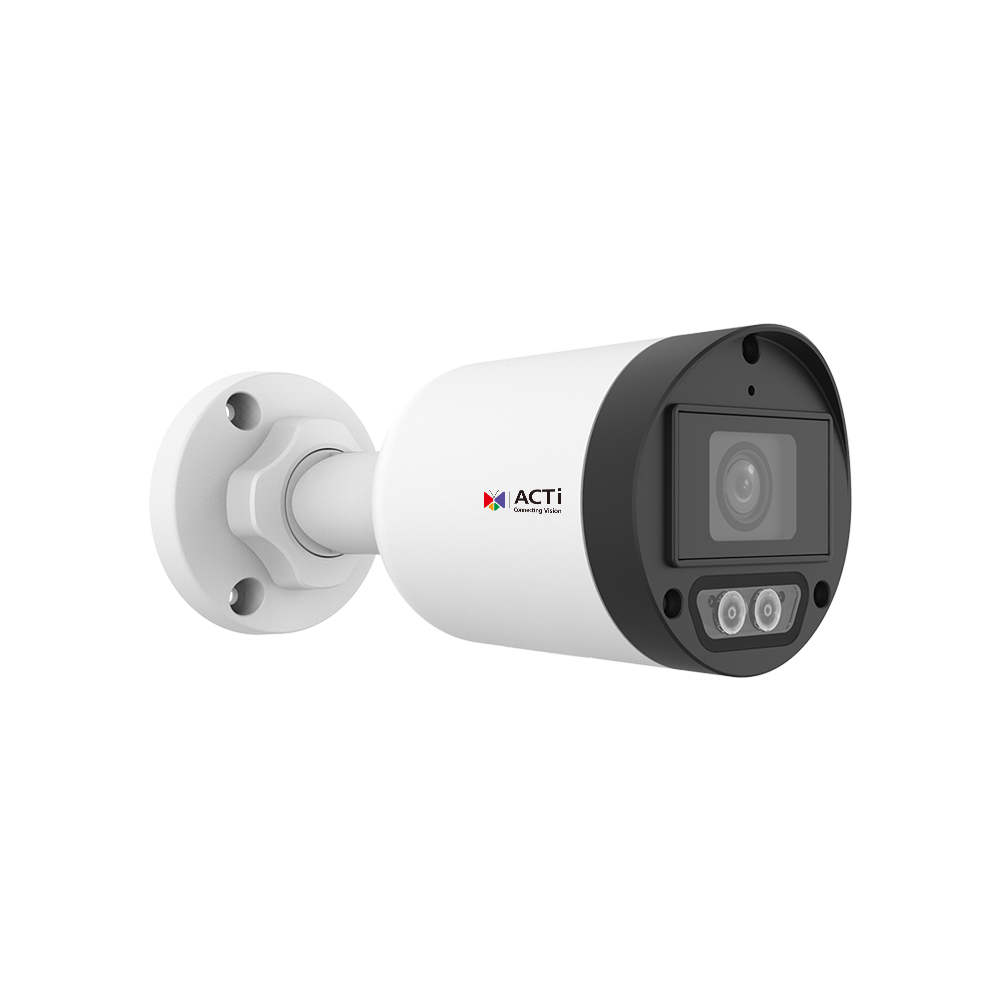

ACTi - Z332 - 5MP Deep Learning AI ColorGuard 2.8mm Outdoor Fixed Bullet Camera with 50m IR Illumination, 50m White LED, Smart Dual Light, and 130dB Wide Dynamic Range.

Product Overview

This 5MP deep learning AI ColorGuard fixed bullet camera is designed for outdoor surveillance with high-resolution imaging, intelligent detection, and flexible day/night visibility. It combines a 2.8mm fixed lens, 50m IR and white LED illumination, Smart Dual Light, and 130 dB Extreme WDR for reliable monitoring in challenging lighting conditions.

Key Configuration

5 Megapixel fixed bullet camera; f2.8mm fixed lens; Deep Learning AI with ColorGuard; IR LED range up to 50m and white LED range up to 50m; Extreme WDR rated at 130 dB; DORI range of 56 / 22.6 / 11.2 / 5.6m.

Key Features

• Deep Learning AI supports intelligent surveillance and event analysis
• ColorGuard supports color-focused monitoring in low-light scenes
• Smart Dual Light combines IR and white LED illumination for flexible nighttime visibility
• Smart Motion Detection helps identify relevant movement events
• IP68, IK10, and UL Listed ratings support rugged outdoor security deployment

Technical Context

The camera combines 5MP resolution with Deep Learning AI, ColorGuard, and Smart Motion Detection for detailed and intelligent scene monitoring. Dual IR and white LED lighting supports both infrared surveillance and visible white-light color monitoring, while 130 dB Extreme WDR helps preserve detail in high-contrast scenes.

Installation Notes

The camera is designed for outdoor use with IP68 weatherproof and IK10 vandal-proof protection. Use the DORI values of 56 / 22.6 / 11.2 / 5.6m when planning detection, observation, recognition, and identification coverage.
