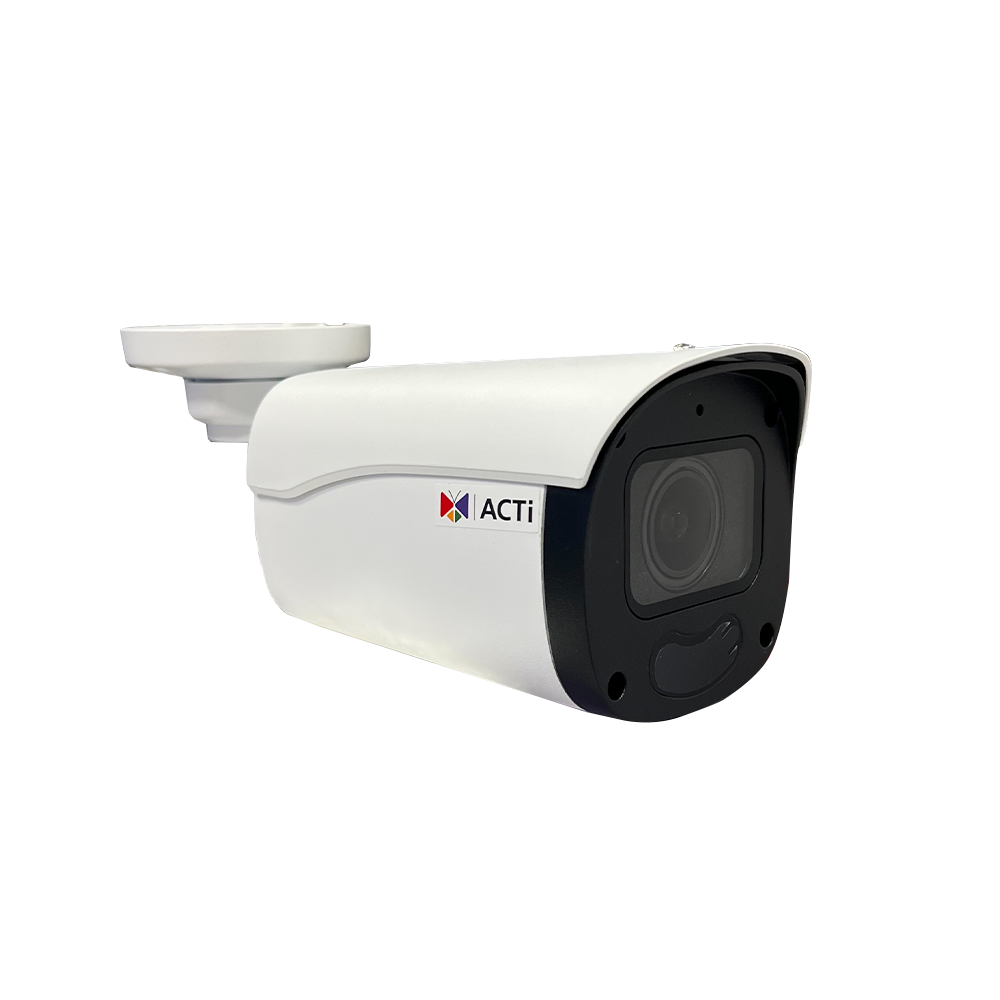

ACTi - Z413-P1 - 4MP 4.3x Zoom Bullet with IR LED 60m, WDR 130dB

Product Overview

This 4MP zoom bullet camera is designed for outdoor surveillance where adjustable field of view, detailed imaging, and reliable low-light performance are required. It features 4.3x zoom, 60m IR illumination, 130 dB Extreme WDR, and rugged IP68/IK10-rated protection for demanding security installations.

Key Configuration

4 Megapixel zoom bullet camera; 4.3x optical zoom; IR LED range up to 60m; Extreme WDR rated at 130 dB; color minimum illumination of 0.003 lux; DORI range of 63-270.0 / 25.2-108.0 / 12.6-54.0 / 6.3-27.0m.

Key Features

• 4MP resolution supports detailed surveillance imaging
• 4.3x zoom allows the field of view to be adjusted for the target scene
• 60m IR illumination supports nighttime monitoring
• 130 dB Extreme WDR helps preserve detail in high-contrast lighting
• IP68, IK10, and UL Listed ratings support rugged outdoor security deployment

Technical Context

The camera combines 4MP imaging with a 4.3x zoom lens to support flexible scene coverage across different surveillance distances. Its 130 dB Extreme WDR helps improve visibility in scenes with strong backlighting or high contrast, while 0.003 lux color minimum illumination supports low-light image performance.

Installation Notes

The camera is designed for outdoor use with IP68 weatherproof and IK10 vandal-proof protection. Use the DORI range of 63-270.0 / 25.2-108.0 / 12.6-54.0 / 6.3-27.0m when planning detection, observation, recognition, and identification coverage across the zoom range.
