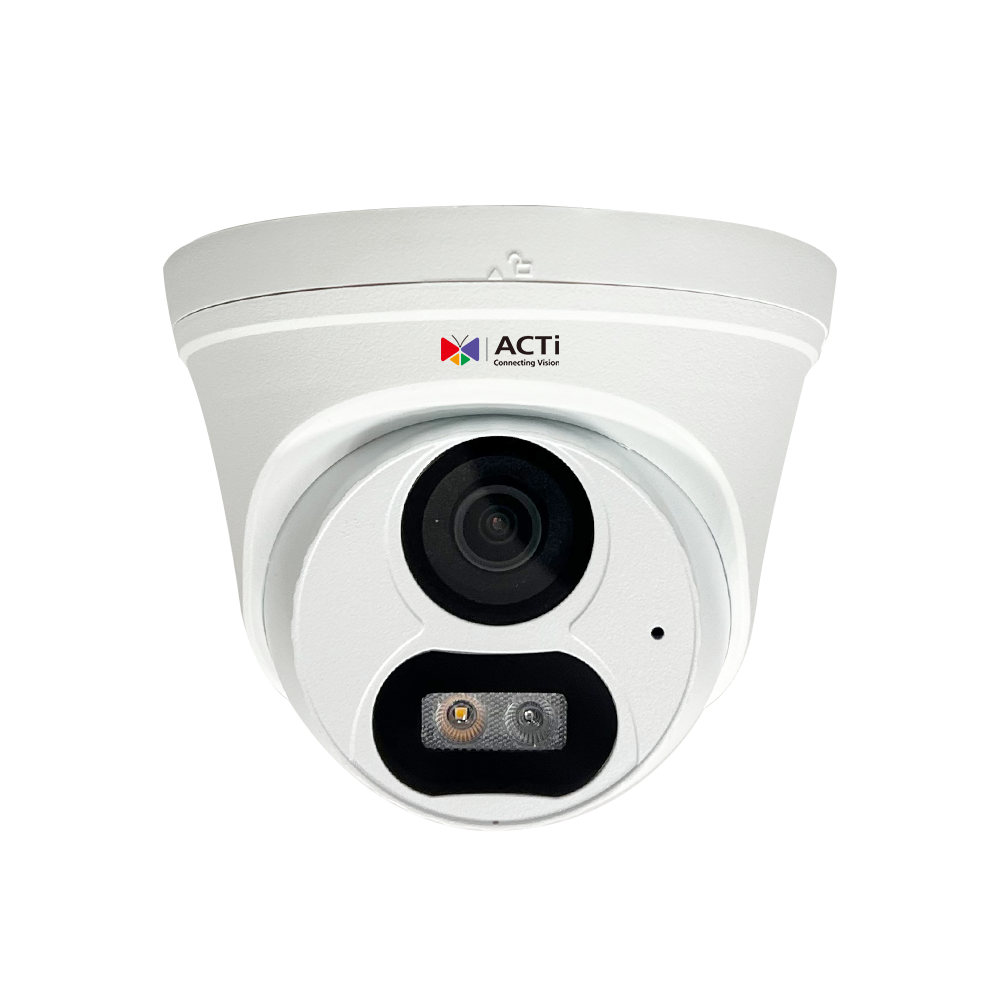

ACTi - Z512 - 5MP Deep Learning AI ColorGuard f2.8mm Outdoor Fixed Turret with IR LED 50m, White LED 50m, Smart Dual Light, WDR 130dB
Product Overview
This 5MP deep learning AI ColorGuard outdoor fixed turret camera is designed for detailed surveillance with flexible day and night visibility. It combines a 2.8mm fixed lens, 50m IR and white LED illumination, Smart Dual Light, Smart Motion Detection, and 130 dB Extreme WDR for reliable monitoring in challenging lighting conditions.
Key Configuration
5 Megapixel fixed turret camera; f2.8mm fixed lens; Deep Learning AI with ColorGuard; IR LED range up to 50m and white LED range up to 50m; Extreme WDR rated at 130 dB; DORI range of 56 / 22.6 / 11.2 / 5.6m.
Key Features
• Deep Learning AI supports intelligent surveillance and event analysis
• ColorGuard supports color-focused monitoring in low-light scenes
• Smart Dual Light combines IR and white LED illumination for flexible nighttime visibility
• Smart Motion Detection helps identify relevant movement events
• IP68 weatherproof rating and UL Listing support outdoor security deployment
Technical Context
The camera combines 5MP resolution with Deep Learning AI, ColorGuard, and Smart Motion Detection for detailed and intelligent scene monitoring. Smart Dual Light provides both infrared surveillance and visible white-light illumination, while 130 dB Extreme WDR helps preserve image detail in high-contrast scenes.
Installation Notes
The camera is designed for outdoor installation with IP68 weatherproof protection. Use the DORI values of 56 / 22.6 / 11.2 / 5.6m when planning detection, observation, recognition, and identification coverage.
| Product Profile | |
| Product Type | Fixed Turret |
| Application Environment | Outdoor |
| Maximum Resolution | 5MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| ColorGuard | Yes |
| Minimum Illumination | Color: 0.003 lux at F1.6 (AGC on); B/W: 0 lux (Light on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED (850 nm) |
| IR Working Distance | 50m |
| White LED | Yes |
| White LED Working Distance | 50m |
| Smart Dual Light | Yes. Default IR; White Light can be enabled through configuration. |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F1.6 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Horizontal Viewing Angle | 100.7° |
| Vertical Viewing Angle | 51.5° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-80°, Rotation: 0°-360° |
| Video | |
| Compression | H.265 Adaptive Stream, H.264 Adaptive Stream, MJPEG |
| Maximum Frame Rate vs. Resolution | 20 fps at 2560 x 1920 25 fps at 2560 x 1440 30 fps at 2304 x 1296 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360 30 fps at 704 x 288 30 fps at 352 x 288 |
| Multi-Streaming | Simultaneous dual streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Orientation | Flip, Mirror |
| Image Enhancement | White Balance, Backlight compensation (BLC), Highlight compensation (HLC), Defogging |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), Tampering Detection |
| Analytics | |
| Deep Learning AI | 1.0 |
| Audio | |
| Audio Type | 1-way, Built-in Microphone |
| Audio Compression | G.711 |
| Network | |
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, IGMP, ICMP, ARP, UPnP, SNMP, SSL/TLS, TLS 1.2, QoS, NFS |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Maximum User Connections | 32 |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Detection Range | |
| Observation Range | Detection: 56m Observation: 22.6m Recognition: 11.2m Identification: 5.6m |
| Event | |
| Event Trigger | Video motion detection, Tampering detection, Sound detection |
| Event Response | Save video to storage, Save video to NAS storage via NFS |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| Interface | |
| Operating Button | No |
| General | |
| Power Source | DC 12V, PoE (IEEE802.3af) |
| Power Consumption | 3.9 W (PoE) |
| Dimensions | (Ø x H): 117.8mm x 100.3mm (4.6" x 3.9") |
| Environmental Casing | Weatherproof (IP68) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 3 years. |
| Starting Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 4KV |
| Approvals | CE Class A, FCC Class A, IP68, UL Listed, BSMI |
| Material | Graphene Plastic |
| Real-time Clock (RTC) | No |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
