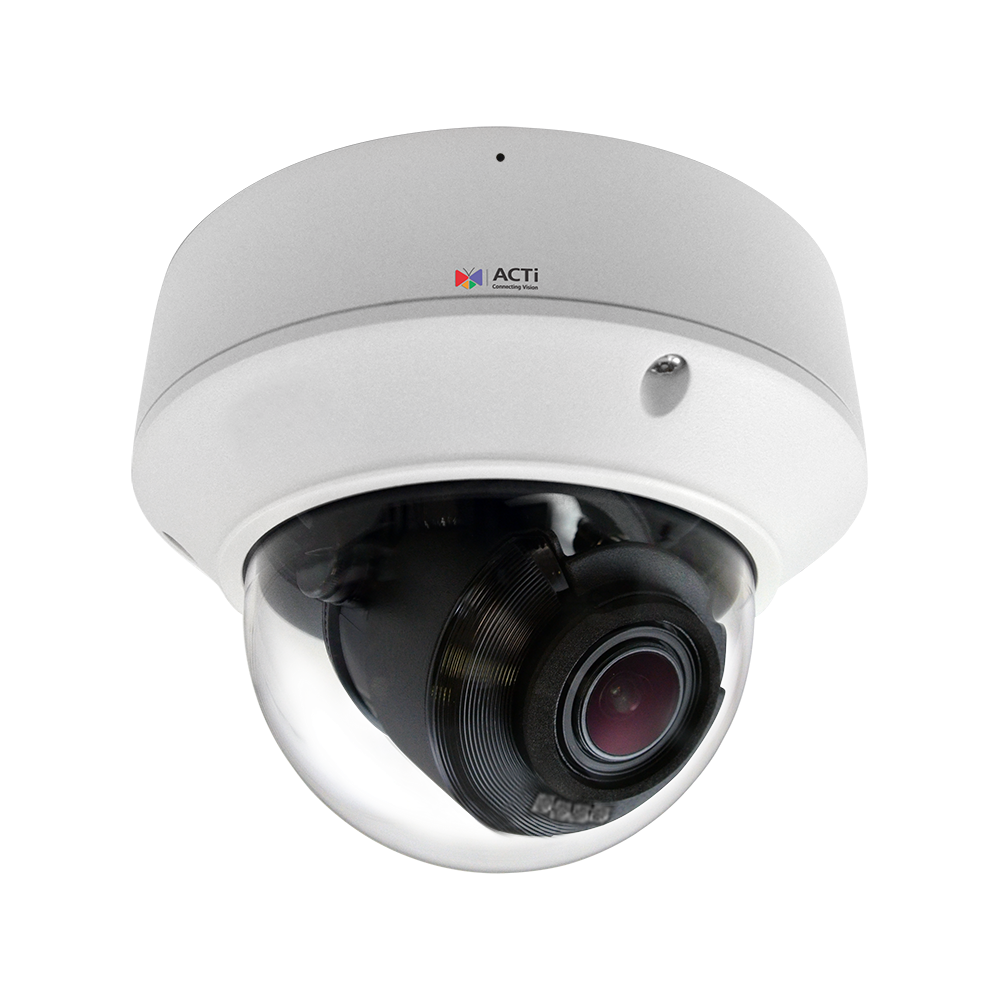

ACTi - Z818 - 8MP Deep Learning AI 5x Outdoor Zoom Dome with IR LED 60m, White LED 40m, Smart Dual Light, ColorVizion, WDR 130dB
Product Overview
This 8MP deep learning AI outdoor zoom dome camera is designed for high-resolution surveillance in demanding outdoor environments. It combines a 5x zoom lens, Smart Motion Detection, Smart Intrusion Protection, Counting, 60m IR illumination, 40m White LED lighting, Smart Dual Light, ColorVizion, and 130 dB Extreme WDR for detailed monitoring across varied lighting conditions.
Key Configuration
8 Megapixel outdoor zoom dome camera; 5x zoom lens with Deep Learning AI; IR LED range up to 60m and White LED range up to 40m with Smart Dual Light and ColorVizion; Extreme WDR rated at 130 dB; DORI range of 81-405 / 32.4-162 / 16.2-81 / 8.1-40.5m.
Key Features
• 8MP resolution supports detailed outdoor video surveillance
• Deep Learning AI supports Smart Motion Detection, Smart Intrusion Protection, and Counting
• Smart Dual Light combines IR and White LED illumination for flexible low-light operation
• ColorVizion and 0.001 lux minimum color illumination support improved color visibility in low-light scenes
• IP68 weatherproof, IK10 vandal-proof, and UL Listed construction supports outdoor deployment
Technical Context
The camera combines 8MP resolution with Deep Learning AI analytics to support motion detection, intrusion protection, and counting applications. Extreme WDR helps preserve detail in scenes with strong contrast, while Smart Dual Light and ColorVizion improve visibility in nighttime or low-light environments.
Installation Notes
The IP68 weatherproof and IK10 vandal-proof ratings support installation in exposed outdoor or public-facing locations. DORI planning values of 81-405 / 32.4-162 / 16.2-81 / 8.1-40.5m can be used to estimate detection, observation, recognition, and identification coverage during camera placement.
| Product Profile | |
| Product Type | Zoom Dome |
| Application Environment | Outdoor |
| Maximum Resolution | 8MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| ColorVizion | Yes |
| Minimum Illumination | Color: 0.001 lux at F1.4 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 60m |
| White LED | Yes |
| White LED Working Distance | 40m |
| Smart Dual Light | Yes. Default IR; White Light can be enabled through configuration. |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f2.7-13.5mm |
| Aperture | F1.4 |
| Zoom Ratio | 5x optical zoom |
| Zoom Application | Camera Installation |
| Iris | Fixed iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 111.5° - 34.4° |
| Vertical Viewing Angle | 58.7° - 19.2° |
| Viewing Angle Adjustment | Pan: 0°-355°, Tilt: 0°-76°, Rotation: 0°-355° |
| Video | |
| Compression | H.265 Adaptive Stream, H.264 (Baseline/ Main/ High profile), MJPEG |
| Smart ROI | Yes, supports up to 8 configurable regions per supported stream |
| Maximum Frame Rate vs. Resolution | 25 fps at 3840 x 2160 30 fps at 3072 x 1728 30 fps at 2560 x 1440 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360 30 fps at 704 x 288 30 fps at 352 x 288 |
| Bit Rate | 128Kbps - 16Mbps |
| Multi-Streaming | Simultaneous triple streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode)(±90⁰, 180⁰) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Highlight compensation (HLC), Brightness, Contrast, Sharpness, Automatic gain control (AGC), Defogging |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), Smart Intrusion Protection (, People Line Crossing Detection, People Intrusion Detection, People Enter Area Detection, People Exit Area Detection, Vehicle Line Crossing Detection, Vehicle Intrusion Detection, Vehicle Enter Area Detection, Vehicle Exit Area Detection), Tampering Detection, People Flow Counting, People Density Counting |
| Analytics | |
| Deep Learning AI | 2.0 |
| Audio | |
| Audio Type | 2-way, Built-in Microphone, Line-in, Line-out |
| Audio Compression | G.711, AAC |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SSL/TLS, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Detection Range | |
| Observation Range | Detection: 81m-405m Observation: 32.4m-162m Recognition: 16.2m-81m Identification: 8.1m-40.5m |
| Event | |
| Event Trigger | Video motion detection (4 regions), External device through digital input, Sound detection, Intelligent event detection |
| Event Response | E-mail notification with snapshots, Save video or snapshot to storage, Upload snapshot to FTP server, Activate external device through digital output |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T, Profile M |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| Interface | |
| Digital Input/Output | 1/1 |
| Operating Button | Reset Button |
| General | |
| Power Source | DC 12V, PoE (IEEE802.3af) |
| Power Consumption | 8.6 W (PoE) |
| Weight | 976.5g (2.15lb) |
| Dimensions | (Ø x H): 148mm x 111.4mm (5.8" x 4.4") |
| Environmental Casing | Weatherproof (IP68), Vandal proof (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 3 years. |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 4KV |
| Approvals | CE Class B, FCC Class B, IP68, IK10, UL Listed |
| Color | White |
| Material | Metal |
| Real-time Clock (RTC) | Yes |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
