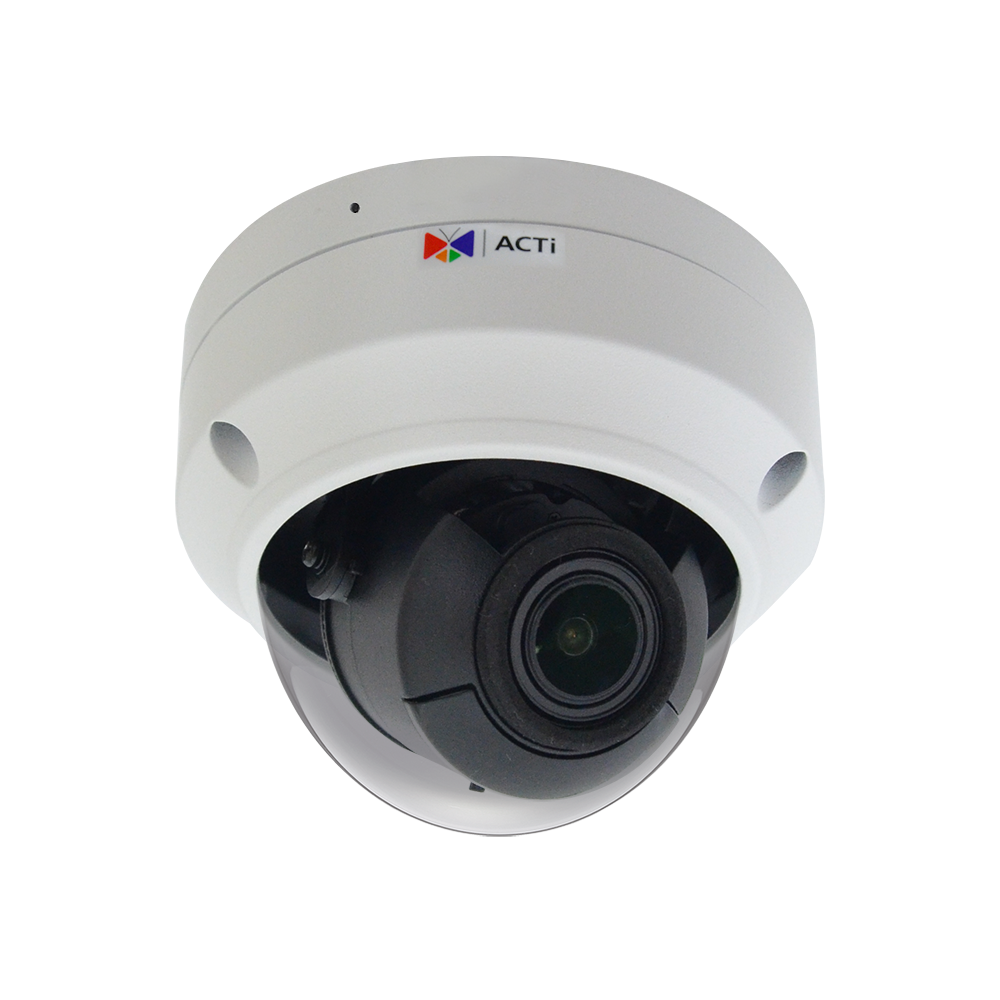

ACTi - Z819 - 5MP Deep Learning AI 4.3x Outdoor Zoom Dome with IR LED 60m, WDR 130dB
Product Overview
This 5MP deep learning AI outdoor zoom dome camera is designed for professional surveillance in demanding exterior environments. It combines a 4.3x zoom lens, Smart Motion Detection, 60m IR illumination, 0.001 lux minimum color illumination, and 130 dB Extreme WDR to support clear monitoring across low-light and high-contrast scenes.
Key Configuration
5 Megapixel outdoor zoom dome camera; 4.3x zoom lens with Deep Learning AI; IR LED range up to 60m; Extreme WDR rated at 130 dB; DORI range of 63-270 / 25.2-108 / 12.6-54 / 6.3-27m.
Key Features
• 5MP resolution supports detailed outdoor video surveillance
• Deep Learning AI supports intelligent video analysis
• 4.3x zoom lens provides flexible scene coverage
• IR LED illumination supports nighttime visibility up to 60m
• IP68 weatherproof and IK10 vandal-proof construction supports outdoor deployment
Technical Context
The camera combines 5MP imaging with Deep Learning AI and Smart Motion Detection to improve event relevance and scene detail. Extreme WDR helps preserve visibility across bright and shadowed areas, while 0.001 lux minimum color illumination and 60m IR support monitoring in low-light and nighttime conditions.
Installation Notes
The IP68 weatherproof and IK10 vandal-proof ratings support installation in exposed outdoor or public-facing locations. DORI planning values of 63-270 / 25.2-108 / 12.6-54 / 6.3-27m can be used to estimate detection, observation, recognition, and identification coverage during camera placement.
| Product Profile | |
| Product Type | Zoom Dome |
| Application Environment | Outdoor |
| Maximum Resolution | 5MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.001 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 60m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f2.8-12mm |
| Aperture | F1.6 |
| Zoom Ratio | 4.3x optical zoom |
| Iris | Fixed iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 96.4° - 32.7° |
| Vertical Viewing Angle | 51.3° - 18.6° |
| Viewing Angle Adjustment | Pan: 3°-360°, Tilt: 0°-70°, Rotation: 3°-360° |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 25 fps at 2880 x 1620 25 fps at 2560 x 1440 30 fps at 2304 x 1296 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360 |
| Multi-Streaming | Simultaneous dual streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Orientation | Mirror, Flip, Rotation (Corridor mode) |
| Image Enhancement | White Balance, Automatic gain control (AGC), Backlight compensation (BLC), Highlight compensation (HLC), Defogging |
| Privacy Mask | 4 configurable regions |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), Intrusion Detection (Forbidden Area Detection), People Detection, Vehicle Detection, Tampering Detection, People Line Crossing Detection |
| Analytics | |
| Deep Learning AI | 1.0 |
| Audio | |
| Audio Type | 1-way, Built-in Microphone |
| Audio Compression | G.711 |
| Network | |
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, RTMP, UPnP, QoS, SSL/TLS, SNMP, Digest Authentication |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Maximum User Connections | 32 |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Detection Range | |
| Observation Range | Detection: 63m-270m Observation: 25.2m-108m Recognition: 12.6m-54m Identification: 6.3m-27m |
| Event | |
| Event Trigger | Video motion detection, Sound detection, Intelligent event detection |
| Integration | |
| ONVIF Compliant | Profile S, Profile G, Profile T |
| Web Browser | IE 11 or newer, Microsoft Edge, Google Chrome, Firefox |
| Interface | |
| Operating Button | Reset Button |
| General | |
| Power Source | PoE Class 3 (IEEE802.3af), DC 12V |
| Power Consumption | 8.0 W (PoE) |
| Weight | 660g (1.46lb) |
| Dimensions | (Ø x H): 128mm x 100mm (5.0" x 3.9") |
| Environmental Casing | Weatherproof (IP68), Vandal proof (IK10) |
| Starting Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Storage Temperature | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 6KV |
| Approvals | CE Class B, FCC Class B, IP68, IK10, UL |
| Color | White |
| Real-time Clock (RTC) | No |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
