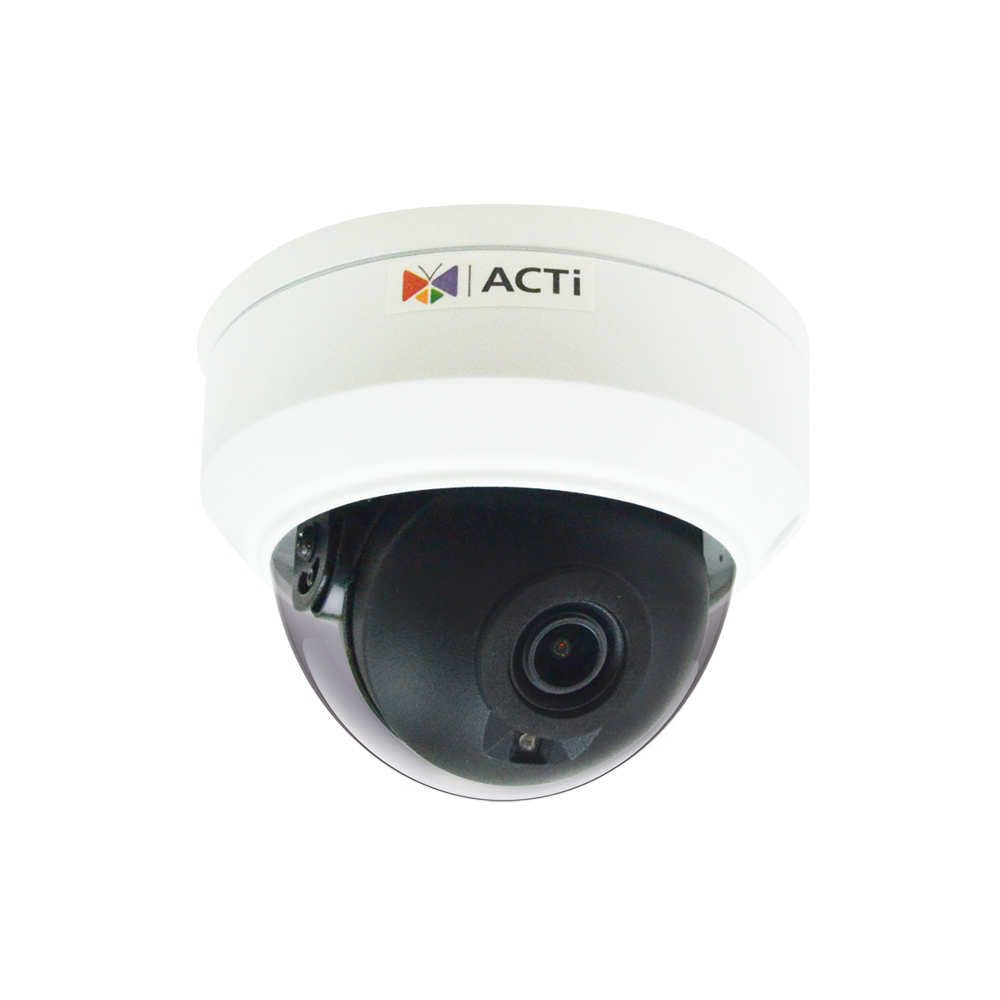

ACTi - Z913 - 8MP Deep Learning AI LightGuard f2.8mm Outdoor Fixed Dome with IR LED 50m, WDR 130dB
Product Overview
This 8MP deep learning AI LightGuard outdoor fixed dome camera is designed for high-resolution surveillance in exposed or vandal-prone environments. It combines a 2.8mm fixed lens, 50m IR illumination, Smart Motion Detection, 130 dB Extreme WDR, and rugged IP68/IK10-rated protection.
Key Configuration
8 Megapixel fixed dome camera; f2.8mm fixed lens; Deep Learning AI with LightGuard; IR LED range up to 50m; Extreme WDR rated at 130 dB; DORI range of 86.9 / 34.8 / 17.4 / 8.7m.
Key Features
• Deep Learning AI supports intelligent surveillance and event analysis
• LightGuard supports enhanced event response and visual deterrence capabilities
• 8MP resolution supports detailed security imaging
• Smart Motion Detection helps identify relevant movement events
• IP68, IK10, and UL Listed ratings support rugged outdoor security deployment
Technical Context
The camera combines 8MP imaging with Deep Learning AI and Smart Motion Detection to support detailed and intelligent event monitoring. Its 130 dB Extreme WDR helps improve visibility in high-contrast scenes, while 0.005 lux color minimum illumination and 50m IR illumination support low-light surveillance.
Installation Notes
The camera is designed for outdoor installation with IP68 weatherproof and IK10 vandal-proof protection. Use the DORI values of 86.9 / 34.8 / 17.4 / 8.7m when planning detection, observation, recognition, and identification coverage.
| Product Profile | |
| Product Type | Fixed Dome |
| Application Environment | Outdoor |
| Maximum Resolution | 8MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Effective Pixels | 3872(H) X 2192(V) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| LightGuard | Yes |
| Minimum Illumination | Color: 0.005 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 50m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F1.6 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 99° |
| Vertical Viewing Angle | 55.3° |
| Viewing Angle Adjustment | Pan: 8°-360°, Tilt: 0°-68°, Rotation: 10°-360° |
| Video | |
| Compression | H.265 Adaptive Stream, H.264 Adaptive Stream, MJPEG |
| Maximum Frame Rate vs. Resolution | 20 fps at 3840 x 2160 30 fps at 3072 x 1728 30 fps at 2560 x 1440 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360 30 fps at 704 x 288 30 fps at 352 x 288 |
| Bit Rate | 128Kbps - 16Mbps |
| Multi-Streaming | Simultaneous dual streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode)(±90⁰, 180⁰) |
| Image Enhancement | Backlight compensation (BLC), Defogging, Highlight compensation (HLC), Brightness, Contrast, Saturation, Digital Noise Reduction, White Balance |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), People Detection, Vehicle Detection, People Line Crossing Detection, People Intrusion Detection, Tampering Detection |
| Analytics | |
| Deep Learning AI | 1.0 |
| Audio | |
| Audio Type | 1-way, Built-in Microphone |
| Audio Compression | G.711 |
| Network | |
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DDNS, DNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, QoS, UPnP, SSL/TLS, SNMP, IEEE 802.1X, Digest Authentication |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Maximum User Connections | 32 |
| Security | HTTPS encryption, IP address filtering, Password protected user level |
| Detection Range | |
| Observation Range | Detection: 86.9m Observation: 34.8m Recognition: 17.4m Identification: 8.7m |
| Event | |
| Event Trigger | Video motion detection, Sound detection, Tampering detection, Intelligent event detection |
| Integration | |
| ONVIF Compliant | Profile S, Profile G, Profile T |
| Web Browser | IE 11 or newer, Google Chrome, Microsoft Edge, Firefox |
| Interface | |
| Operating Button | Reset Button |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 4.9 W (PoE) |
| Weight | 360g (0.79lb) |
| Dimensions | (Ø x H): 111mm x 83mm (4.4" x 3.3") |
| Environmental Casing | Weatherproof (IP68), Vandal proof (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 3 years. |
| Starting Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Storage Temperature | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 4KV |
| Approvals | CE Class A, FCC Class A, IP68, IK10, UL Listed, RoHS |
| Color | White |
| Real-time Clock (RTC) | No |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
