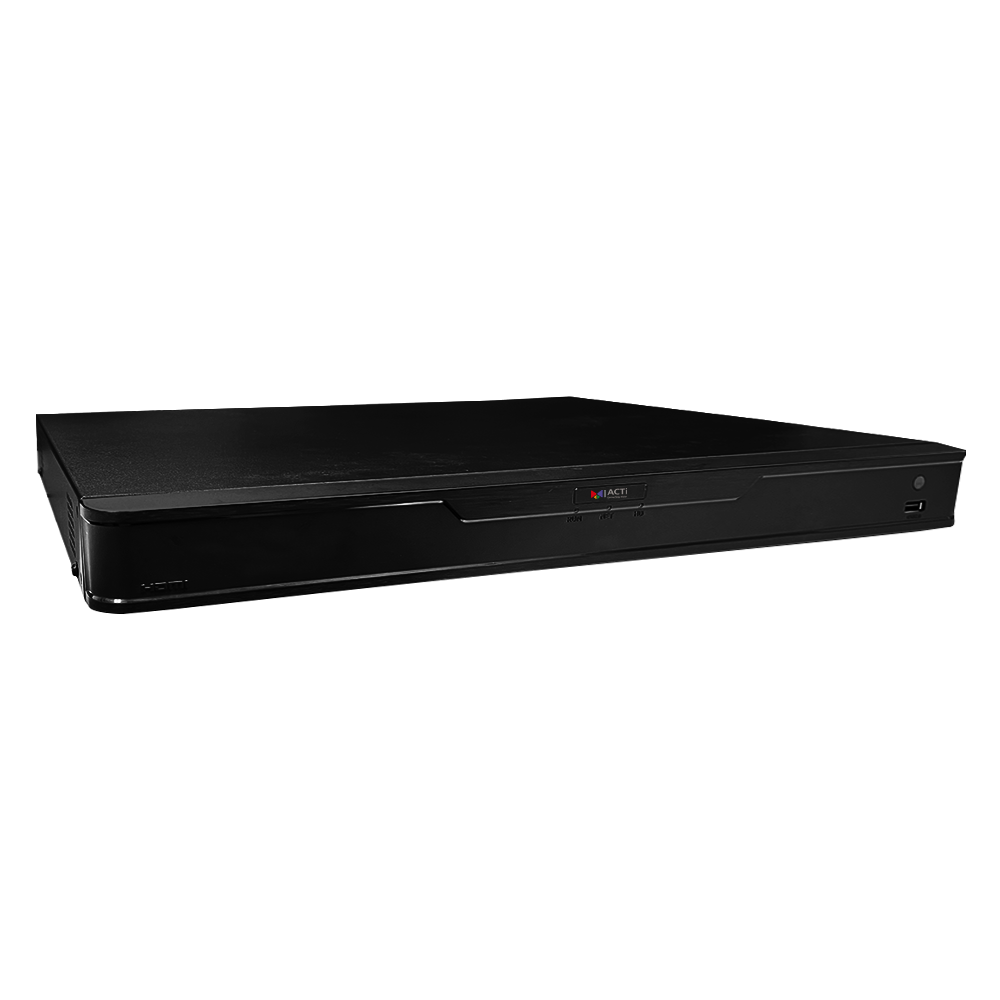

ACTi - ZNR-425 - 32-Channel 4-Bay 1U Rackmount Standalone NVR
Product Overview
This 32-channel 4-bay 1U rackmount standalone NVR is designed for centralized video surveillance recording and management. It runs on Embedded Linux with an ARM-based embedded SoC and includes built-in Core Analytics, forensic search, smart search, object visual tracking, and multi-browser access.
Key Configuration
32-channel rackmount standalone NVR with 32 free licenses; 4 storage bays for local video recording; 1U rackmount form factor; Embedded Linux with ARM-based embedded SoC; audio, HDMI x 1, and VGA x 1 interfaces.
Key Features
• Supports up to 32 video channels with 32 free licenses included
• Four storage bays provide local recording capacity for surveillance footage
• Built-in Core Analytics supports intelligent video analysis
• Forensic Search, Smart Search, and Object Visual Tracking support efficient investigation workflows
• Multi-browser support enables flexible browser-based system access
Technical Context
The NVR combines embedded standalone recording with analytics-assisted search functions for security monitoring and review. Forensic Search, Smart Search, and Object Visual Tracking help operators locate relevant events more efficiently across recorded video.
Installation Notes
The 1U rackmount design is intended for installation in standard equipment racks. HDMI and VGA outputs allow local monitor connection for setup, live viewing, or system operation.
| Product Profile | |
| Product Type | Standalone NVR |
| Maximum Number of Video Devices | 32 |
| Maximum Number of Clients | Local: 1, Remote: 128 |
| Supported Screen Resolution | HDMI: 3840x2160 (30Hz), 1920x1080 (60Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) VGA: 1920x1080 (60Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) |
| Hardware | |
| System Architecture | Embedded SoC-based (ARM platform) |
| CPU | ARM-based embedded SoC |
| License | |
| License Required | No |
| Free License | 32 |
| Live View | |
| Display Layout Mode | 1, 4, 6, 8, 9, 16, 25, 32 |
| Fisheye Dewarping | Yes (Live View, Playback) |
| Local Live View Performance | [Smart IVA On] 2ch (up to 30 fps at 4K 3840 x 2160) 4ch (up to 30 fps at 4MP) 8ch (up to 30 fps at 2MP 1920 x 1080) 16ch (up to 30 fps at 720p) 32ch (up to 30 fps at D1) [Smart IVA Off] 2ch (up to 30 fps at 12MP) 2ch (up to 30 fps at 4K 3840 x 2160) 4ch (up to 30 fps at 4MP) 10ch (up to 30 fps at 2MP 1920 x 1080) 20ch (up to 30 fps at 720p) 32ch (up to 30 fps at D1) |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client |
| Instant Playback | Instant Playback in live view window |
| Analytics | |
| NVR Built-in Analytics | Smart Intrusion Protection (detect people, vehicles entering/exiting area or crossing the line), Smart Motion Detection (detect when the people, vehicles or other objects move in the predefined area), Face Detection |
| NVR Analytics Maximum Channels | Smart Intrusion Protection: 2 channels Smart Motion Detection: 4 channels |
| Object Recognition Database | Face Picture Capacity: 50,000 Vehicle Picture Capacity: 25,000 |
| Maximum Snapshot Capacity | Captured Face Snapshots: 500 Captured Vehicle Snapshots: 500 Captured Object Snapshots via Smart Intrusion Protection: 500 |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711 A-law, G.711 u-law |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTSP, SMTP, TLS 1.2, TLS 1.3, SNMP, IEEE 802.1X |
| Ethernet Port | 2 x Ethernet (1000 Base-T), RJ-45 connector |
| Maximum Outgoing Throughput | 128 Mbps |
| Security | TLS v1.2, TLS v1.3 encrypted communication |
| Recording | |
| Maximum Recording Throughput | 160 Mbps |
| Search & Playback | |
| Playback Control | Continuous forward and backward playback with speeds 0.125x/0.25x/0.5x/1x/2x/4x/8x/16x, play, pause, stop |
| Synchronized Playback | 16 channels |
| Smart Search | Set ROI and look for the people and vehicles appearing in the ROI in the past recordings (requires cameras with Smart Motion Detection feature) |
| Forensic Search | Select target object (people, vehicle) and search for the similar object through all the channels |
| Object Visual Tracking | Support, View thumbnails generated by Forensic Search and playback by time sequence |
| System | |
| Server Operating System | Embedded Linux |
| USB | 2-Port USB 2.0, 1-Port USB 3.0 |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 10 or newer, Google Chrome, Firefox, Microsoft Edge |
| Storage | |
| Storage Bay | SATA, Max. 4 Disk(s) (without storage disks) |
| HDD Size | 3.5" |
| Maximum Recording Capacity | 24TB x4 |
| RAID Level | No |
| Interface | |
| Audio Interface | 1/1, RCA Jack |
| Local Access | USB Mouse |
| Local Display Interface | HDMI x 1, VGA x 1 |
| General | |
| Power Source | DC 12V |
| Dimensions | (W x H x D): 440mm x 48mm x 350mm (17.3" x 1.9" x 13.8") Rack Space: 1U |
| Bundled Accessories | USB Mouse, Power Adapter |
| Fan | Yes |
| Operating Temperature | -10°C ~ 60°C (14°F ~ 140°F) |
| Operating Humidity | 10% - 90% RH, non-condensing |
| Approvals | CE Class B, FCC Class B, UL Listed, BSMI |
| Color | Black |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
