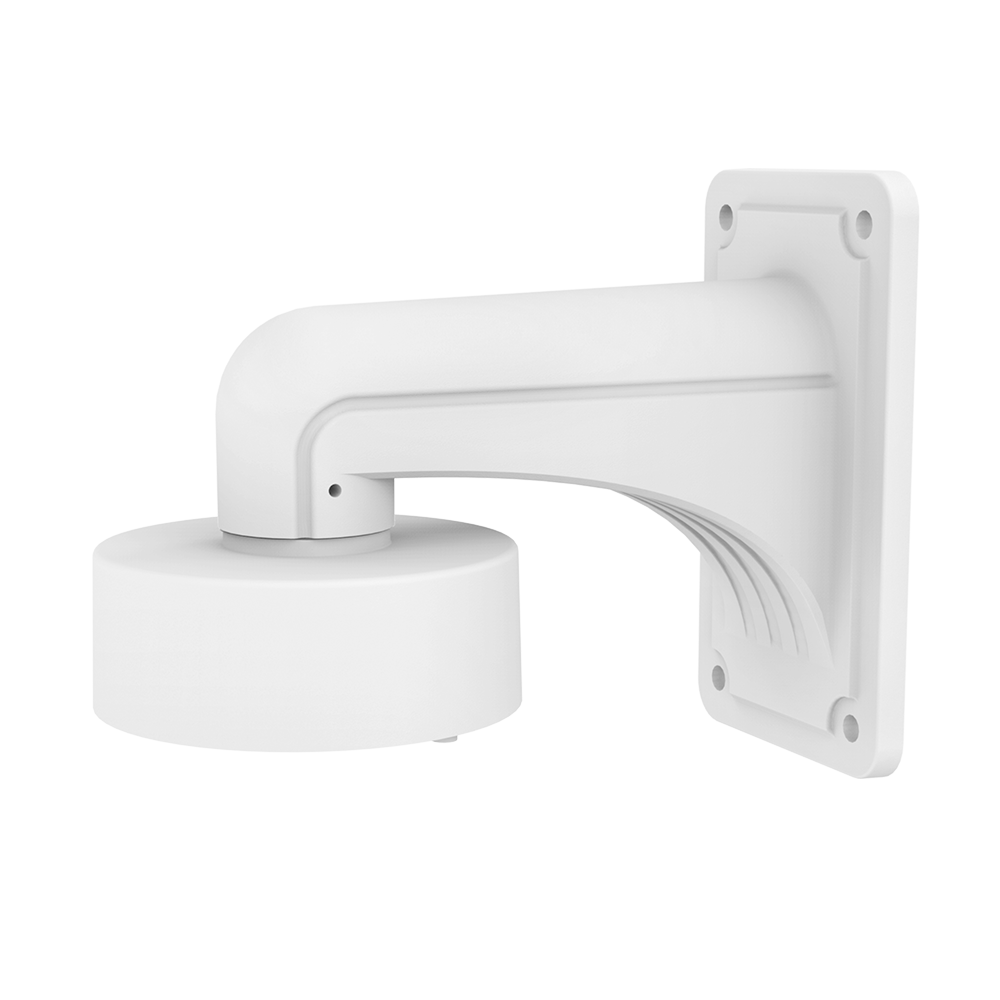

AVYCON - AVM-HWM-VG-S3 - WALL MOUNT WITH JUNCTION BOX
Product Overview
The AVYCON AVM-HWM-VG-S3 is a wall mount with an integrated junction box designed for clean and secure camera installation. It uses aluminum alloy construction with surface spray treatment, supports hidden cable management, and is suitable for indoor or outdoor wall-mounted surveillance applications.
Key Configuration
Model: AVM-HWM-VG-S3 | Product Type: Wall Mount with Junction Box | Material: Aluminum Alloy | Color: White | Mounting Option: Indoor, Outdoor, Wall | Ingress Protection: IP65 | Load Bearing: 13.2 lb (6 kg) | Compliance: NDAA
Key Features
· Aluminum alloy material with surface spray treatment
· Integrated junction box for organized camera installation
· Camera cables can be managed and hidden
· Designed for wall mounting applications
· IP65 ingress protection for outdoor use
· Supports up to 13.2 lb (6 kg) load bearing
Technical Context
The AVM-HWM-VG-S3 combines a structural wall bracket with a junction box to simplify camera mounting and cable routing. Its IP65-rated aluminum alloy housing helps protect the installation from dust and water exposure while maintaining a clean exterior appearance.
Installation Notes
This mount is intended for indoor or outdoor wall installation. The junction box measures Ø4.5 x 2.4 in (Ø113.5 x 62 mm), while the bracket measures Ø7.09 x 6.65 x 3.86 in (Ø180 x 169 x 98 mm), with a G1 NPT size for conduit connection.
