Product Overview

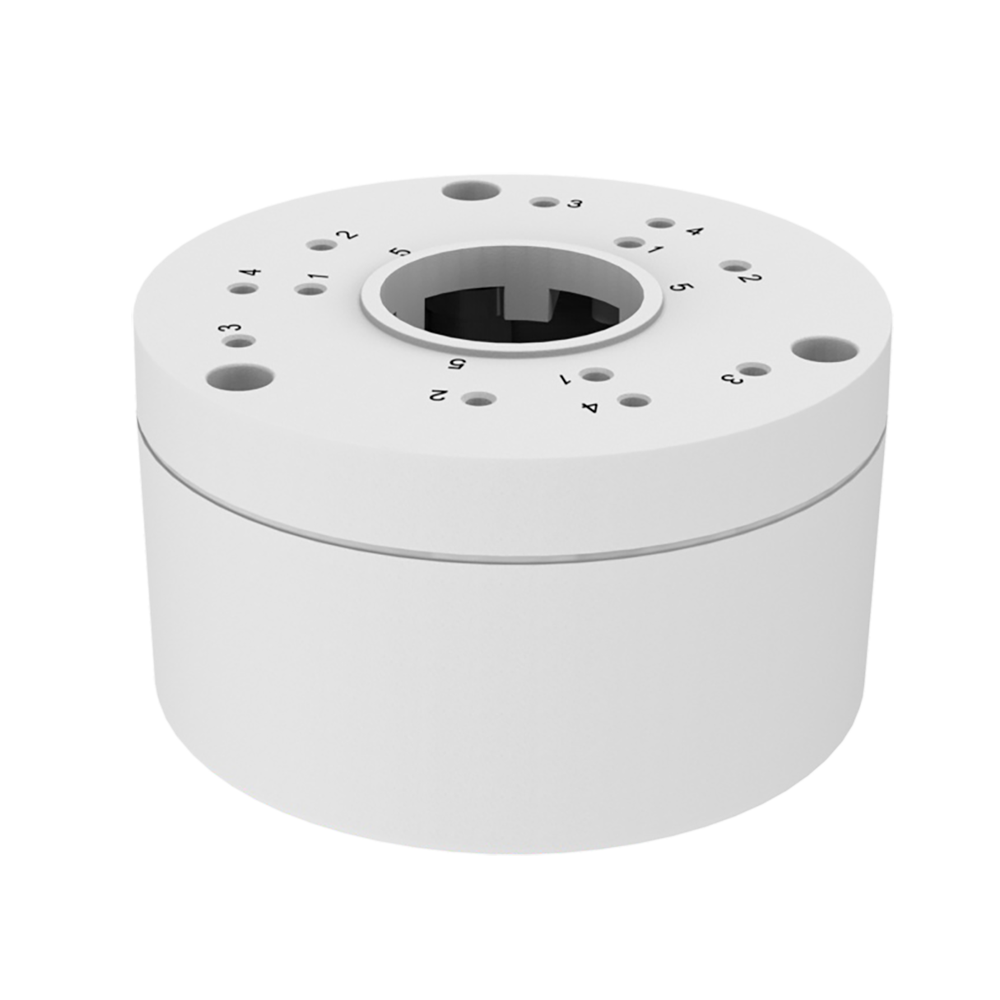

The AVYCON AVM-JB-BE-AD2 is a compact junction box designed for clean wall or ceiling camera installations. It uses an aluminum alloy body with surface spray treatment and allows camera cables to be managed, routed, and hidden for a neat indoor or outdoor mounting setup.
Key Configuration
Model: AVM-JB-BE-AD2 | Product Type: Junction Box | Mounting Options: Indoor, Outdoor, Wall, Ceiling | Material: Aluminum Alloy | Protection: IP65 | Load Bearing: 13.2lb / 6kg
Key Features
· Aluminum alloy material with surface spray treatment
· Camera cables can be managed and hidden inside the junction box
· Supports bottom inlet and side inlet cable routing
· Suitable for wall or ceiling mounting applications
· IP65 ingress protection for indoor and outdoor use
· NDAA compliant design
Technical Context
The AVM-JB-BE-AD2 provides a protected mounting base for compatible surveillance camera installations while keeping exposed cabling to a minimum. Its IP65-rated enclosure helps protect cable entry points from dust and water exposure in standard indoor or outdoor environments.
The junction box supports 3/4" NPT side and front entries, giving installers flexible routing options depending on the camera position, conduit path, and mounting surface.
Installation Notes
The AVM-JB-BE-AD2 measures Ø3.96" x 2.2" (Ø100.05mm x 56mm) and weighs 0.661lb (300g). It supports a load bearing capacity of 13.2lb (6kg) and is rated for operating temperatures from -40°F to 140°F (-40°C to 60°C) with 10% to 90% non-condensing humidity.
