AVYCON - AVM-JB-VG-L3 - Junction Box for VF/Motorized Lens Large Active Deterrence and InfiniteColor Motorized Lens Vandal Domes
Product Overview

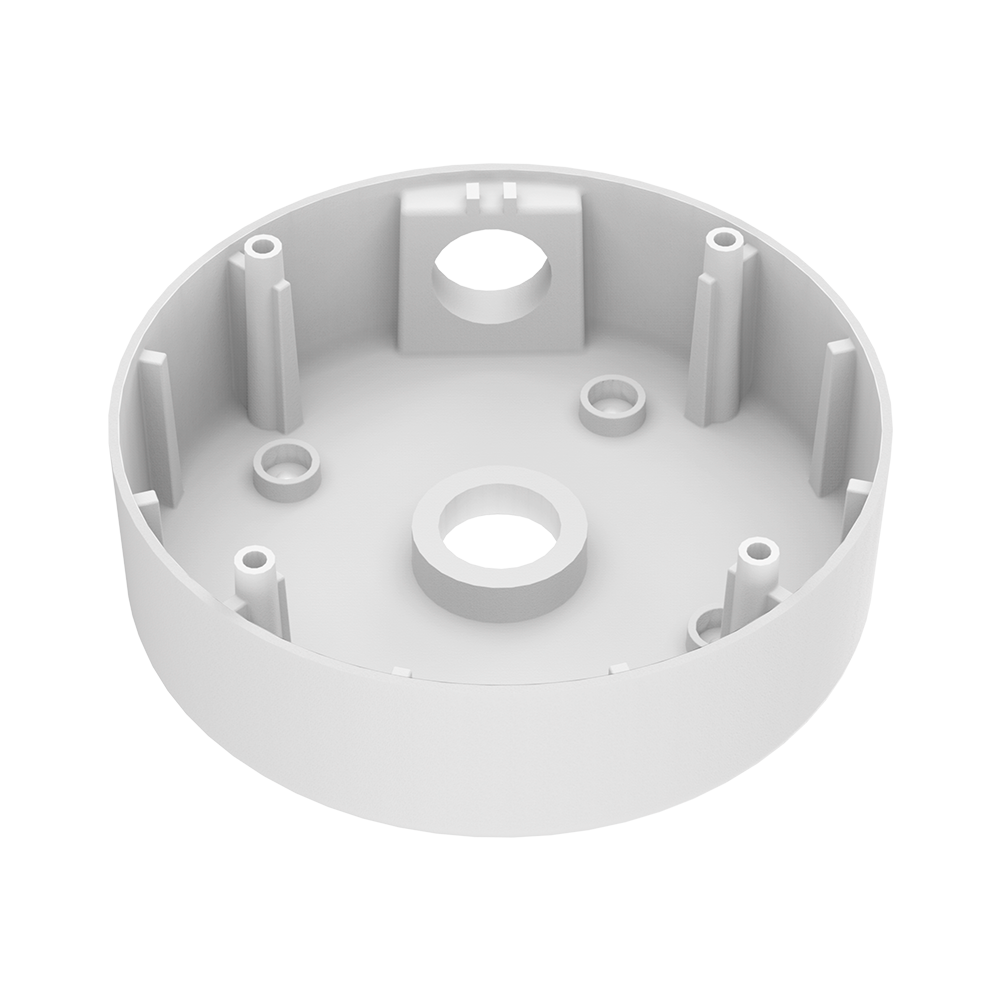

The AVYCON AVM-JB-VG-L3 is a junction box designed for clean and secure surveillance camera mounting in indoor or outdoor installations. It provides an aluminum alloy enclosure that helps collect and hide camera cables while supporting wall or ceiling mounting.
Key Configuration
Model: AVM-JB-VG-L3 | Product Type: Junction Box | Material: Aluminum Alloy | Color: White | Mounting: Indoor / Outdoor / Wall / Ceiling | Ingress Protection: IP65 | Load Bearing: 13.2 lb (6 kg) | Dimensions: Ø5.8 x 1.8 in (Ø146.7 x 46.2 mm)
Key Features
· Aluminum alloy construction with surface spray treatment
· Helps collect and hide camera cables for a cleaner installation
· Supports bottom inlet and side inlet cable routing
· Available for wall or ceiling mounting applications
· IP65-rated housing for indoor and outdoor use
· Side and front 3/4 inch NPT openings for flexible conduit connection
Technical Context
The AVM-JB-VG-L3 provides a dedicated junction point for surveillance camera wiring, helping installers organize cable runs and protect connections. Its aluminum alloy housing, IP65 ingress protection, and 13.2 lb load rating make it suitable for supported camera mounting applications.
Installation Notes
This junction box supports indoor and outdoor wall or ceiling mounting. Installation environments should match the listed operating temperature range of -40°F to 140°F (-40°C to 60°C), 10% to 90% non-condensing humidity, and IP65 protection rating.
