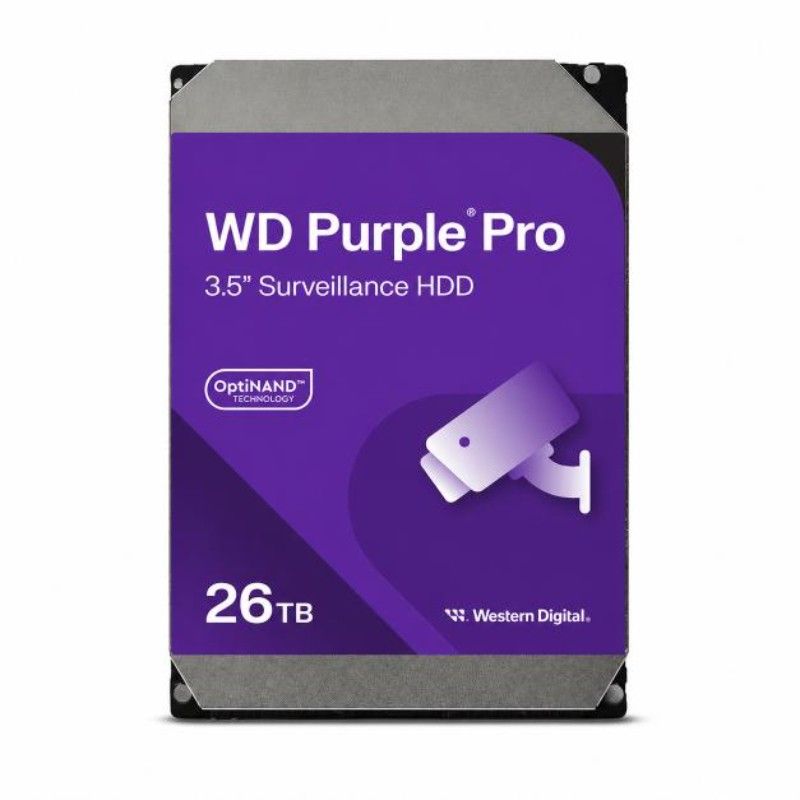

The Avycon AVY-HDD-26TB features a 26TB WD Purple Surveillance Hard Drive engineered specifically for 24/7 video surveillance environments. Designed for use with compatible DVRs, NVRs, and video management systems, this 3.5-inch SATA drive delivers high-capacity, reliable storage for continuous video recording. Optimized for surveillance workloads, it supports multiple high-definition camera streams while providing dependable performance, enhanced durability, and long-term data storage for professional security installations.
Features
- 26TB WD Purple surveillance hard drive
- Designed for continuous 24/7 video recording
- 3.5-inch SATA interface for DVR and NVR compatibility
- Optimized for surveillance workloads and multiple HD video streams
- High-capacity storage for extended video retention
- Engineered for reliable, long-term operation in security systems
- Supports demanding professional surveillance applications
- Ideal for commercial and enterprise video surveillance deployments
| General | |
| Formatted capacity | 26TB |
| Form factor | 3.5-inch |
| Advanced Format (AF) | Yes |
| Recording Technology | CMR |
| RoHS compliant | Yes |
| Product Features | |
| Cameras supported | Up to 64 HD |
| Al streams | 32 |
| Firmware feature name | AllFrame AI |
| Tarnish resistant components | Yes |
| Performance | |
| Interface transfer rate (max) | |
| Buffer to host | 6 Gb/s |
| Host to/from drive (sustained) | 287 MB/s |
| Cache (MB) | 512 |
| RPM | 7200 |
| Reliability / Data Integrity | |
| Load/unload cycles | 600,000 |
| Annualized workload rating | Up to 550 TB/yr |
| Non-recoverable read errors per bits read | <1 in 10^15 |
| MTBF | 2,500,000 |
| Limited warranty (years) | 5 |
| Power Management | |
| Average power requirements (W) | |
| Read/Write | 6.5 |
| Idle | 5.9 |
| Standby and Sleep | 1.2 |
| Environmental Specifications | |
| Temperature (°C, on the base casting) | |
| Operating | 0 to 65 |
| Non-operating | -40 to 70 |
| Shock (Gs) | |
| Operating (2 ms, read/write) | 40 |
| Operating (2 ms, read) | 40 |
| Non-operating (2 ms) | 200 |
| Acoustics (dBA) | |
| Idle | 20 |
| Average Seek | 32 |
| Physical Dimensions | |
| Height (in./mm, max) | 1.028/26.1 |
| Length (in./mm, max) | 5.787/147 |
| Width (in./mm, ± .01 in.) | 4/101.6 |
| Weight (lb/kg, ± 10%) | 1.48/0.67 |
