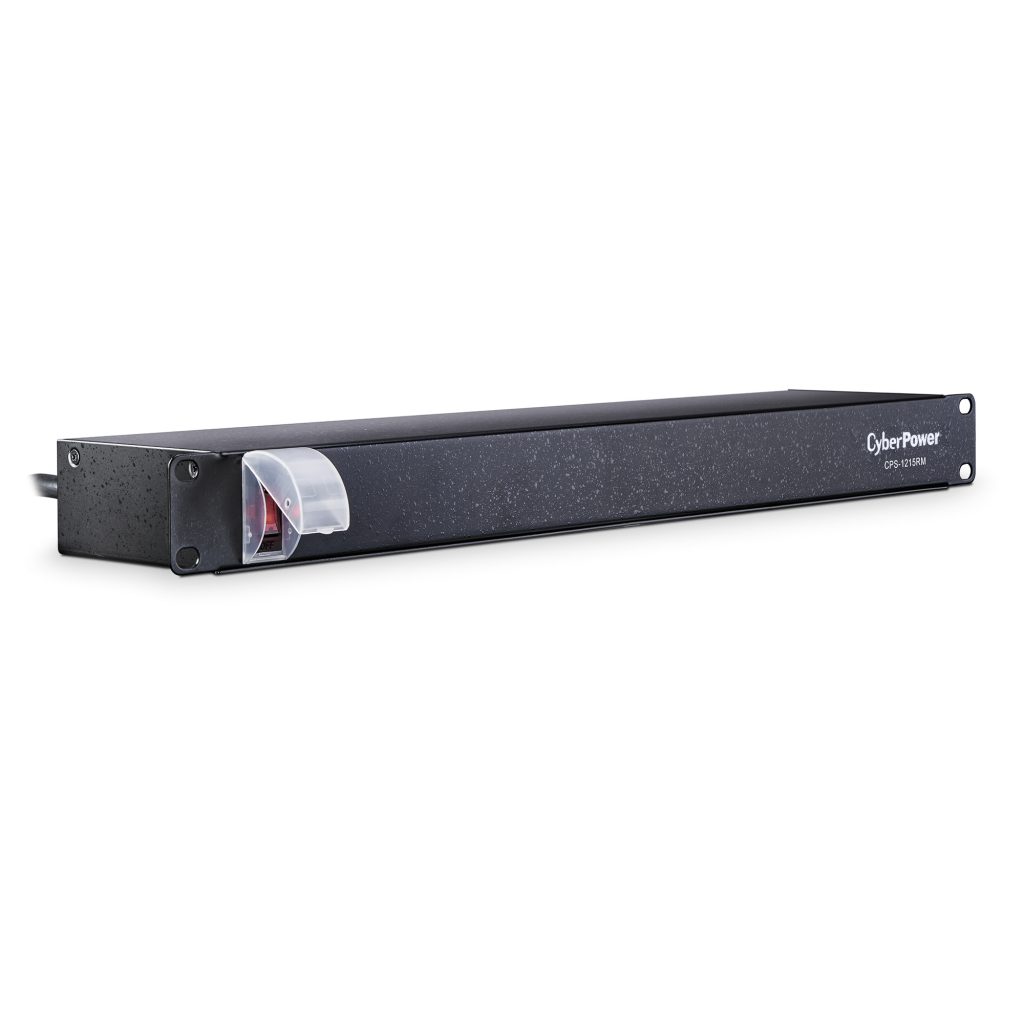

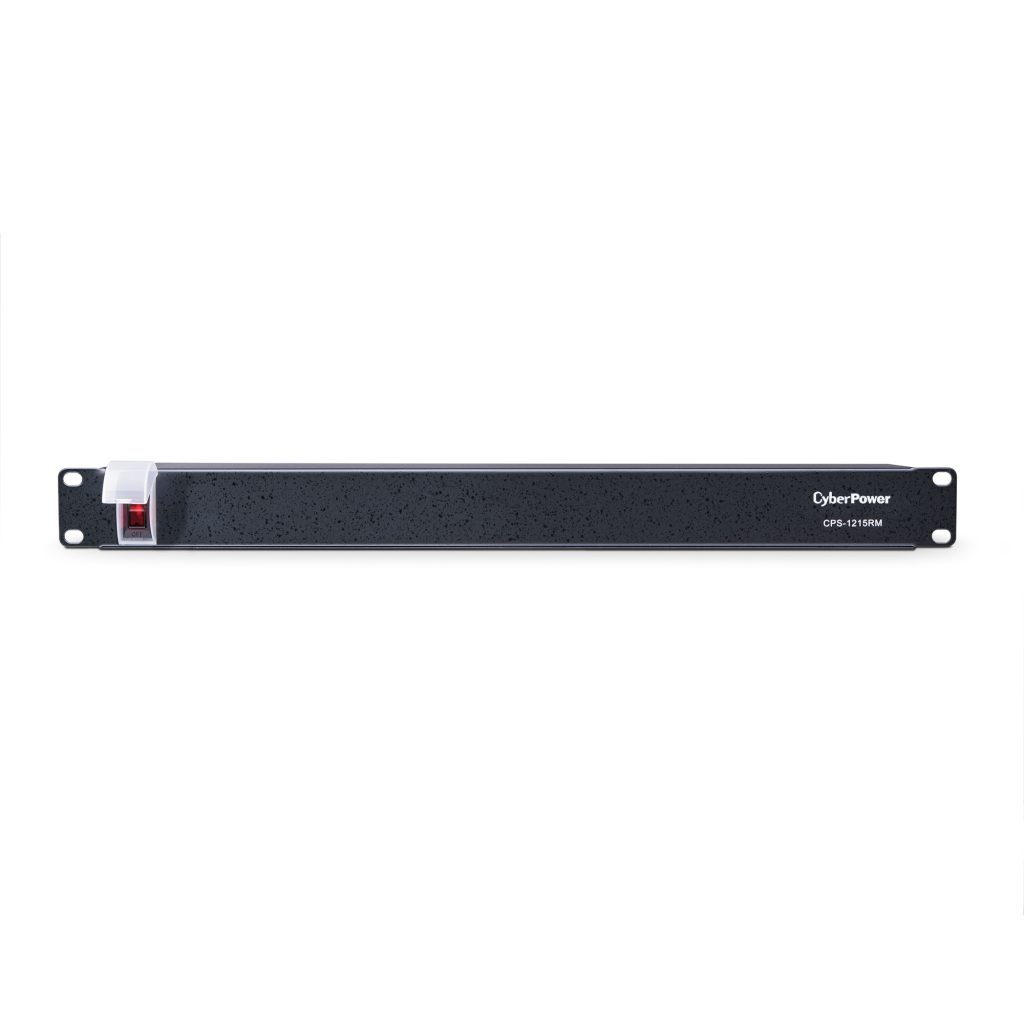

CyberPower - CPS1215RM - 15A 1U Rackmount Power Distribution Unit
Product Overview
The CyberPower CPS1215RM is a rackmount power distribution unit designed to deliver AC power to servers, networking equipment, and connected devices. It distributes 100-125V 15A power from a single NEMA 5-15P input to 10 rear NEMA 5-15R outlets with unfiltered electrical pass-through.
Key Configuration
Model: CPS1215RM | Product Type: Rackmount power distribution unit | Output Voltage: 100-125V | Output Current: 15A | Input Plug: NEMA 5-15P | Outlets: 10 rear NEMA 5-15R receptacles | Power Cord: 15 ft AC input cord | Mounting: Horizontal rackmount | Housing: Durable metal | Certification: UL Recognized | Warranty: 3-year limited warranty
Key Features
· Distributes AC power to servers, IT equipment, and connected devices

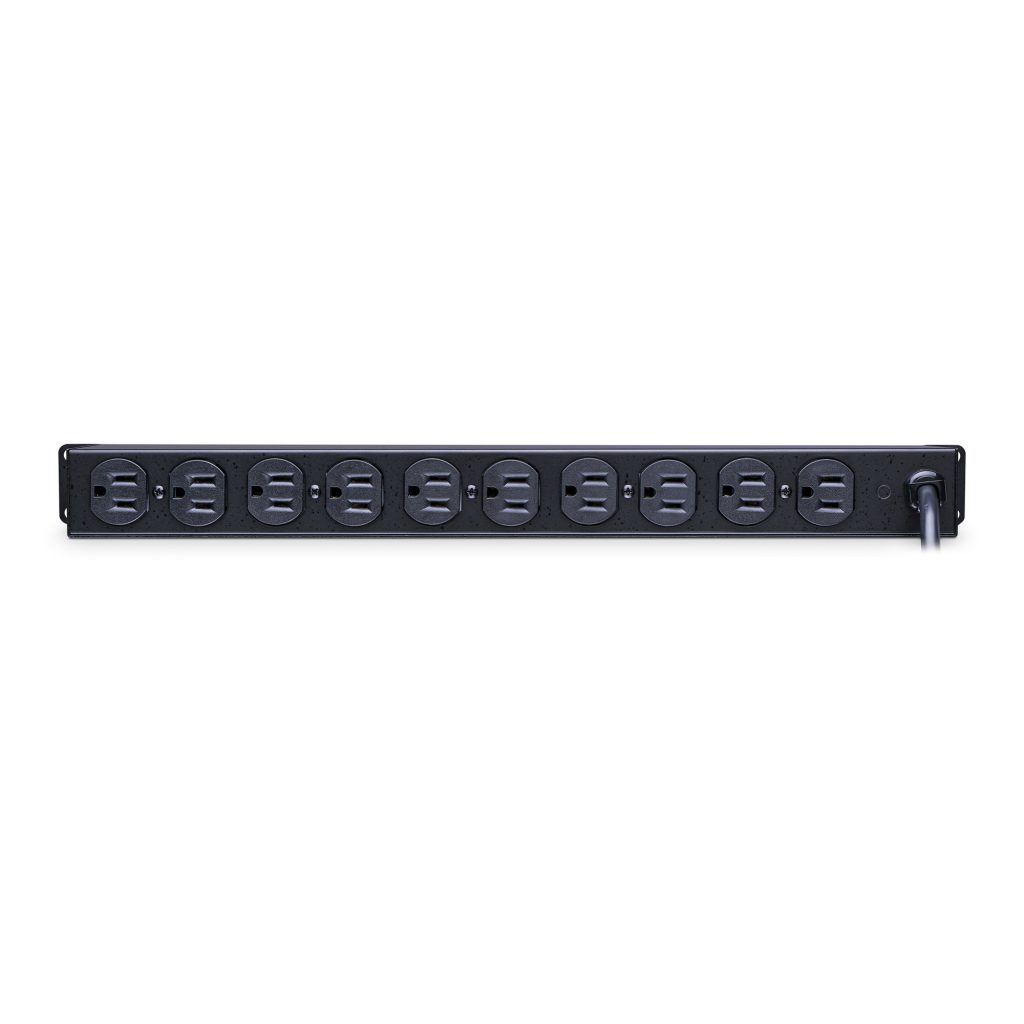

· Provides 10 rear NEMA 5-15R receptacles from one NEMA 5-15P input
· Supports 100-125V 15A output for rack equipment power distribution
· Unfiltered electrical pass-through design supports straightforward power delivery
· 15-foot input power cord helps reach distant power sources
· Cord retention tray helps keep power cords organized and securely connected
· Durable metal housing protects internal components in demanding environments
· Horizontal rackmount design supports datacenter and equipment rack installations
· UL Recognized construction supports professional deployment requirements
· Three-year limited warranty covers defects in materials and workmanship
Technical Context

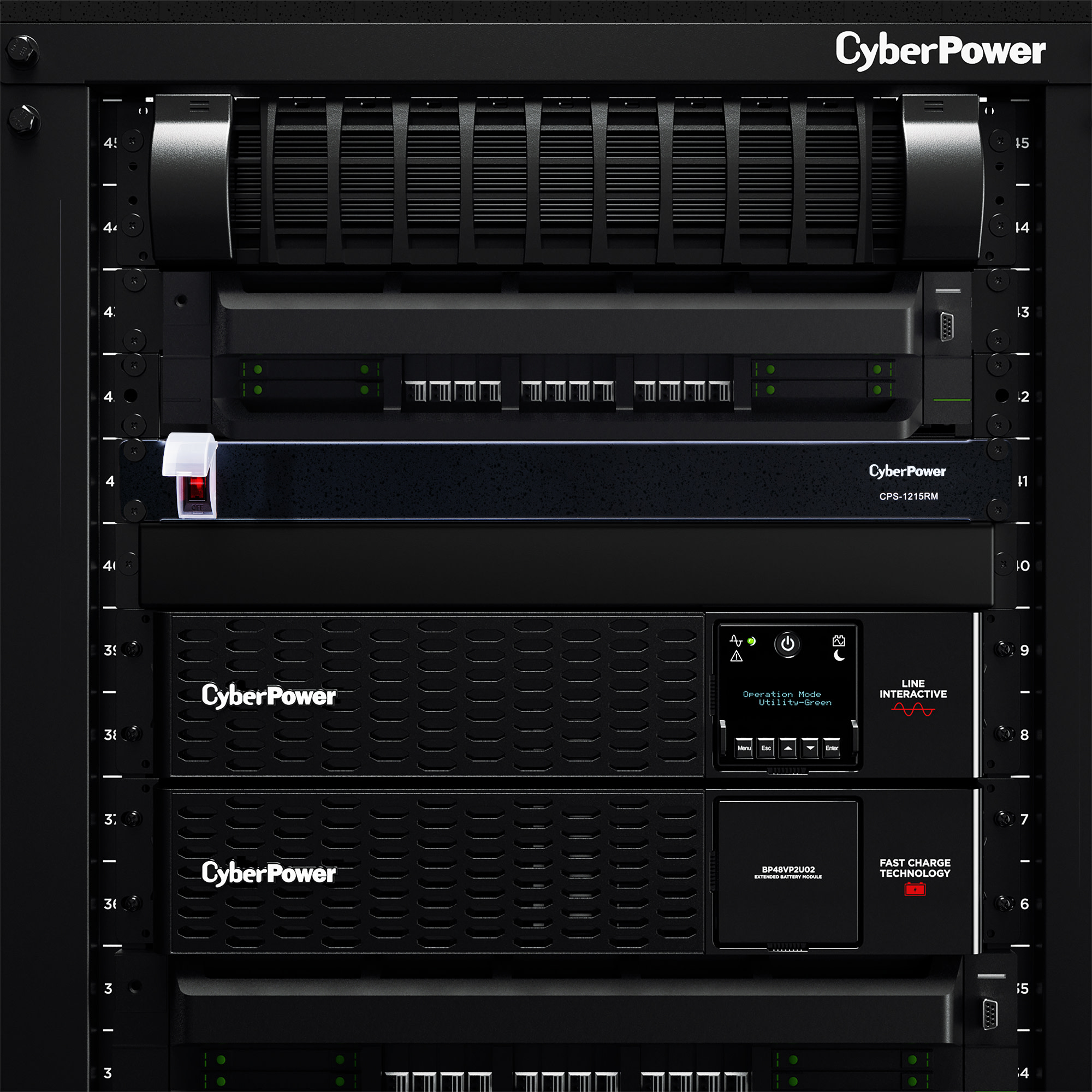

The CPS1215RM is built for applications where multiple rack devices need power from a single input source. Its unfiltered pass-through configuration provides direct power distribution without surge filtering, making it suitable for controlled datacenter, IT, and industrial rack environments where upstream power conditioning may already be present.
Installation Notes
This PDU is intended for horizontal rackmount installation and includes a cord retention tray to help prevent accidental disconnection. The 15-foot AC power cord provides placement flexibility when connecting to power sources located farther from the rack.
| Input | |
| Circuit Breaker | 15 A |
| Cord Length | 15 ft (4.6 m) |
| Input Plug Type | NEMA 5-15P |
| Maximum Input Current | 15A |
| Nominal Input Voltage | 100 – 125 VAC |
| Phase | Single Phase |
| Plug Style | Straight |
| Switch | Lighted On/Off |
| Output | |
| Nominal Output Voltage | 100 – 120 VAC |
| Outlet Type | 10 – NEMA 5-15R |
| Outlets – # of Banks | 1 |
| Outlets – Front | 0 |
| Outlets – Rear | 10 |
| Outlets – Total | 10 |
| Overload Protection | 15A |
| USB Charge Port | No |
| Surge Protection & Filtering | |
| Clamping Voltage | 800V (H-N) |
| Physical | |
| Color | Black |
| Cord Retention Tray/Cord Organizers | Yes |
| Form Factors Supported | 1U Rackmount |
| Material of Construction | Metal |
| Rack Height | 1U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.82 x 4.45 x 12.07 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.25 x 1.75 x 4.75 (in) |
| Physical Dimensions – (WxHxD) (mm) | 438 x 44 x 121 (mm) |
| Physical Weight (kg) | 2.27 |
| Physical Weight (lb) | 5 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 2.64 |
| Shipping – Weight (lb) | 5.83 |
| Shipping Dimensions – (WxHxD) (cm) | 5.84 x 25.15 x 51.74 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 2.3 x 9.9 x 20.37 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 58.42 x 251.46 x 517.4 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Safety | UL Recognized |
| Warranty | |
| Product Warranty | 3 Year Limited Warranty |
