CyberPower - CSB6WS - Surge Protector

Part number:
Price:

Product Overview

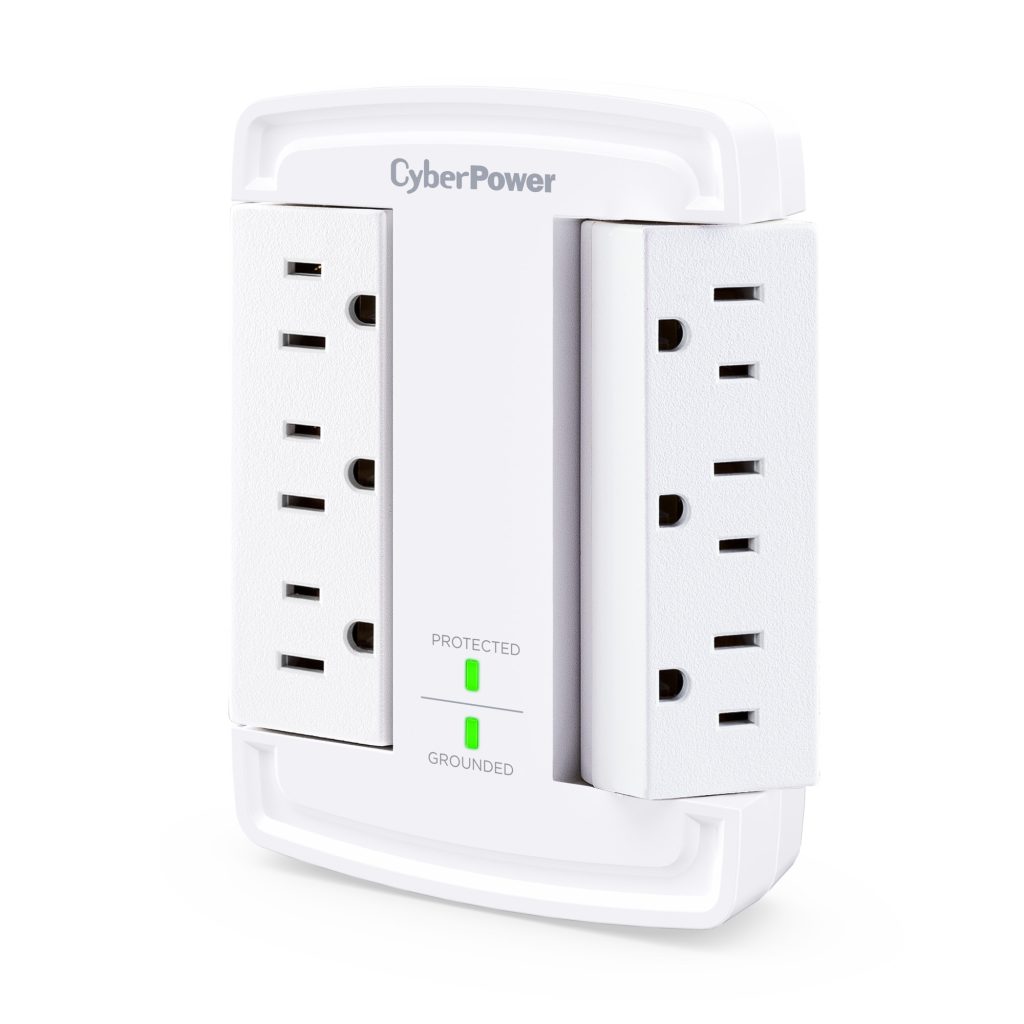

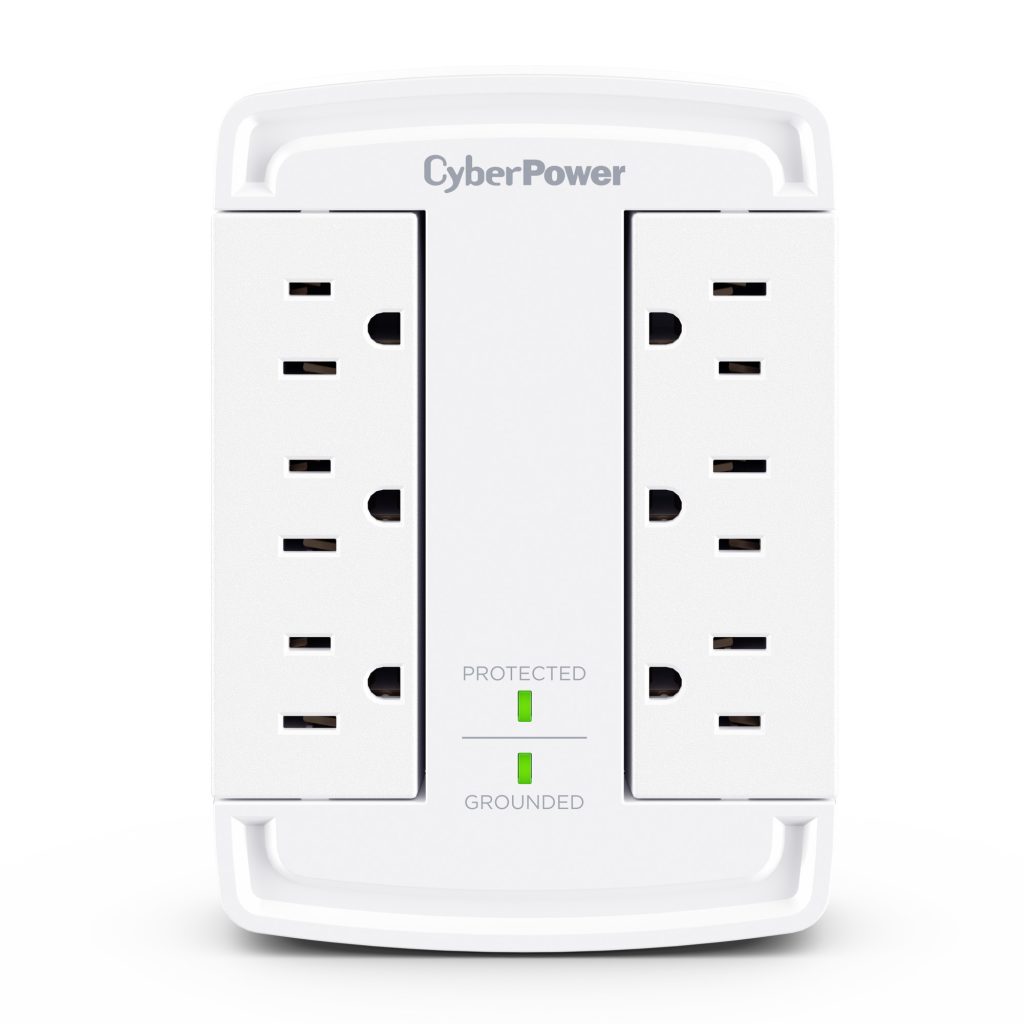

The CyberPower CSB6WS is a wall tap surge protector that converts a standard 2-outlet wall socket into six surge-protected outlets. It features dual swiveling outlet banks for flexible positioning and cord management, while 1800 joules of surge protection help safeguard computers, routers, modems, chargers, and other personal electronics.



Key Configuration

Model: CSB6WS | Product Type: Wall Tap Surge Protector | Outlet Expansion: Converts 2 outlets into 6 surge-protected outlets | Surge Protection Rating: 1800 joules | Outlet Design: Dual swiveling outlet banks | Noise Filtering: EMI/RFI noise filter | Protection Technology: Metal Oxide Varistor technology | Warranty: Lifetime Limited Warranty | Connected Equipment Guarantee: Included



Key Features

 · Expands a standard 2-outlet wall socket into six surge-protected outlets

 · Provides 1800 joules of protection against power spikes and electrical surges

 · Dual swiveling outlet banks support flexible plug positioning and improved cord management

 · Helps protect computers, routers, modems, chargers, and other personal electronics

 · EMI/RFI noise filter helps maintain cleaner power for connected equipment

 · Metal Oxide Varistor technology redirects surge energy through the ground circuit

 · Connected Equipment Guarantee covers properly connected equipment damaged by a power surge

 · Lifetime Limited Warranty covers defects in materials and workmanship



Technical Context

The CSB6WS uses MOV-based surge suppression to allow normal electrical current to pass while diverting excess voltage away from connected electronics during surge events. The EMI/RFI noise filter helps reduce electromagnetic and radio frequency interference that can affect picture and sound quality.



Installation Notes

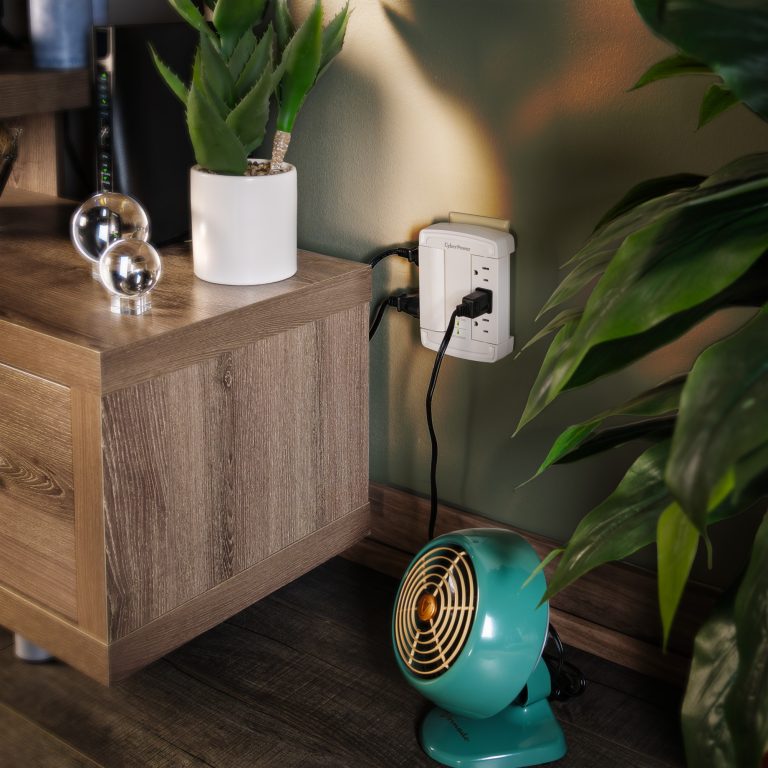

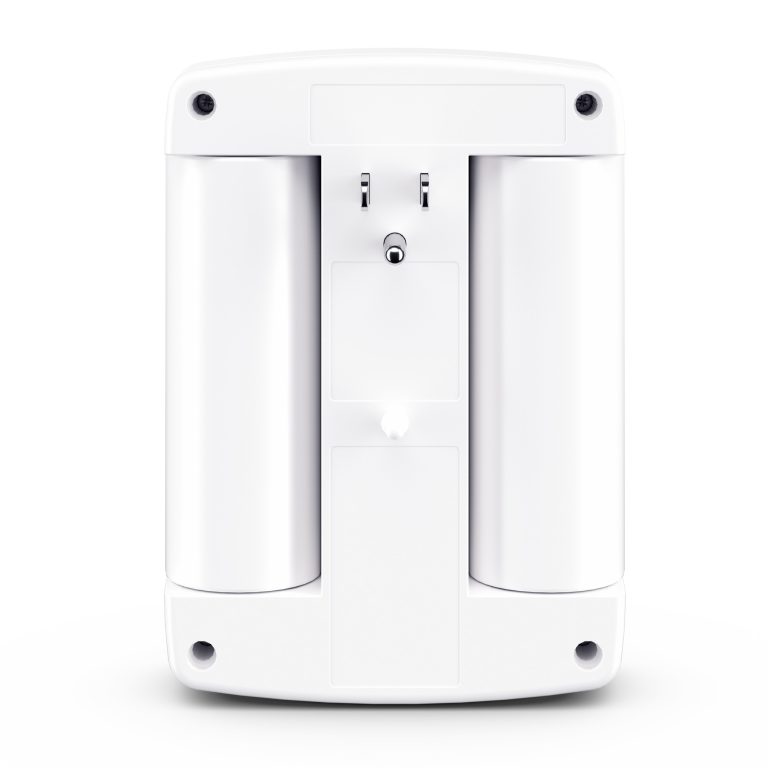

The wall tap design installs directly into a standard wall outlet, making it useful for crowded areas where multiple chargers, computers, and electronics need protected power from limited plug space. The package includes the wall tap surge protector.

Input
Cord LengthWalltap
Input Plug TypeNEMA 5-15P
Maximum Input Current15A
Plug StyleWall Tap
Output
Outlet Type6 – NEMA 5-15R
Outlets – Total6
Surge Protection & Filtering
Attenuation32 dB
Clamping Voltage800V (H-N, H-G, N-G)
EMI/RFI Filtration150 KHz
100 MHz
Yes
Maximum Surge Current60000 A
Maximum Surge Current H-G15000 A
Maximum Surge Current H-N30000 A
Maximum Surge Current N-G15000 A
Maximum Surge Voltage6000
Surge Suppression (Joules)1800 J
Physical
ColorWhite
Form FactorWall Tap
Form Factors SupportedDirect Plug
Material of ConstructionPlastic
Dimensions
Physical Dimensions – (WxHxD) (cm)10.24 x 14.3 x 3.51 (cm)
Physical Dimensions – (WxHxD) (in)4.03 x 5.63 x 1.38 (in)
Physical Dimensions – (WxHxD) (mm)102 x 143 x 35 (mm)
Physical Weight (kg)0.27
Physical Weight (lb)0.6
Dimensions – Shipping
Shipping – Weight (kg)0.27
Shipping – Weight (lb)0.6
Shipping Dimensions – (WxHxD) (cm)12.38 x 18.73 x 6.99 (cm)
Shipping Dimensions – (WxHxD) (in)4.88 x 7.38 x 2.75 (in)
Shipping Dimensions – (WxHxD) (mm)123.83 x 187.33 x 69.85 (mm)
Certifications
EnvironmentalRoHS Compliant
SafetycETLus (UL498A/UL1449)
Warranty
CEG Amount$200000
Connected Equipment GuaranteeLifetime
Product WarrantyLimited Lifetime Warranty
