Product Overview
The CyberPower CSP604UCW is a 6-outlet surge protector designed to protect home and office electronics from power surges, energy spikes, storms, and electrical fluctuations. It provides 1500 joules of surge protection, includes a 4-foot power cord for flexible placement, and adds USB-A and USB-C charging ports for mobile devices.
Key Configuration
Model: CSP604UC | Product Type: Surge Protector | Outlets: 6 | Surge Protection Rating: 1500 joules | Power Cord Length: 4 ft | USB Ports: 1 USB-A, 1 USB-C | Protection Technology: Metal Oxide Varistor technology | Warranty: One Year Limited Warranty | Connected Equipment Guarantee: Included
Key Features
· Provides surge protection for computers, home office electronics, and sensitive devices
· Offers 1500 joules of protection against AC power surges and energy spikes
· Includes six outlets for connected electronics and accessories
· USB-A and USB-C ports charge smartphones, tablets, portable speakers, and compatible mobile devices
· 4-foot power cord supports flexible placement around desks, workstations, or office areas
· Metal Oxide Varistor technology redirects surge energy through the ground circuit
· Helps protect connected equipment from power spikes caused by storms and electrical fluctuations
· Connected Equipment Guarantee covers properly connected equipment damaged by a power surge
· One Year Limited Warranty covers defects in materials and workmanship
Technical Context
The CSP604UC uses MOV-based surge suppression to allow normal current to pass while redirecting excess voltage away from connected electronics during surge events. The integrated USB-A and USB-C charging ports provide convenient mobile device charging without occupying the primary AC outlets.
Installation Notes

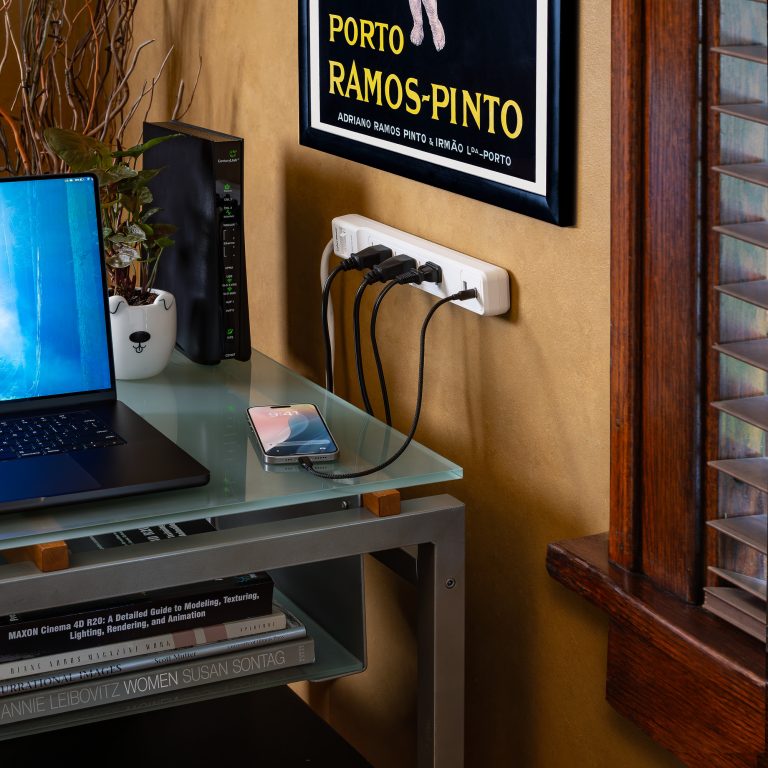

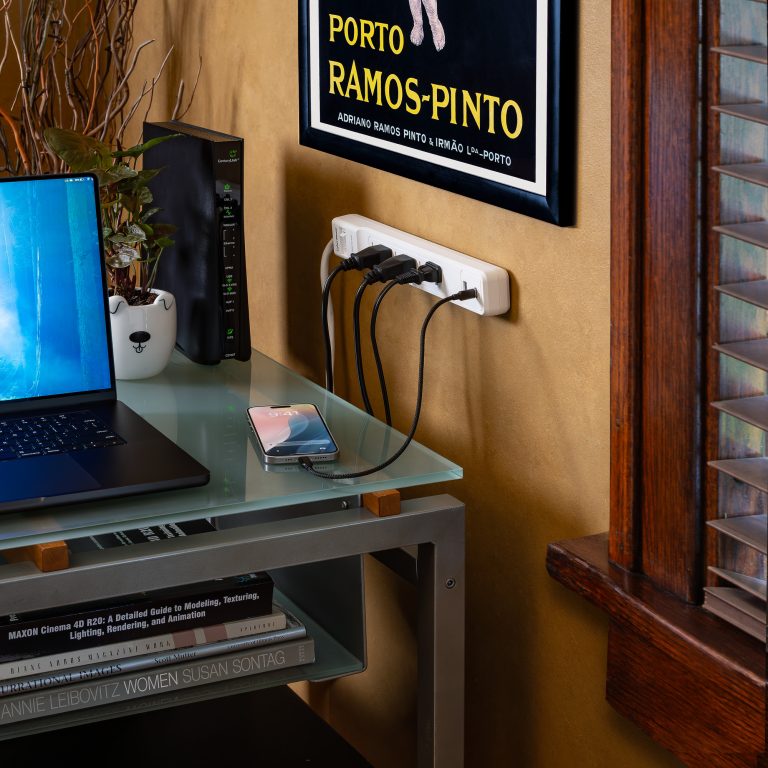

The 4-foot power cord allows the surge protector to be positioned near desks, workstations, or shared charging areas where protected outlets and USB charging are needed. The package includes the surge protector.
| Input | |
| Circuit Breaker | 15 A |
| Cord Length | 4 ft (1.2 m) |
| Input Plug Type | NEMA 5-15P |
| Maximum Input Current | 15A |
| Plug Style | 45° Offset Right |
| Output | |
| Outlet Type | 6 – NEMA 5-15R |
| Outlets – Total | 6 |
| USB Charge Port | Yes |
| USB Charge Port Amperage | 3 Amps (Shared) |
| USB Charge Port Quantity | 2 |
| USB Charge Port Type | 1 Type A 1 Type C |
| USB Charge Port Voltage | 5 VDC |
| USB Charge Port Watts | 18 Watts |
| Surge Protection & Filtering | |
| Attenuation | 32 dB |
| Clamping Voltage | 800V (H-N, H-G, N-G) |
| EMI/RFI Filtration | 150 KHz 100 MHz Yes |
| Maximum Surge Current | 45000 A |
| Maximum Surge Current H-G | 15000 A |
| Maximum Surge Current H-N | 15000 A |
| Maximum Surge Current N-G | 15000 A |
| Maximum Surge Voltage | 6000 |
| Surge Suppression (Joules) | 1500 J |
| Physical | |
| Color | White |
| Form Factor | Strip |
| Form Factors Supported | Keyhole (Wall Mount or Under-counter Installation) |
| Keyhole Mounting Slots | Yes |
| Material of Construction | Plastic |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 4.7 x 3.4 x 31.19 (cm) |
| Physical Dimensions – (WxHxD) (in) | 1.85 x 1.34 x 12.28 (in) |
| Physical Dimensions – (WxHxD) (mm) | 47 x 34 x 312 (mm) |
| Physical Weight (kg) | 0.44 |
| Physical Weight (lb) | 0.97 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 0.45 |
| Shipping – Weight (lb) | 1 |
| Shipping Dimensions – (WxHxD) (cm) | 11.43 x 5.08 x 35.56 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 4.5 x 2.0 x 14.0 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 114.3 x 50.8 x 355.6 (mm) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | cULus (UL1363/UL1449) DOE VI NR Can FCC ICES-003 |
| Warranty | |
| CEG Amount | $200000 |
| Connected Equipment Guarantee | Lifetime |
| Product Warranty | 1 Year Limited Warranty |
