CyberPower - CSP6WSUC - Wall-Tap Surge Protector with USB
Product Overview
The CyberPower CSP6WSUC is a wall-tap surge protector with USB charging designed to protect home and office electronics from power surges, energy spikes, storms, and electrical fluctuations. It provides 2400 joules of surge protection, includes six surge-protected AC outlets, and adds USB-A and USB-C charging for mobile and USB-enabled devices.
Key Configuration
Model: CSP6WSUC | Product Type: Wall-Tap Surge Protector | Outlets: 6 surge-protected AC outlets | Surge Protection Rating: 2400 joules | USB Ports: 1 USB-A, 1 USB-C | USB-A Output: 2.4A | USB-C Output: 15W | Noise Filtering: EMI/RFI noise filter | Protection Technology: Metal Oxide Varistor technology | Warranty: One Year Limited Warranty | Connected Equipment Guarantee: Included
Key Features
· Provides surge protection for computers, networking equipment, and other sensitive electronics
· Offers 2400 joules of protection against AC power surges and energy spikes
· Includes six surge-protected AC outlets for essential home and office devices
· USB-A port provides 2.4A charging for compatible mobile devices
· USB-C port delivers 15W power output for efficient USB-C charging
· EMI/RFI noise filter helps maintain cleaner power for connected equipment
· Metal Oxide Varistor technology redirects surge energy through the ground circuit
· Connected Equipment Guarantee covers properly connected equipment damaged by a power surge
· One Year Limited Warranty covers defects in materials and workmanship
Technical Context
The CSP6WSUC uses MOV-based surge suppression to allow normal current to pass while redirecting excess voltage away from connected devices during surge events. Its EMI/RFI noise filter helps reduce electromagnetic and radio frequency interference that can affect picture and sound quality.
Installation Notes

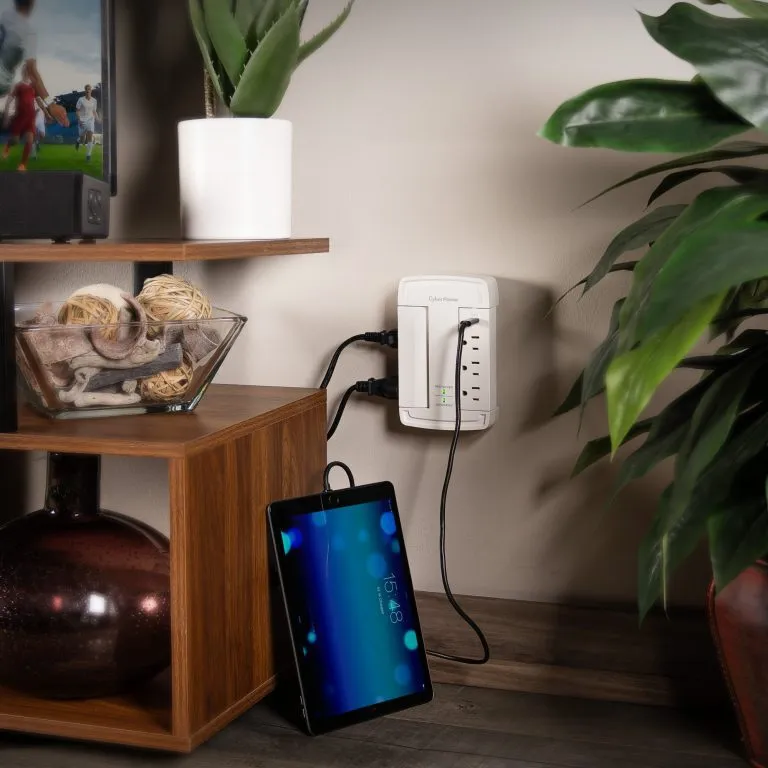

The wall-tap design is intended for direct outlet installation where additional protected AC outlets and USB charging are needed without using a separate corded power strip. The package includes the wall tap surge protector.
| Input | |
| Cord Length | Walltap |
| Input Plug Type | NEMA 5-15P |
| Maximum Input Current | 15A |
| Plug Style | Wall Tap |
| Output | |
| Outlet Type | 6 – NEMA 5-15R |
| Outlets – Total | 6 |
| USB Charge Port | Yes |
| USB Charge Port Amperage | 3 Amps (Shared) |
| USB Charge Port Quantity | 2 |
| USB Charge Port Type | 1 Type A 1 Type C |
| USB Charge Port Voltage | 5 VDC |
| USB Charge Port Watts | 18 Watts |
| Surge Protection & Filtering | |
| Attenuation | 32 dB |
| Clamping Voltage | 800V (H-N, H-G, N-G) |
| EMI/RFI Filtration | 150 KHz 100 MHz Yes |
| Maximum Surge Current | 60000 A |
| Maximum Surge Current H-G | 15000 A |
| Maximum Surge Current H-N | 30000 A |
| Maximum Surge Current N-G | 15000 A |
| Maximum Surge Voltage | 6000 |
| Surge Suppression (Joules) | 2400 J |
| Physical | |
| Color | White |
| Form Factor | Wall Tap |
| Form Factors Supported | Direct Plug |
| Material of Construction | Plastic |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 10.39 x 17.6 x 3.51 (cm) |
| Physical Dimensions – (WxHxD) (in) | 4.09 x 6.93 x 1.38 (in) |
| Physical Dimensions – (WxHxD) (mm) | 104 x 176 x 35 (mm) |
| Physical Weight (kg) | 0.29 |
| Physical Weight (lb) | 0.64 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 0.36 |
| Shipping – Weight (lb) | 0.8 |
| Shipping Dimensions – (WxHxD) (cm) | 18.73 x 6.99 x 12.38 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 7.38 x 2.75 x 4.88 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 187.33 x 69.85 x 123.83 (mm) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | cULus (UL498A/UL1449) DOE VI NR Can FCC ICES-003 |
| Warranty | |
| CEG Amount | $300000 |
| Connected Equipment Guarantee | Lifetime |
| Product Warranty | 1 Year Limited Warranty |
