Product Overview

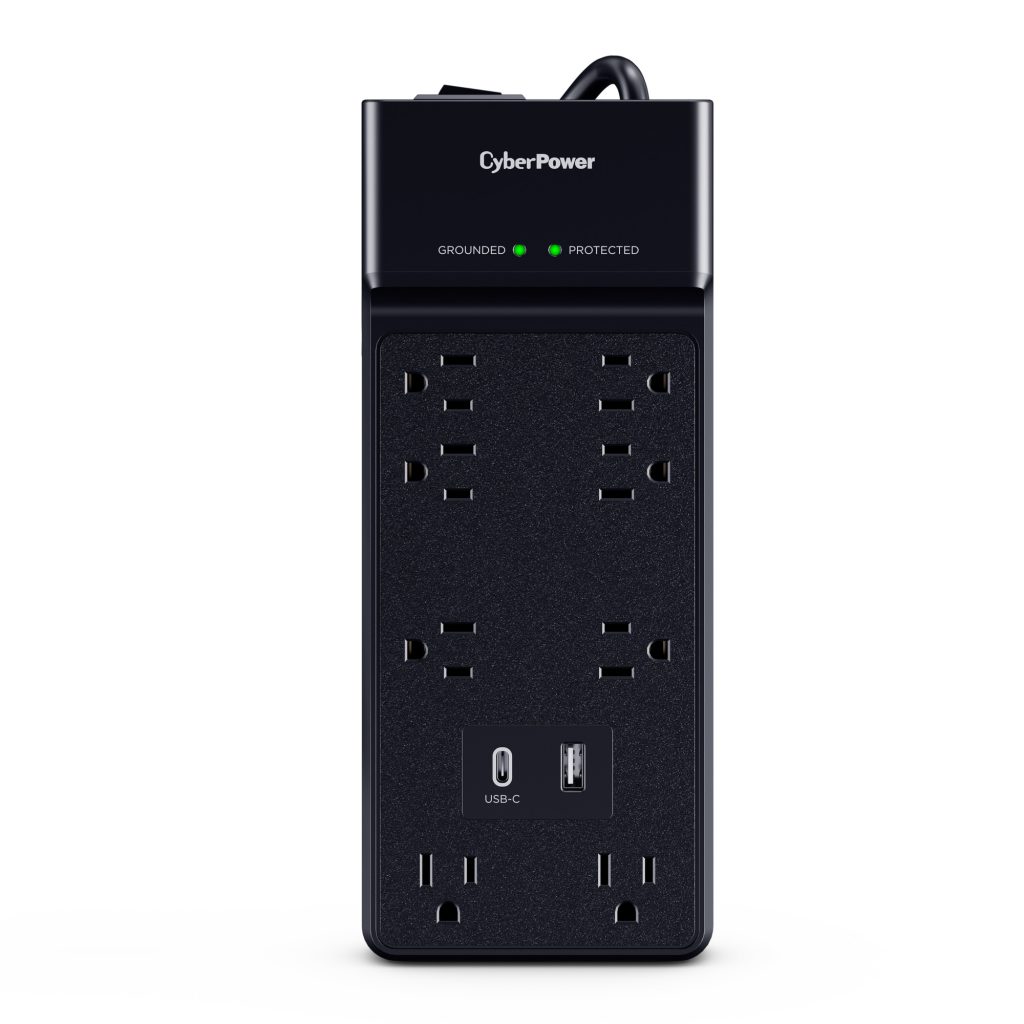

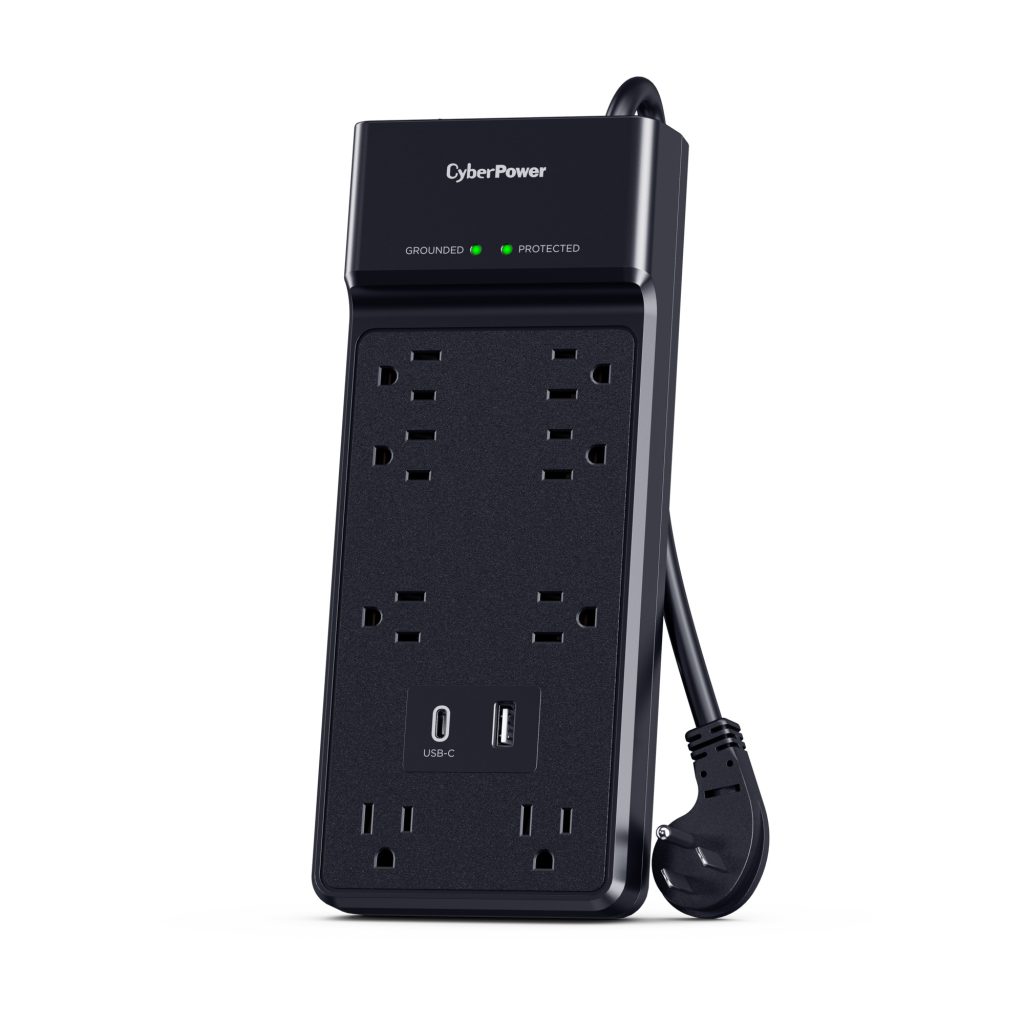

The CyberPower CSP806UC18 is an 8-outlet surge protector designed to protect home and office electronics from power spikes caused by storms and electrical fluctuations. It provides 2400 joules of surge protection, includes a sturdy 6-foot cord for flexible setup, and adds USB-A and USB-C charging ports for phones, tablets, and other mobile devices.
Key Configuration
Model: CSP806UC18 | Product Type: Surge Protector | Outlets: 8 AC outlets | Surge Protection Rating: 2400 joules | Power Cord Length: 6 ft | USB Ports: 1 USB-A, 1 USB-C | Protection Technology: Metal Oxide Varistor technology | Warranty: One Year Limited Warranty | Connected Equipment Guarantee: Included
Key Features
· Provides surge protection for computers, monitors, and other sensitive electronics
· Offers 2400 joules of protection against AC power surges and spikes
· Includes eight AC outlets for home or office technology setups

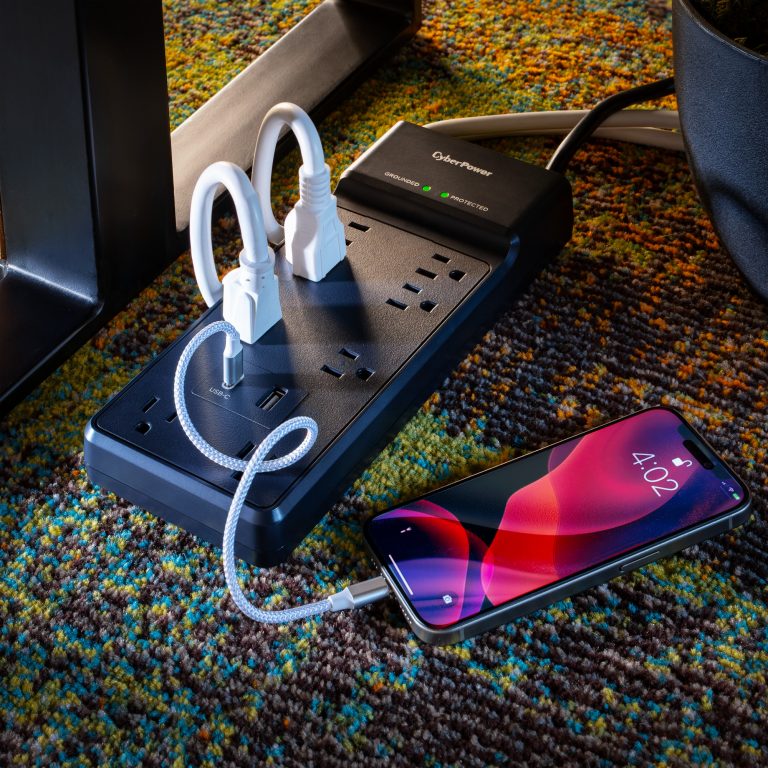

· USB-A and USB-C ports charge phones, tablets, portable speakers, and compatible mobile devices
· Wide spaced outlets accommodate larger power adapters without blocking adjacent outlets
· 6-foot cord supports flexible placement around desks, workstations, or entertainment areas
· Metal Oxide Varistor technology redirects surge energy through the ground circuit
· Connected Equipment Guarantee covers properly connected equipment damaged by a power surge
· One Year Limited Warranty covers defects in materials and workmanship
Technical Context
The CSP806UC18 uses MOV-based surge suppression to allow normal current to pass while redirecting excess voltage away from connected electronics during surge events. Its USB-A and USB-C ports provide convenient device charging without occupying the primary AC outlets.
Installation Notes
The 6-foot cord supports flexible placement near home office desks, monitors, entertainment systems, or shared charging areas. The package includes the surge protector.
| Input | |
| Circuit Breaker | 15 A |
| Cord Length | 6 ft (1.8 m) |
| Input Plug Type | NEMA 5-15P |
| Input Voltage | 120 VAC |
| Maximum Input Current | 15A |
| On/Off Switch | Yes |
| Plug Style | 45° Offset Right |
| Switch | Non-Lighted On/Off – Reset |
| Output | |
| Outlet Type | 8 – NEMA 5-15R |
| Outlets – Total | 8 |
| USB Charge Port | Yes |
| USB Charge Port Amperage | 3 Amps (Shared) |
| USB Charge Port Quantity | 2 |
| USB Charge Port Type | 1 Type A 1 Type C |
| USB Charge Port Voltage | 5 VDC |
| USB Charge Port Watts | 18 Watts |
| Watts | 1875 W |
| Surge Protection & Filtering | |
| Attenuation | 32 dB |
| Clamping Voltage | 800V (H-N, H-G, N-G) |
| EMI/RFI Filtration | 150 KHz 100 MHz yes |
| Maximum Surge Current | 60000 A |
| Maximum Surge Current H-G | 15000 A |
| Maximum Surge Current H-N | 30000 A |
| Maximum Surge Current N-G | 15000 A |
| Maximum Surge Voltage | 6000 V |
| Surge Suppression (Joules) | 2400 J |
| Physical | |
| Color | Black |
| Form Factor | Strip |
| Form Factors Supported | Keyhole (Wall Mount or Under-counter Installation) |

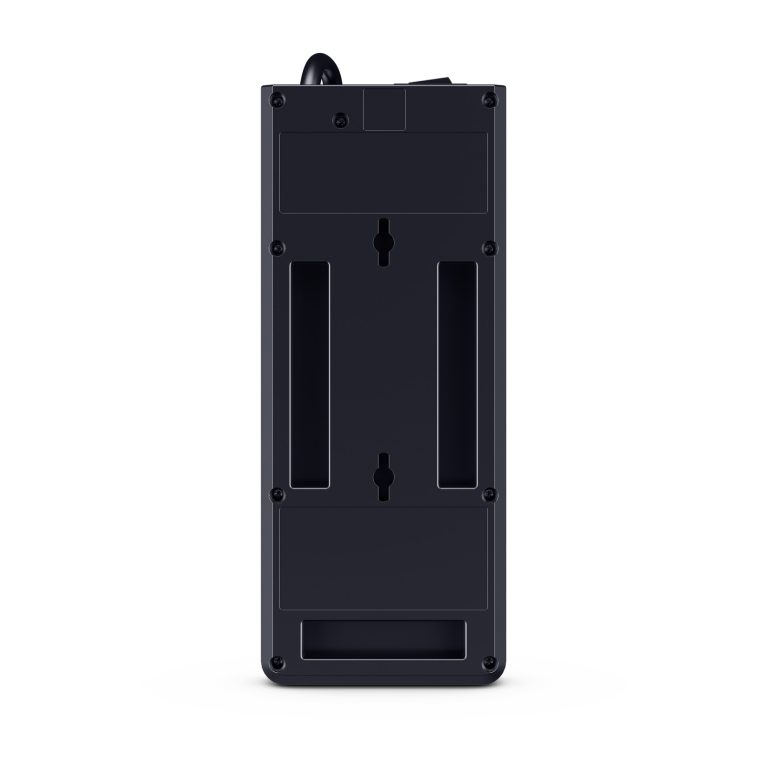

| Keyhole Mounting Slots | Yes |
| Material of Construction | Plastic |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 10.21 x 4.06 x 24.51 (cm) |
| Physical Dimensions – (WxHxD) (in) | 4.02 x 1.6 x 9.65 (in) |
| Physical Dimensions – (WxHxD) (mm) | 102 x 41 x 245 (mm) |
| Physical Weight (kg) | 0.63 |
| Physical Weight (lb) | 1.39 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 0.73 |
| Shipping – Weight (lb) | 1.6 |
| Shipping Dimensions – (WxHxD) (cm) | 39.37 x 5.72 x 19.05 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 15.5 x 2.25 x 7.5 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 393.7 x 57.15 x 190.5 (mm) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | cETLus (UL1363 & UL1449 compliant) DOE VI NR Can FCC ICES-003 |
| Warranty | |
| CEG Amount | $300000 |
| Connected Equipment Guarantee | Lifetime |
| Product Warranty | 1 Year Limited Warranty |
