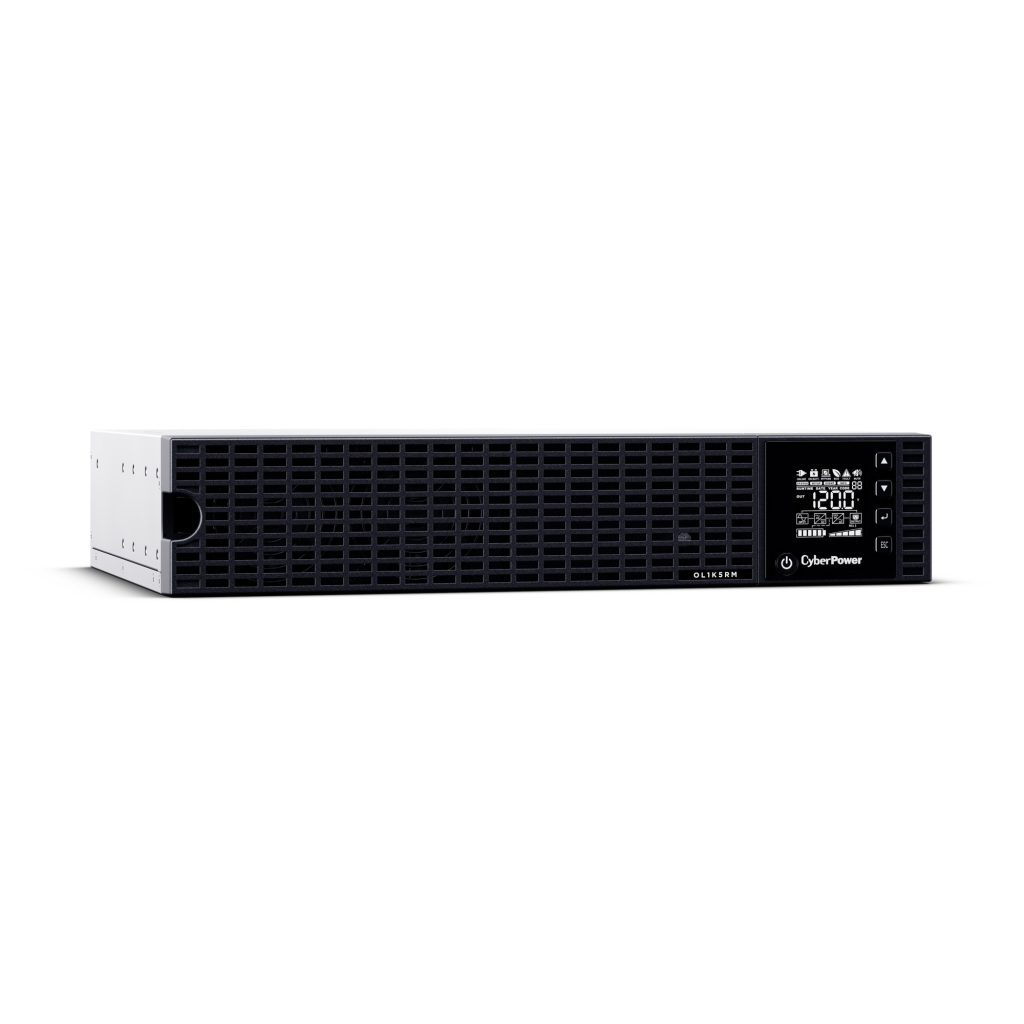

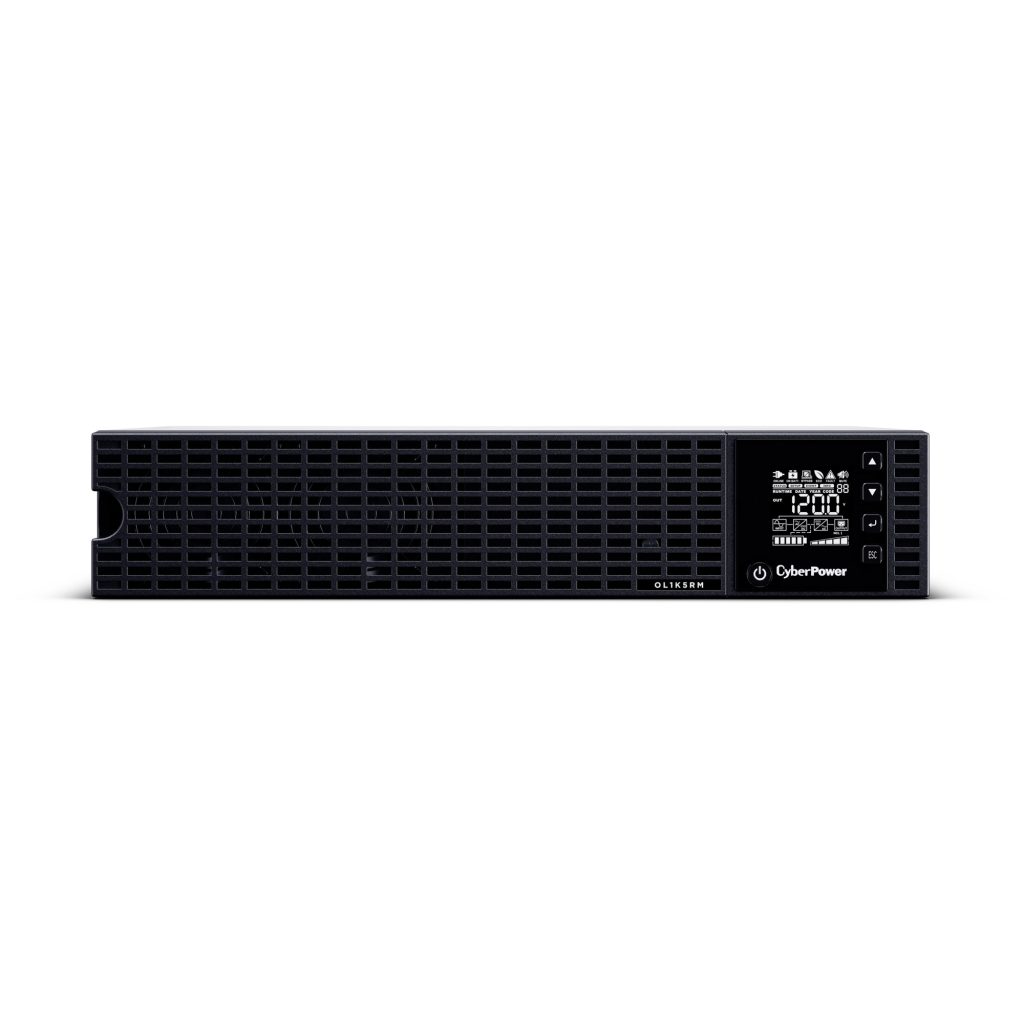

CyberPower - OL1K5RM - 1500VA Essential Online Rackmount UPS

Product Overview

The CyberPower OL1K5RM is an Essential Online rackmount UPS designed to prevent business interruptions and protect mission-critical enterprise network equipment. It uses double-conversion topology with sine wave output, zero transfer time, generator compatibility, and expandable runtime through compatible Extended Battery Modules.

Key Configuration

Model: OL1K5RM | Product Type: Rackmount Online UPS | Topology: Double-conversion | Output Waveform: Sine wave | Transfer Time: 0 ms | Extended Runtime: Supports up to 10 EBMs | Compatible EBM: BP36VL2U02 | Management Option: RMCARD205 | Connectivity: USB and Serial | Warranty: Three-Year Warranty | Connected Equipment Guarantee: $400,000

Key Features

 · Double-conversion topology provides clean and consistent power for sensitive equipment

 · Sine wave output supports critical devices with Active PFC power supplies

 · Zero transfer time protects connected equipment when utility power is lost

 · Generator compatibility delivers stable sine wave output from generator input power

 · Extended Battery Module support allows runtime expansion with up to 10 EBMs

 · Fast Charge Technology restores battery charge from 0-90% within 4 hours

 · Smart Battery Management uses a three-cycle charging process to extend battery life

 · GreenPower UPS ECO Mode improves efficiency above 96%

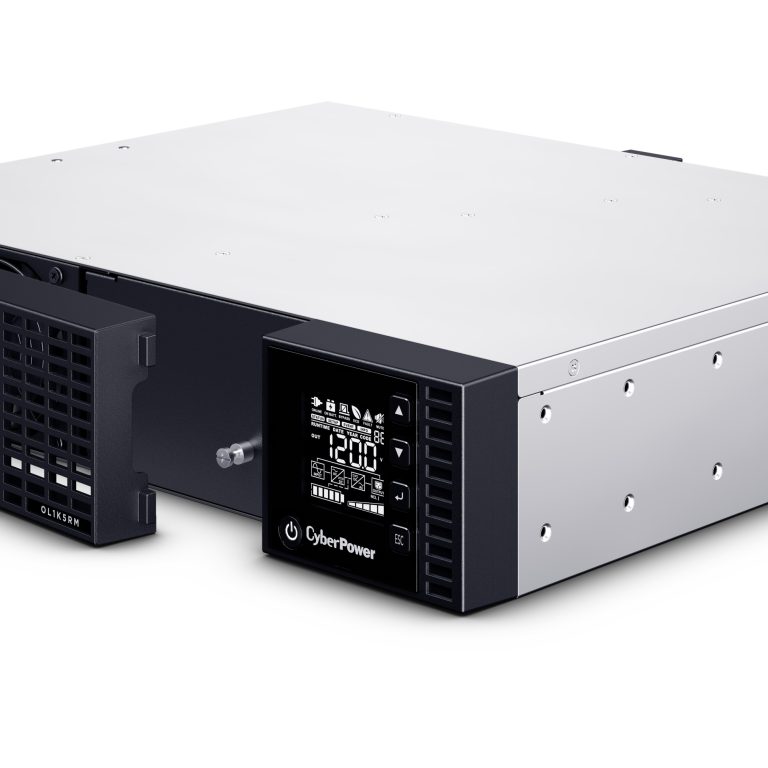

 · Hot-swappable batteries help reduce downtime during battery replacement

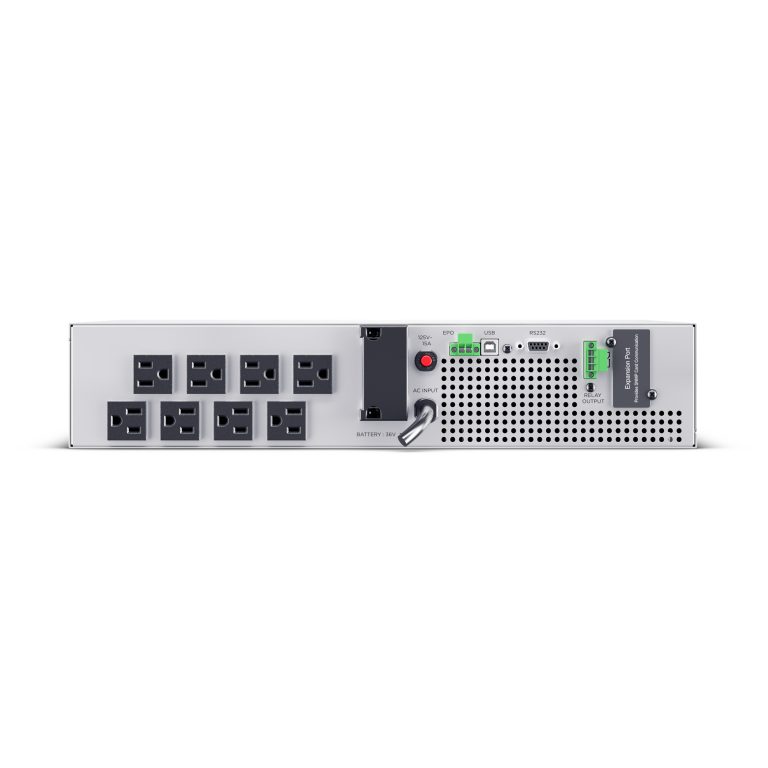

 · USB and serial connectivity support power management and auto-shutdown integration

 · PowerPanel Business Edition software supports remote monitoring and UPS management

 · Optional RMCARD205 enables web, CLI, and network management system access

 · Emergency Power Off port supports emergency shutdown integration

 · EMI/RFI filters help provide cleaner power to connected equipment

Technical Context

The OL1K5RM converts incoming AC power to DC and then back to clean AC output, allowing it to deliver consistent sine wave power regardless of incoming utility conditions. This double-conversion design is suited for core network equipment, corporate servers, lab equipment, and other sensitive electronic devices that require uninterrupted power correction.

Installation Notes

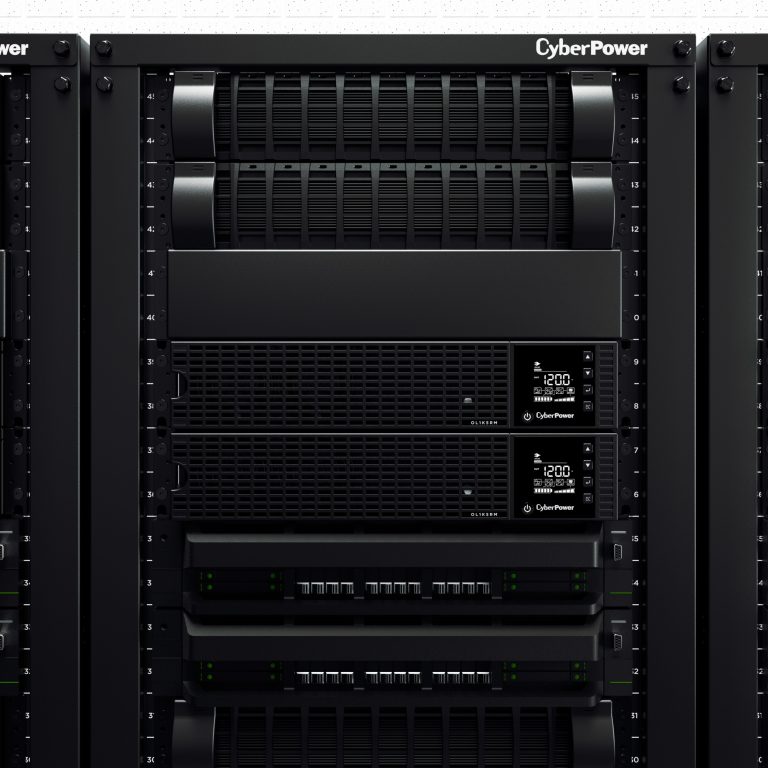

The rackmount design supports horizontal rack installation and includes rackmount rails, communication cables, mounting hardware, rubber pads, cage nuts, screw hole dust covers, documentation, warranty card, and PowerPanel Management Software download card. Firmware upgrades require the optional RMCARD205 installed in the UPS and are performed through the web management interface.
