CyberPower - OL1K5RTHD - 1500VA Smart App Online 2U Rackmount UPS
Product Overview
The CyberPower OL1K5RTHD is a double-conversion UPS designed to provide seamless, clean power protection for servers, network equipment, storage systems, and other sensitive electronics. It features sine wave output, individual outlet control, a color TFT LCD interface, and support for extended runtime with optional battery modules.
Key Configuration
Model: OL1K5RTHD | Product Type: Double-Conversion UPS | Power Factor: 0.9 | Display: Auto-rotating color TFT LCD | Remote Management: Optional RMCARD205 or RMCARD400 | Extended Runtime: Supports up to 10 BP36VL2U01 EBMs | Installation: Rack or tower configuration
Key Features
· Double-conversion topology provides consistent, clean power with no transfer time
· Sine wave output supports sensitive equipment and active PFC power supplies
· Individual outlet control allows outlets to be programmed, scheduled, or remotely managed
· Auto-rotating color LCD displays UPS status, controls, event logs, diagnostics, and alerts
· GreenPower UPS ECO Mode improves efficiency up to 96% and reduces power consumption

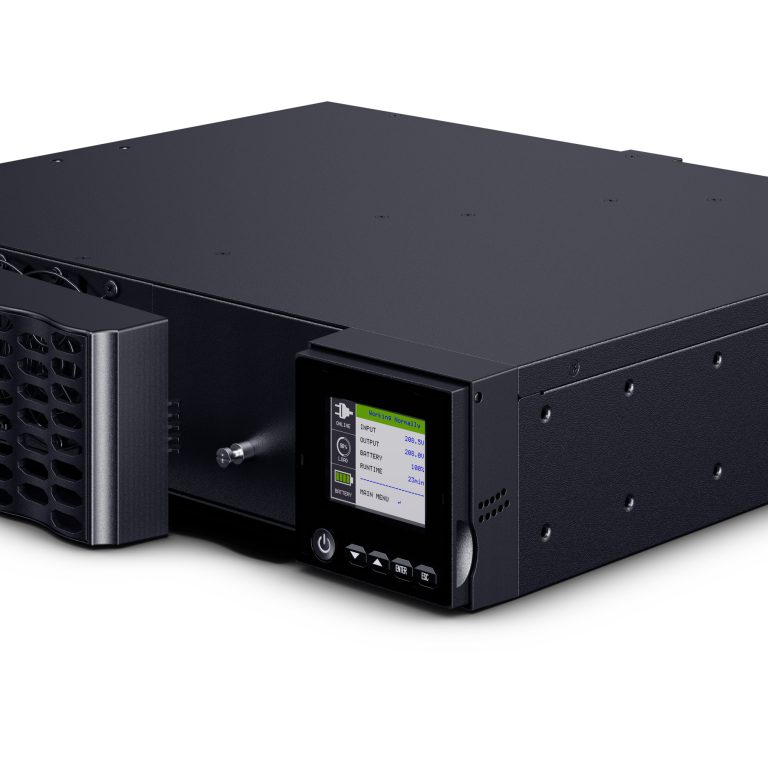

· Hot-swappable batteries help keep connected equipment running during UPS maintenance
· Fast Charge Technology restores batteries from 0-90% within four hours
· PowerPanel Business Software supports remote monitoring, management, and automated shutdown
· USB and serial connectivity support integration with Windows, Linux, and VMware systems
· Generator-compatible operation provides stable sine wave output from generator input power
Technical Context
The OL1K5RTHD uses double-conversion UPS architecture, meaning connected equipment receives clean output power regardless of incoming utility power quality. It is designed for critical environments where voltage fluctuations, outages, or power interruptions could affect servers, network infrastructure, lab equipment, or storage systems.
The optional BP36VL2U01 Extended Battery Module can be added for longer runtime, with support for up to ten EBMs connected in a daisy-chain configuration. Optional remote management cards allow browser, CLI, or network management system access for monitoring and control.
Installation Notes

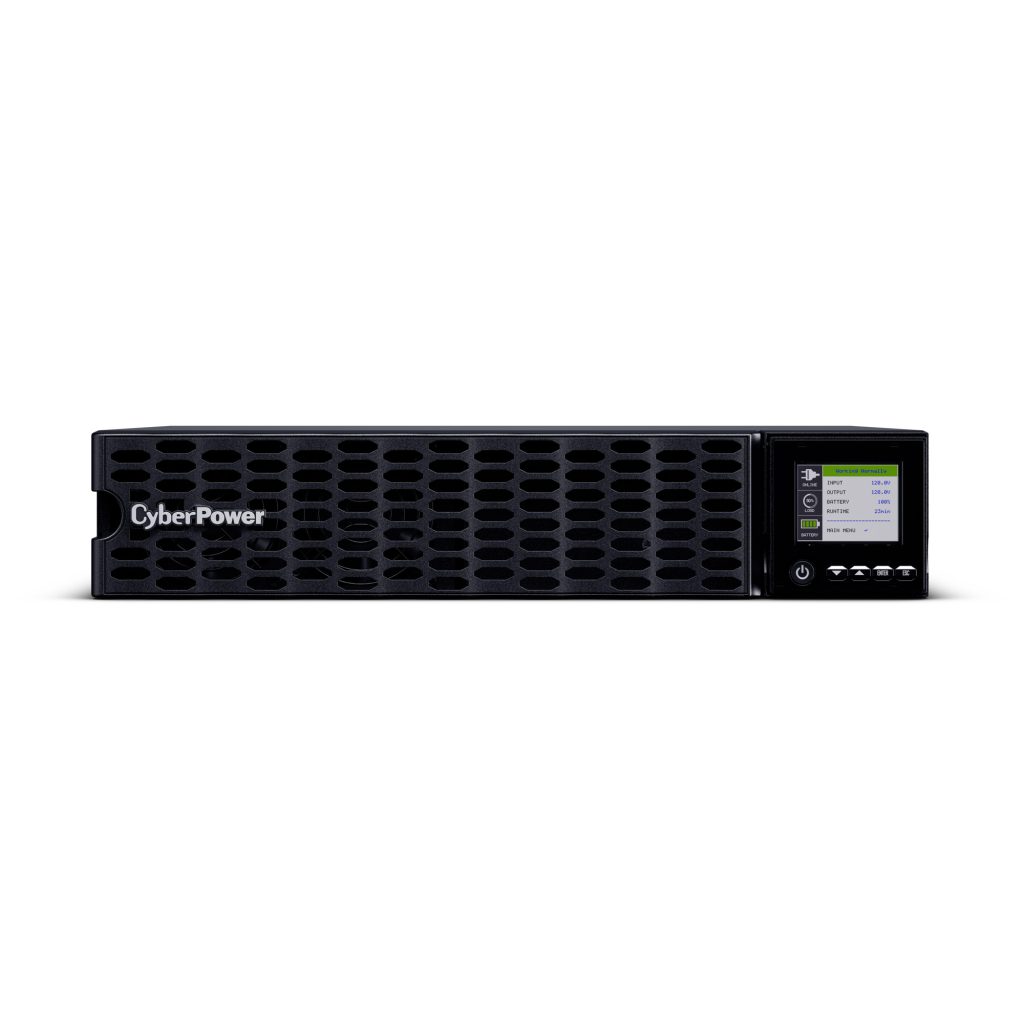

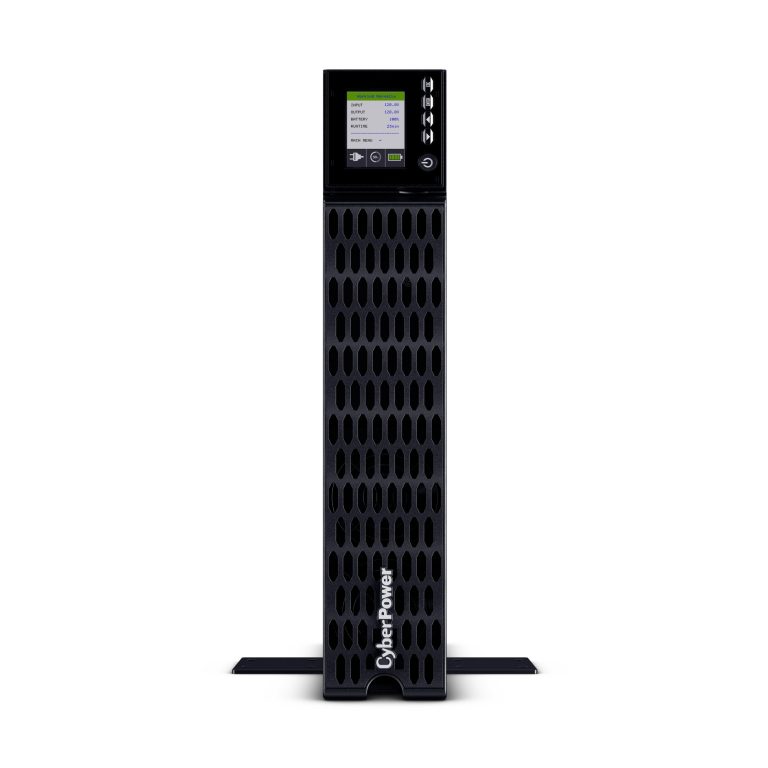

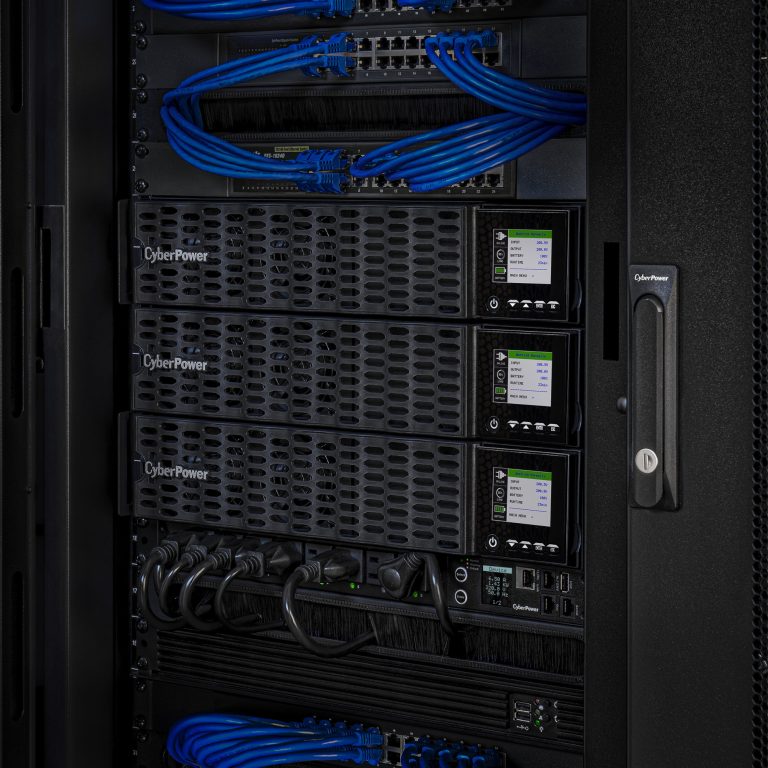

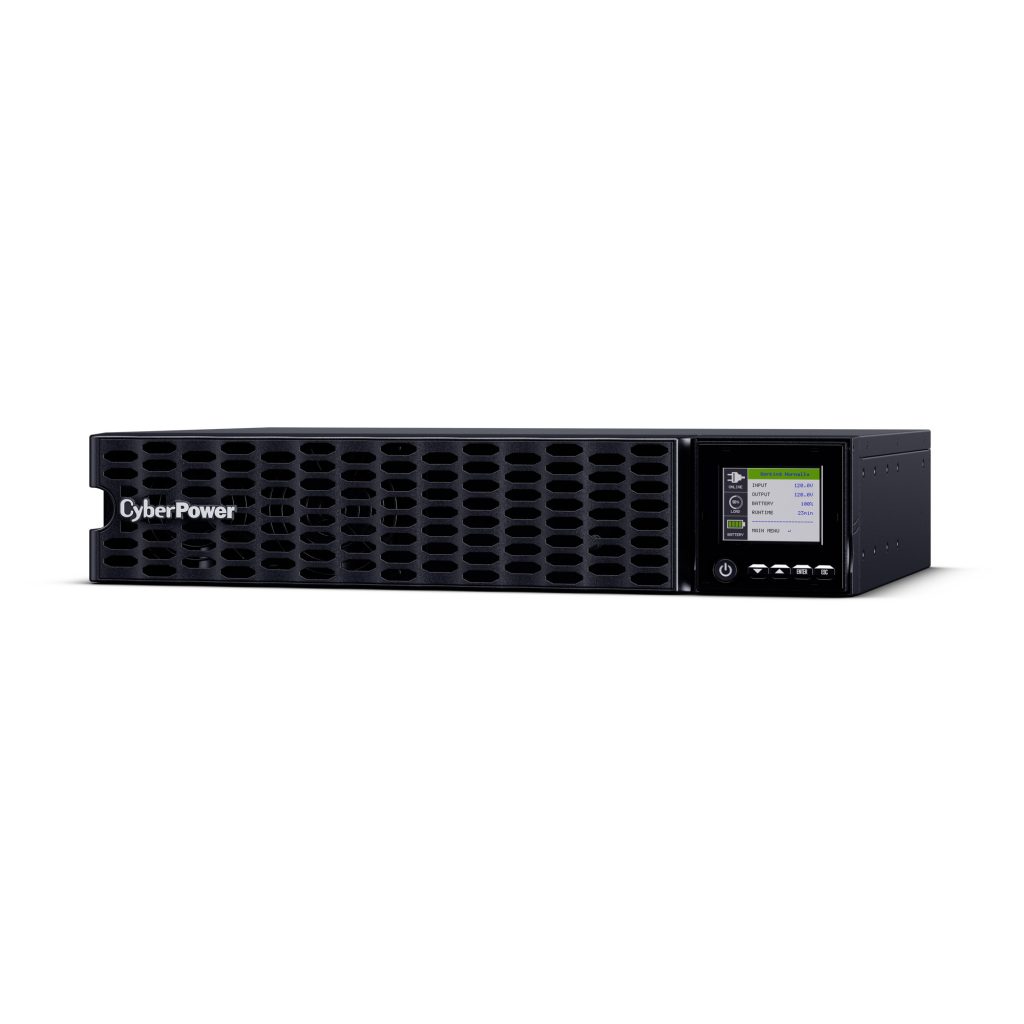

The OL1K5RTHD supports both horizontal rackmount and vertical tower installation. Rackmount rails, handles, ears, USB and serial cables, software download card, mounting hardware, rubber pads, and documentation are included for installation and setup.
| General | |
| Energy Saving | ECO Mode Efficiency >96% |
| Energy Star Certified | Yes |
| UPS Topology | Online Double Conversion |
| Battery | |
| Battery Equalization Technology | Yes |
| Battery Quantity | 3 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Extended Battery Module | BP36VL2U01 |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290X3E |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 4 min |
| Runtime at Half Load | 12.5 min |
| Smart Battery Management (SBM) Mode | Yes |
| Typical Recharge Time | 4 Hours (0% to 90% charged) |
| User Replaceable Battery | Yes |
| Input | |
| Backfeed Protection | No |
| Circuit Breaker | 20 A |
| Cold Start | Yes |
| Cord Length | 10 ft (3.0 m) |
| Input Frequency Range | 40 Hz – 70 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Power Factor | 0.99 |
| Input Voltage Range | 60 VAC – 69 VAC for 0–60% Load 70 VAC – 79 VAC for 0–70% Load 80 VAC – 89 VAC for 0–80% Load 90 – 95 VAC for 0–90% load |
| Nominal Input Voltage | 100 – 125 VAC |
| Output | |
| Bypass | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| ECO Mode Voltage Regulation | ±10%, ±15% (configurable) |
| Harmonic Distortion | < 3% at Linear Load < 5% at Non-Linear Load |
| Maintenance Bypass | Yes |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 0.25Hz (auto-sensing or configurable) |
| On Battery Voltage | 100/110/115/120/125 VAC ± 2% (configurable) |
| On Battery Waveform | Sine Wave |

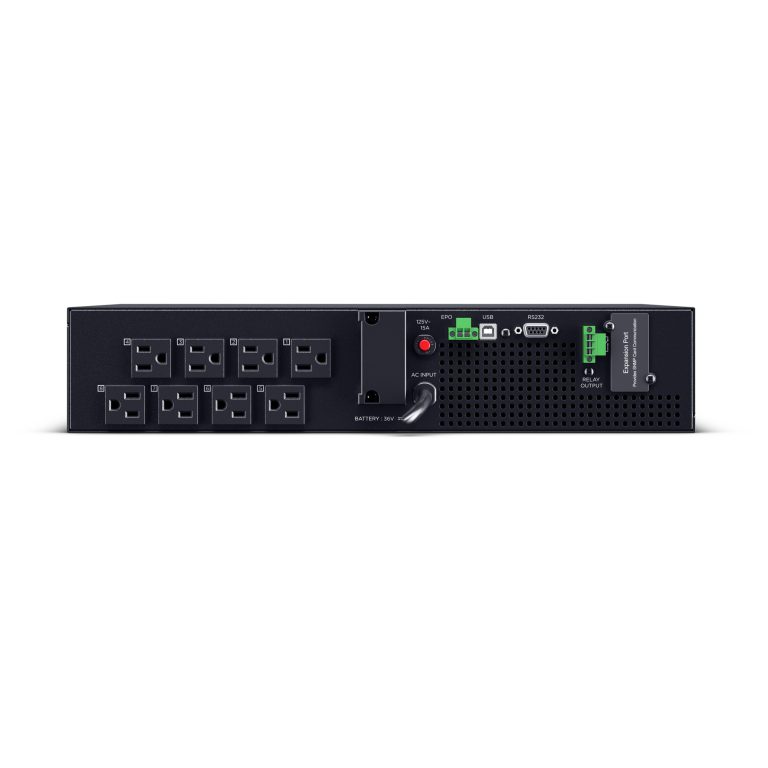

| Outlet Type | 8 – NEMA 5-15R |
| Outlets – Total | 8 |
| Output Power Factor | 0.9 |
| Short Circuit Protection | UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection |
| Typical Transfer Time | 0 ms |
| USB Charge Port | No |
| VA | 1500 VA |
| Watts | 1350 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression (Joules) | 710 J |
| Management & Communications | |
| Audible Alarms | Battery Mode Low Battery Overload UPS Fault |
| Dry Contacts | Yes |
| Emergency Power Off (EPO) Port | Yes |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On (White) |
| Management Cable | USB Cable |
| Removable LCD Control Panel Option | No |
| Rotatable LCD Control Panel Option | Yes |
| SNMP / HTTP Remote Monitoring | Yes – with optional RMCARD205 |
| Serial Port | 1 Serial |
| Software (Free Download) | PowerPanel® Business |
| Physical | |
| Chassis Color | Black |
| Form Factor | Rack / Tower |
| Front Panel Color | Black |
| Material of Construction | Metal |
| Mounting Hardware | Yes |
| Rack Height | 2U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.31 x 8.64 x 38.0 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.05 x 3.4 x 14.96 (in) |
| Physical Dimensions – (WxHxD) (mm) | 433 x 86 x 380 (mm) |
| Physical Weight (kg) | 16.9 |
| Physical Weight (lb) | 37.26 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 20.7 |
| Shipping – Weight (lb) | 45.64 |
| Shipping Dimensions – (WxHxD) (cm) | 56.01 x 24.0 x 48.01 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 22.05 x 9.45 x 18.9 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 560.07 x 240.03 x 480.06 (mm) |
| Environmental | |
| Audible noise at 1m from surface of unit | 17.3 dBA to 47.6 dBA (0 to 100% load) |
| ECO Mode Thermal Dissipation | 144 BTU/hr |
| Online Thermal Dissipation | 395 BTU/hr |
| Operating Elevation | 0 – 9843 ft (0 – 3000 m) |
| Operating Relative Humidity | 0 – 90 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 49213 ft (0 – 14999 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778 CSA C22.2 No.107.3 FCC Part 15 Class B |
| Warranty | |
| CEG Amount | $400000 |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U4A |
| Product Warranty | 3 Year Limited Warranty |
