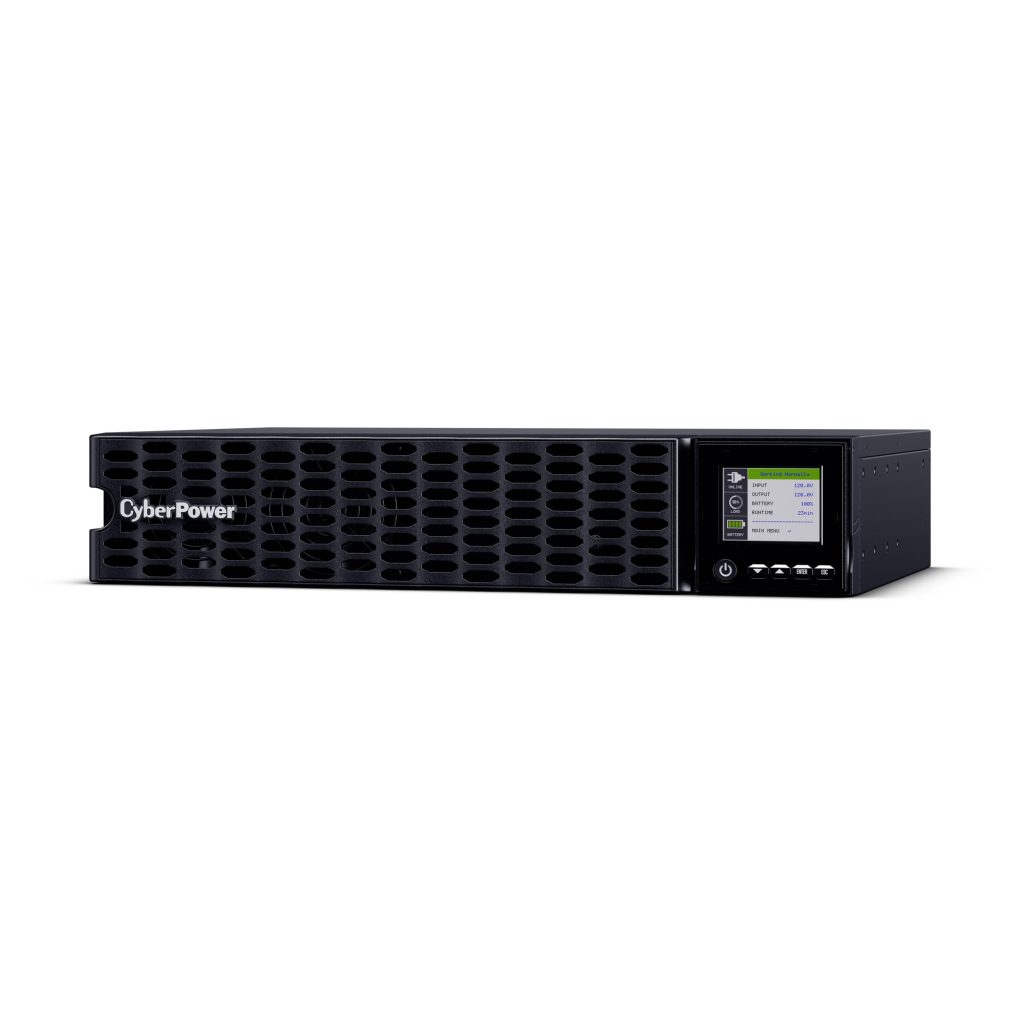

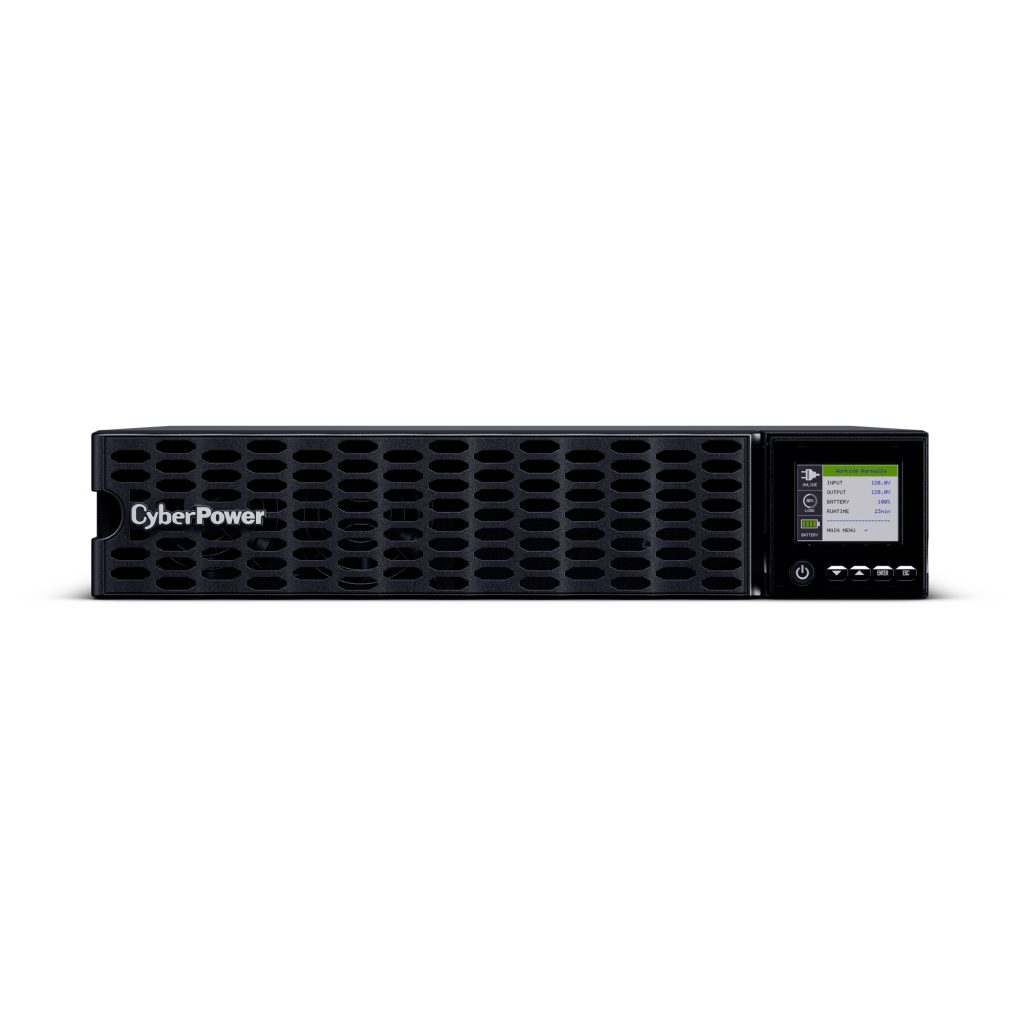

CyberPower - OL1KRTHD - 1000VA Smart App Online 2U Rackmount UPS
Product Overview
The CyberPower OL1KRTHD is a high-density online UPS designed to provide seamless power protection for core network equipment, servers, storage systems, and other sensitive electronics. It uses double-conversion topology with sine wave output, bank outlet control, and a multi-function color TFT LCD for clear monitoring and configuration.
Key Configuration
Model: OL1KRTHD | Product Type: Online UPS | Topology: Double-Conversion | Output: Sine Wave | Power Factor: 1 | Display: Auto-rotating color TFT LCD | Runtime Expansion: Supports up to 10 BP24VL2U01 EBMs | Installation: Rack or tower configuration
Key Features
· Double-conversion topology provides clean, consistent power without switching to battery mode
· Sine wave output supports sensitive equipment and active PFC power supplies
· Bank outlet control allows outlet pairs to be programmed, scheduled, or remotely controlled

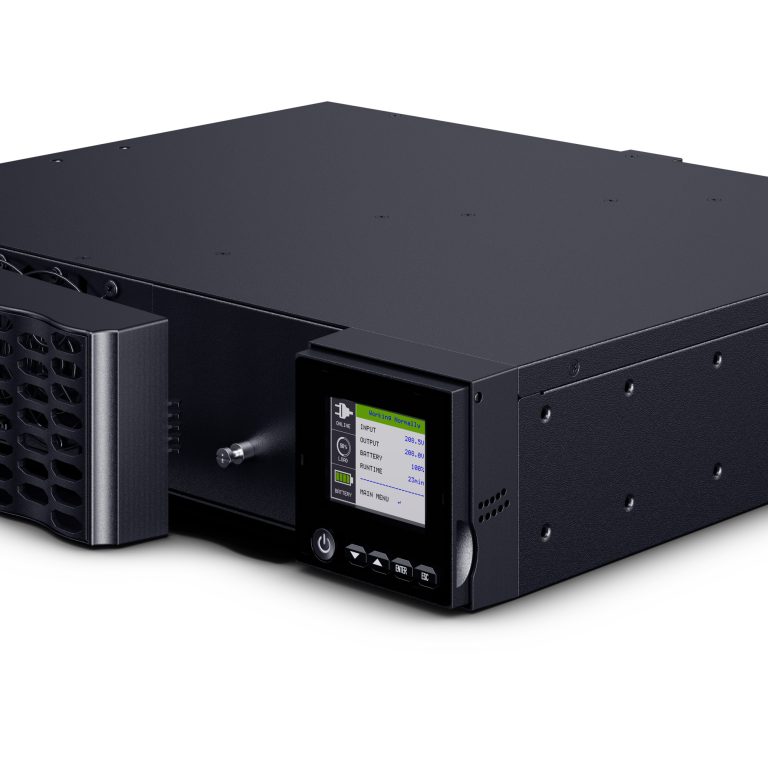

· Auto-rotating color TFT LCD displays UPS status, controls, event logs, diagnostics, and alerts
· GreenPower UPS ECO Mode improves efficiency up to 96% and reduces cooling costs
· Extended Battery Module support allows runtime expansion with up to 10 EBMs
· Fast Charge Technology restores batteries from 0-90% within four hours
· Smart Battery Management helps extend battery life and reduce heat during charge cycles
· PowerPanel Business Software supports remote monitoring, management, and automated shutdown
· USB and serial connectivity support integration with Windows, Linux, and VMware systems
Technical Context
The OL1KRTHD is built for environments where power quality and uptime are critical. Its double-conversion design keeps connected equipment supplied by continuously converted power, helping protect against utility fluctuations, outages, and unstable input conditions.
Optional RMCARD205 or RMCARD400 support enables remote UPS monitoring and control through a web browser, command line interface, or network management system. Generator compatibility, EMI/RFI filtering, Emergency Power Off, converter mode, and critical/non-critical load banks provide additional flexibility for professional infrastructure deployments.

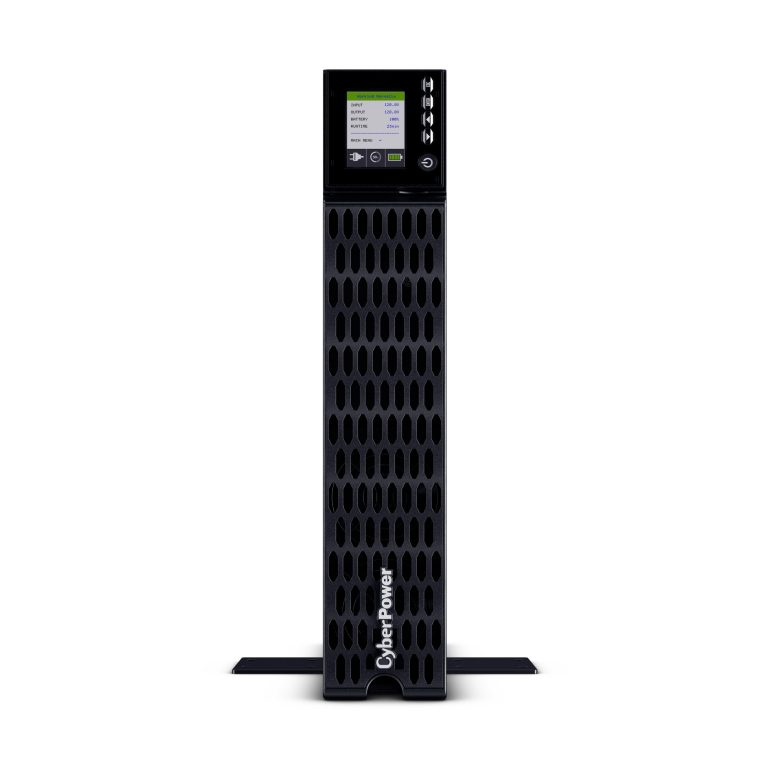

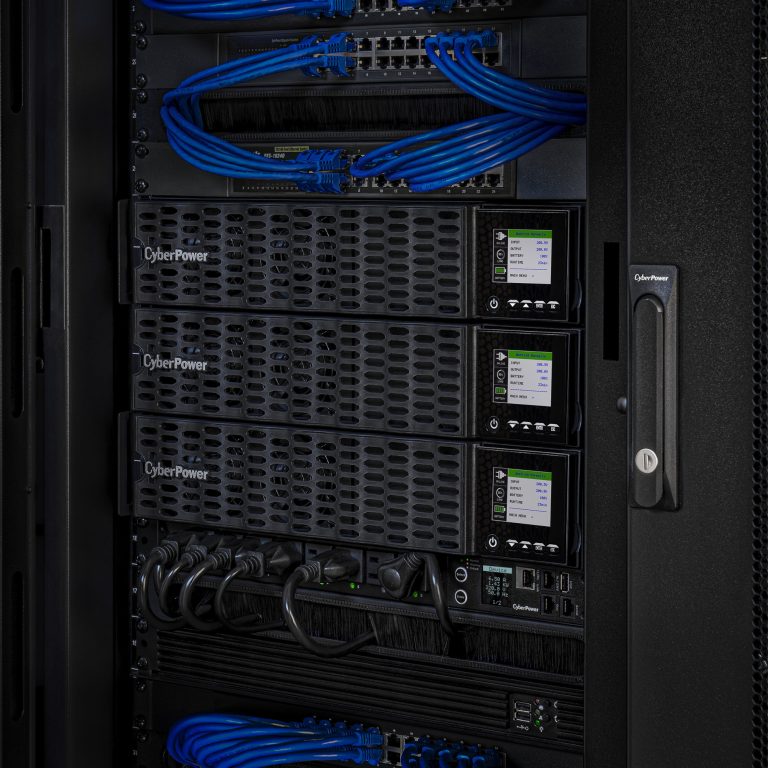

Installation Notes

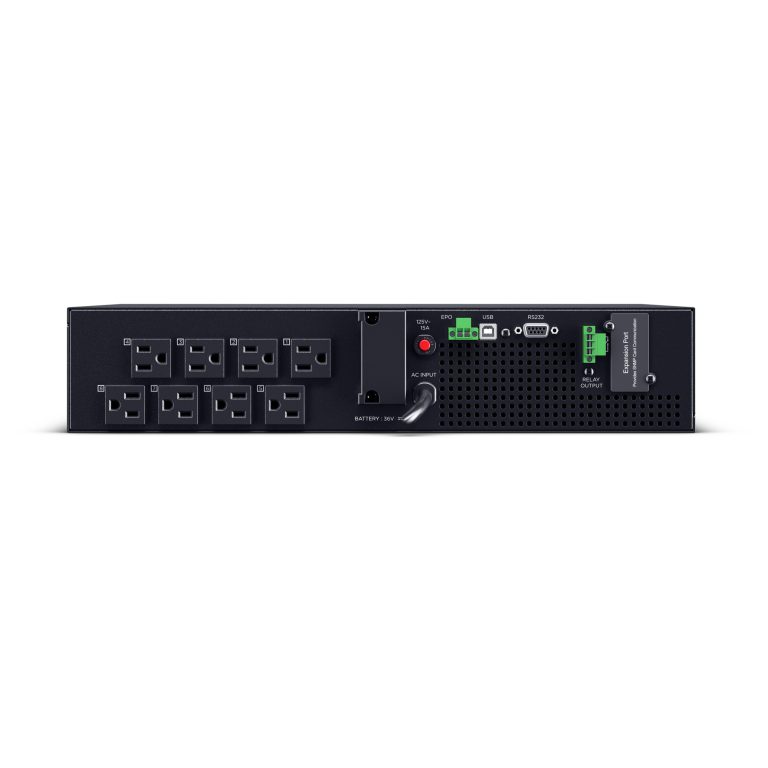

The OL1KRTHD supports both rack and tower installation. It includes rackmount rails, rackmount ears, handles, USB and RS-232 communication cables, mounting hardware, rubber pads, cage nuts, documentation, and a PowerPanel Management Software download card.
| General | |
| Energy Saving | ECO Mode Efficiency >96% |
| Energy Star Certified | Yes |
| UPS Topology | Online Double Conversion |
| Battery | |
| Battery Equalization Technology | Yes |
| Battery Quantity | 2 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Extended Battery Module | BP24VL2U01 |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290X2K |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 3.8 min |
| Runtime at Half Load | 12 min |
| Smart Battery Management (SBM) Mode | Yes |
| Typical Recharge Time | 4 Hours (0% to 90% charged) |
| User Replaceable Battery | Yes |
| Input | |
| Backfeed Protection | No |
| Circuit Breaker | 20 A |
| Cold Start | Yes |
| Cord Length | 10 ft (3.0 m) |
| Input Frequency Range | 40 Hz – 70 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Power Factor | 0.99 |
| Input Voltage Range | 60 VAC – 69 VAC for 0–60% Load 70 VAC – 79 VAC for 0–70% Load 80 VAC – 89 VAC for 0–80% Load 90 – 95 VAC for 0–90% load |
| Nominal Input Voltage | 100 – 125 VAC |
| Output | |
| Bypass | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| ECO Mode Voltage Regulation | ±10%, ±15% (configurable) |
| Harmonic Distortion | < 3% at Linear Load < 5% at Non-Linear Load |
| Maintenance Bypass | Yes |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 0.25Hz (auto-sensing or configurable) |
| On Battery Voltage | 100/110/115/120/125 VAC ± 2% (configurable) |
| On Battery Waveform | Sine Wave |
| Outlet Type | 8 – NEMA 5-15R |
| Outlets – Total | 8 |
| Output Power Factor | 1 |
| Short Circuit Protection | UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection |
| Typical Transfer Time | 0 ms |
| USB Charge Port | No |
| VA | 1000 VA |
| Watts | 1000 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression (Joules) | 710 J |
| Management & Communications | |
| Audible Alarms | Battery Mode Low Battery Overload UPS Fault |
| Dry Contacts | Yes |
| Emergency Power Off (EPO) Port | Yes |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On (White) |
| Management Cable | USB Cable |
| Removable LCD Control Panel Option | No |
| Rotatable LCD Control Panel Option | Yes |
| SNMP / HTTP Remote Monitoring | Yes – with optional RMCARD205 |
| Serial Port | 1 Serial |
| Software (Free Download) | PowerPanel® Business |
| Physical | |
| Chassis Color | Black |
| Form Factor | Rack / Tower |
| Front Panel Color | Black |
| Material of Construction | Metal |
| Mounting Hardware | Yes |
| Rack Height | 2U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.31 x 8.64 x 29.01 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.05 x 3.4 x 11.42 (in) |
| Physical Dimensions – (WxHxD) (mm) | 433 x 86 x 290 (mm) |
| Physical Weight (kg) | 12.7 |
| Physical Weight (lb) | 28 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 16.5 |
| Shipping – Weight (lb) | 36.38 |
| Shipping Dimensions – (WxHxD) (cm) | 56.01 x 24.0 x 38.99 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 22.05 x 9.45 x 15.35 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 560.07 x 240.03 x 389.89 (mm) |
| Environmental | |
| Audible noise at 1m from surface of unit | 18.1 dBA to 42.8 dBA (0 to 100% load) |
| ECO Mode Thermal Dissipation | 107 BTU/hr |
| Online Thermal Dissipation | 304 BTU/hr |
| Operating Elevation | 0 – 9843 ft (0 – 3000 m) |
| Operating Relative Humidity | 0 – 90 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 49213 ft (0 – 14999 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778 CSA C22.2 No.107.3 FCC Part 15 Class B |
| Warranty | |
| CEG Amount | $400000 |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U4A |
| Product Warranty | 3 Year Limited Warranty |
