CyberPower - OL750RTHD - 750VA Smart App Online 2U Rackmount UPS

Product Overview

The CyberPower OL750RTHD is a high-density online UPS designed to provide seamless power protection for core network equipment, corporate servers, storage systems, and other sensitive electronics. It uses double-conversion topology with sine wave output, bank outlet control, and a multi-function color TFT LCD for clear monitoring and configuration.

Key Configuration

Model: OL750RTHD | Product Type: Online UPS | Topology: Double-Conversion | Output: Sine Wave | Power Factor: 1 | Display: Auto-rotating color TFT LCD | Runtime Expansion: Supports up to 10 BP24VL2U01 EBMs | Installation: Rack or tower configuration

Key Features

 · Double-conversion topology provides clean, consistent power without switching to battery mode

 · Sine wave output supports sensitive equipment and active PFC power supplies

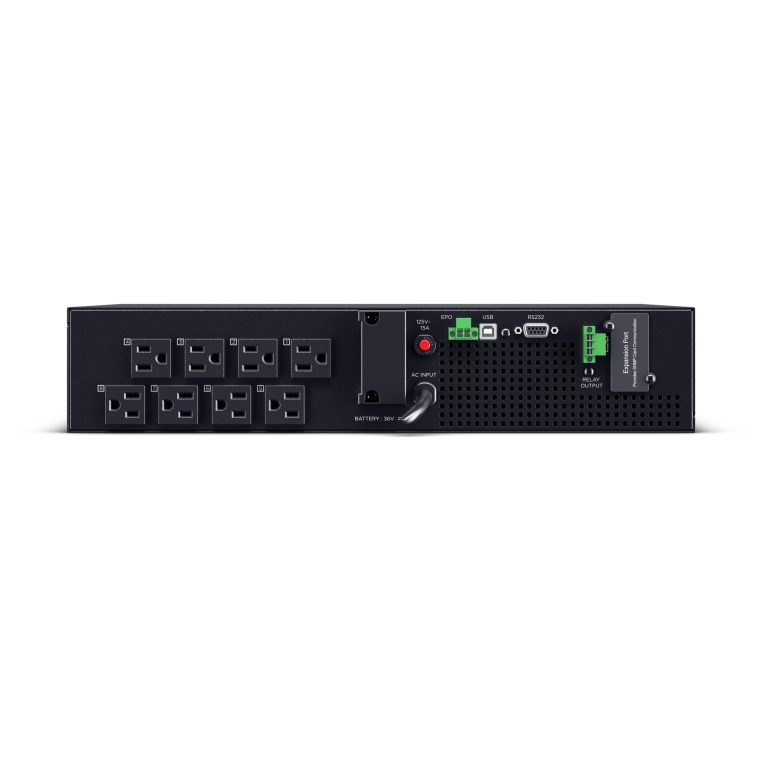

 · Bank outlet control allows outlet pairs to be programmed, scheduled, or remotely controlled

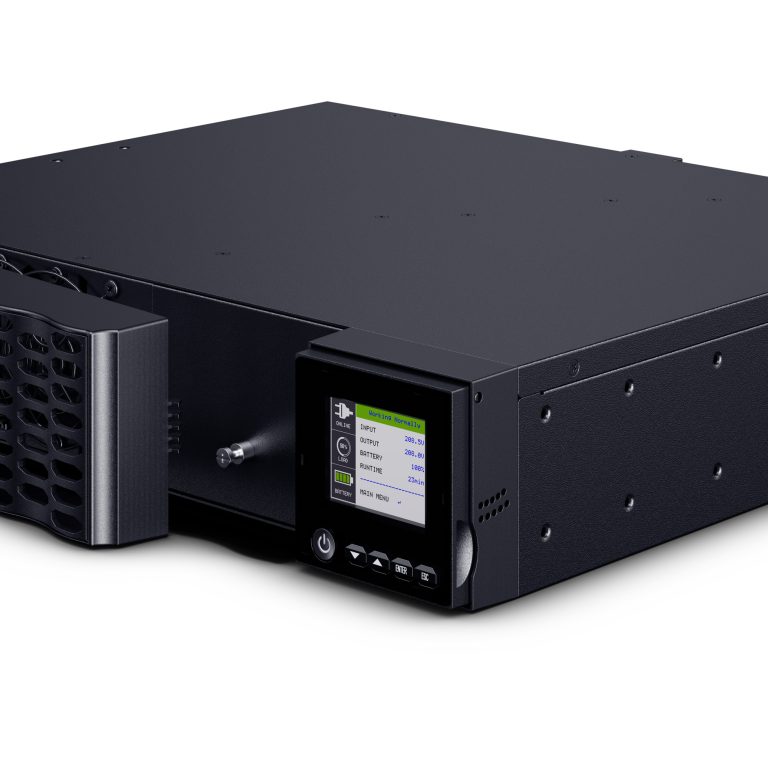

 · Auto-rotating color TFT LCD displays UPS status, controls, event logs, diagnostics, and alerts

 · GreenPower UPS ECO Mode improves efficiency up to 96% and reduces cooling costs

 · Extended Battery Module support allows runtime expansion with up to 10 EBMs

 · Fast Charge Technology restores batteries from 0-90% within four hours

 · Smart Battery Management helps extend battery life and reduce heat during charge cycles

 · PowerPanel Business Software supports remote monitoring, management, and automated shutdown

 · USB and serial connectivity support integration with Windows, Linux, and VMware systems

Technical Context

The OL750RTHD is built for environments where power quality, runtime flexibility, and uptime are critical. Its double-conversion design keeps connected equipment supplied by continuously converted power, helping protect against utility fluctuations, outages, and unstable input conditions.

Optional RMCARD205 or RMCARD400 support enables remote UPS monitoring and control through a web browser, command line interface, or network management system. Generator compatibility, EMI/RFI filtering, Emergency Power Off, converter mode, and critical/non-critical load banks provide additional flexibility for professional infrastructure deployments.

Installation Notes

The OL750RTHD supports both rack and tower installation. It includes rackmount rails, rackmount ears, handles, USB and RS-232 communication cables, mounting hardware, rubber pads, cage nuts, documentation, and a PowerPanel Management Software download card.
