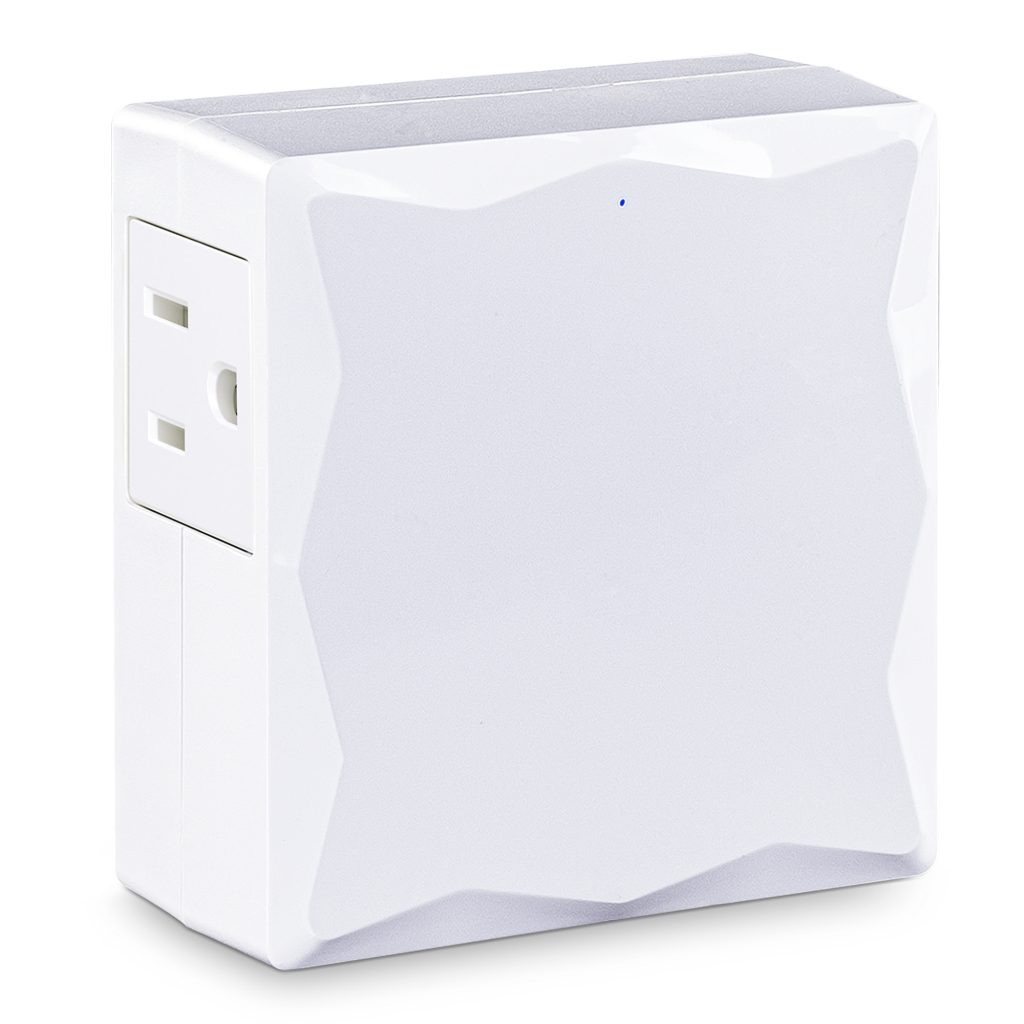

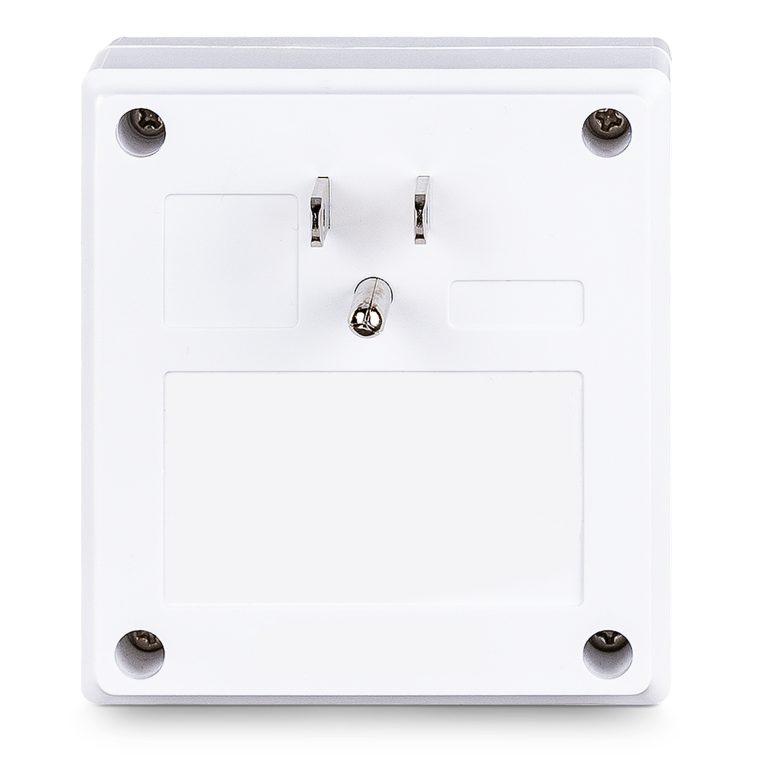

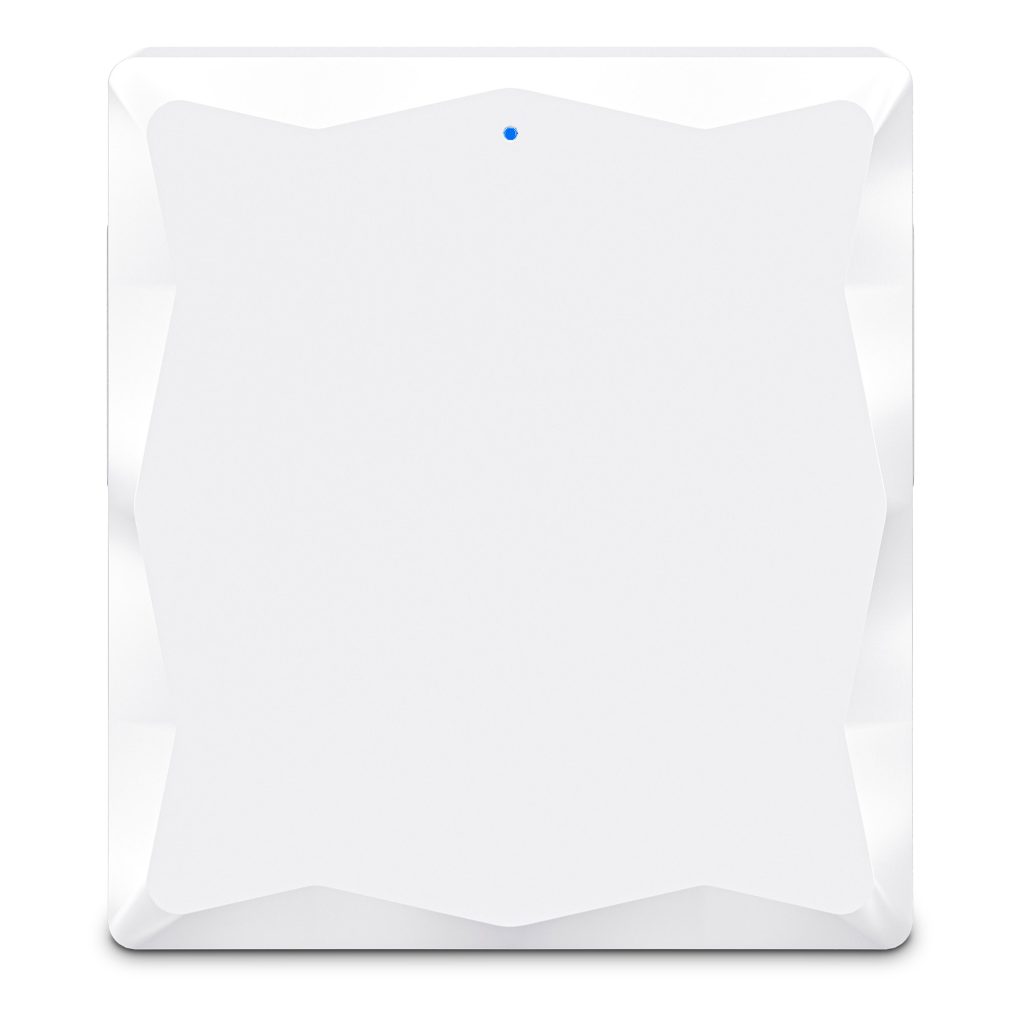

CyberPower - P2WUC3 - 2-Outlet Wall Tap Surge Protector with 3 USB-C Ports

Part number:
Price:

Product Overview

The CyberPower P2WUC3 is a 2-outlet wall tap surge protector with USB-C charging, designed to protect electronics while fitting cleanly into modern home and office spaces. Its low-profile design, side-facing outlets, and three USB-C ports make it useful for tight plug-in locations, behind appliances, and areas where multiple mobile devices need charging.



Key Configuration

Model: P2WUC3 | Product Type: Wall Tap Surge Protector with USB-C | AC Outlets: 2 side-facing outlets | USB Ports: 3 USB-C charge ports | Protection Technology: MOV surge suppression | Indicator: Blue micro-dot LED | Warranty: 1 year limited warranty | Connected Equipment Guarantee: $25,000



Key Features

 · Provides surge protection for appliances, personal electronics, and mobile devices

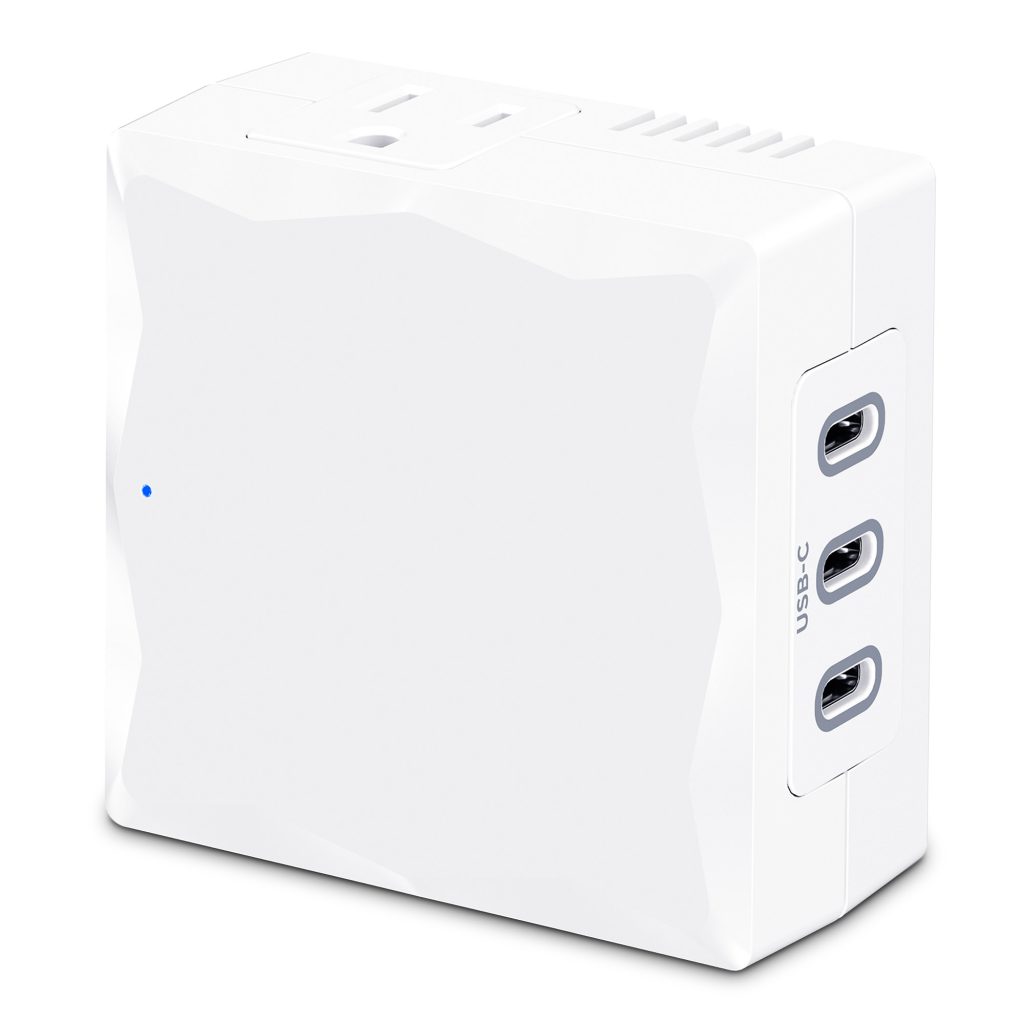

 · Includes three USB-C charge ports for tablets, smartphones, and other USB-C devices

 · Side-facing outlets keep the front profile clean and modern

 · Low-profile contour helps the unit fit in tight outlet locations

 · MOV technology diverts power surges and spikes through the ground circuit

 · Blue micro-dot LED confirms that connected equipment is powered and protected

 · Impact-resistant case provides added durability for everyday use

 · Backed by a $25,000 Connected Equipment Guarantee



Technical Context

The P2WUC3 uses Metal Oxide Varistor technology to allow normal current to pass through while redirecting excess surge energy away from connected electronics. This helps protect small electronics, personal computers, and mobile devices from voltage spikes caused by AC power disturbances.

The three USB-C ports make the unit especially useful for charging multiple mobile devices in one location without occupying the AC outlets.



Installation Notes

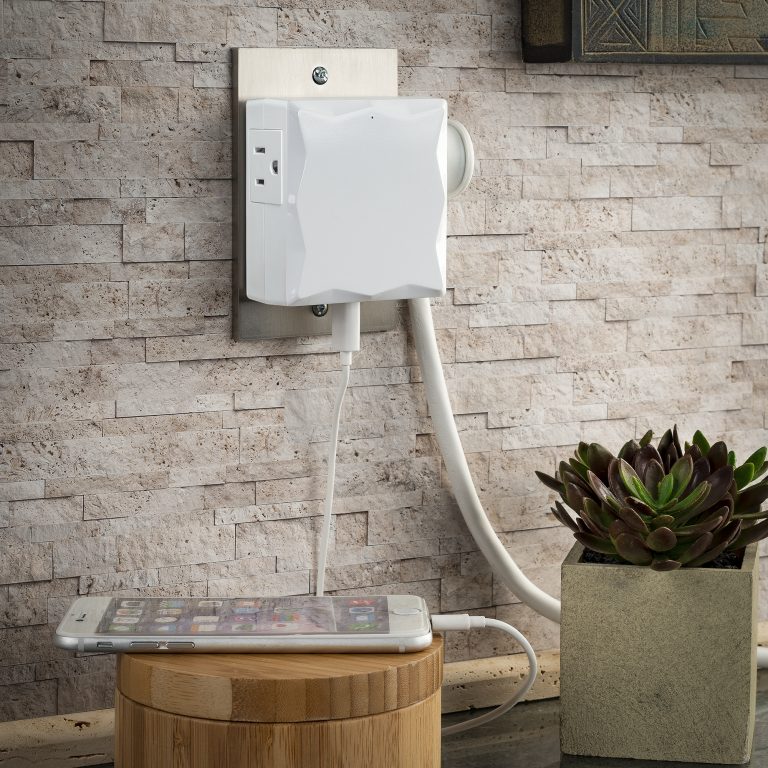

The P2WUC3 plugs directly into a standard wall outlet and is intended for indoor use. Its low-profile wall tap design is suitable for modern living spaces, desks, kitchens, bedrooms, and other locations where compact power access and USB-C charging are needed.

Input
Cord LengthWalltap
Input Plug TypeNEMA 5-15P
Input Voltage125 VAC
Maximum Input Current15A
Plug StyleWall Tap
Output
Outlet Type2 – NEMA 5-15R
Outlets – Total2
USB Charge PortYes
USB Charge Port Amperage6 Amps (Shared)
USB Charge Port Quantity3
USB Charge Port StandardType C
USB Charge Port Type3 Type C
USB Charge Port Voltage5 VDC
USB Charge Port Watts30 Watts
Surge Protection & Filtering
Clamping Voltage900V (H-N)
Coax Protection RG6None
EMI/RFI FiltrationNo
Maximum Surge Current15000 A
Maximum Surge Current H-GN/A
Maximum Surge Current H-N15000 A
Maximum Surge Current N-GN/A
Maximum Surge Voltage6000 V
Response Time<1 Nanosecond
Surge Suppression (Joules)500 J
Physical
ColorWhite
Form Factors SupportedDirect Plug
Material of ConstructionPlastic
Dimensions
Physical Dimensions – (WxHxD) (cm)5.97 x 6.05 x 8.33 (cm)
Physical Dimensions – (WxHxD) (in)2.35 x 2.38 x 3.28 (in)
Physical Dimensions – (WxHxD) (mm)60 x 60 x 83 (mm)
Physical Weight (kg)0.16
Physical Weight (lb)0.35
Dimensions – Shipping
Shipping – Weight (kg)0.18
Shipping – Weight (lb)0.4
Shipping Dimensions – (WxHxD) (cm)10.16 x 12.07 x 6.99 (cm)
Shipping Dimensions – (WxHxD) (in)4.0 x 4.75 x 2.75 (in)
Shipping Dimensions – (WxHxD) (mm)101.6 x 120.65 x 69.85 (mm)
Certifications
EnvironmentalRoHS Compliant
SafetyETL US
UL498A
UL1449
UL1310
FCC
DOE VI
CEC
Warranty
CEG Amount$25000
Connected Equipment GuaranteeLifetime
Product Warranty1 Year Limited Warranty
